Augmentation genioplasty using discarded bone fragments following proximal segment osteotomy of the ramus in intraoral vertical ramus osteotomy (IVRO).

Abstract

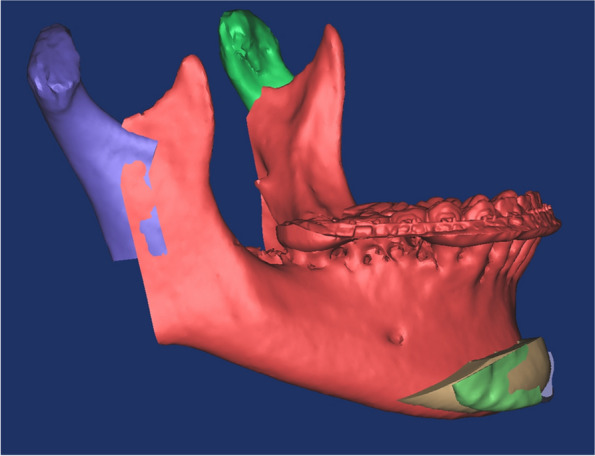

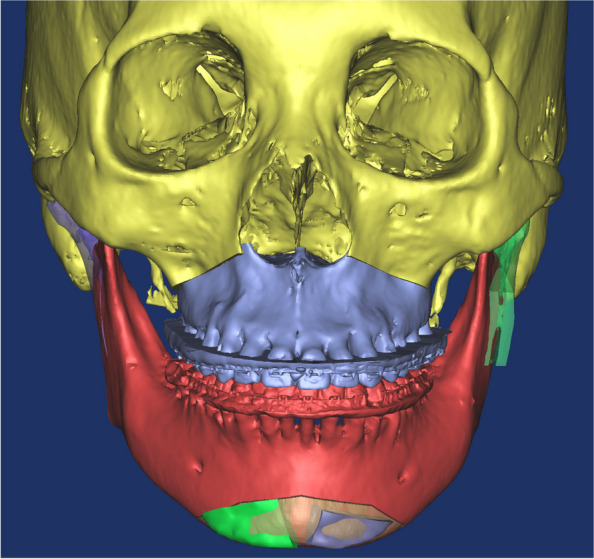

Background: Based on a three-dimensional (3D) orthognathic simulation, this technical report introduces a method for augmentation genioplasty using a proximal bone fragment of the mandible, which is typically discarded in intraoral vertical ramus osteotomy (IVRO).

Results: A 43-year-old female patient diagnosed with Class III malocclusion, presenting with a protruding mandible and long facial height, underwent surgical treatment. The surgical plan involved mandibular setback position using IVRO and augmentation genioplasty. The 3D orthognathic surgery including augmentation genioplasty simulation was performed. An excessively elongated proximal segment was sectioned following IVRO. The inferior part of the sectioned proximal bone fragment of the mandible was positioned to align with the requirements of advancement genioplasty. After ensuring that the placement of the fragment matched that of the simulated surgery, each bone fragment was fixed. At 1.5 years post-surgery, the grafted bone on the augmentation genioplasty was well maintained, with slight bone resorption.

Conclusions: Augmentation genioplasty using the proximal bone fragment of the mandible, which is typically discarded in IVRO, reduces the surgical complications associated with chin osteotomy. When a secondary genioplasty is required, genioplasty with osteotomy, movement of the cut bone fragments, partial bone-shaving osteotomy, and additional bone grafting are viable options.
