Ablation mechanism of Cf/(Ti0.2Zr0.2Hf0.2Nb0.2Ta0.2)C-SiC composite during plasma ablation above 2000 °C

IF 11.2 1区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Feiyan Cai, Dewei Ni, Zhengyang Zhou, Bowen Chen, Xuegang Zou, Le Gao, Ping He, Yusheng Ding, Xiangyu Zhang, Shaoming Dong
{"title":"Ablation mechanism of Cf/(Ti0.2Zr0.2Hf0.2Nb0.2Ta0.2)C-SiC composite during plasma ablation above 2000 °C","authors":"Feiyan Cai, Dewei Ni, Zhengyang Zhou, Bowen Chen, Xuegang Zou, Le Gao, Ping He, Yusheng Ding, Xiangyu Zhang, Shaoming Dong","doi":"10.1016/j.jmst.2024.06.031","DOIUrl":null,"url":null,"abstract":"<p>Air plasma ablation behavior of C<sub>f</sub>/(Ti<sub>0.2</sub>Zr<sub>0.2</sub>Hf<sub>0.2</sub>Nb<sub>0.2</sub>Ta<sub>0.2</sub>)C-SiC composite was studied systematically with the surface temperature above 2000 °C at the ablation center. It presents a linear recession rate of 0.15 μm/s and a mass recession rate of 2.05 mg/s after ablation at 4 MW/m<sup>2</sup> (2000°C) for 300 s. Associated with the temperature gradient of the ablation surface, the oxidation products at different locations mainly consist of (TiZrHfNbTa)O<em><sub>x</sub></em>, (Zr<em><sub>x</sub></em>Hf<sub>1–</sub><em><sub>x</sub></em>)<sub>6</sub>(Nb<sub>y</sub>Ta<sub>1–</sub><em><sub>y</sub></em>)<sub>2</sub>O<sub>17</sub>, Ti(Nb<em><sub>x</sub></em>Ta<sub>1–</sub><em><sub>x</sub></em>)<sub>2</sub>O<sub>7</sub>, (Hf<em><sub>x</sub></em>Zr<sub>1–</sub><em><sub>x</sub></em>)SiO<sub>4</sub>, and SiO<sub>2</sub>. Due to the synergistic effect of the multi-component oxides, oxidation products form a protective structure composed of high melting point oxide skeleton filled with relatively low melting point phases. It retards oxygen inward diffusion and prevents the composite fragmentation caused by plasma mechanical scouring. It is believed that the results would be helpful for further improving the ablation resistance by component design of high entropy ceramics and their composites.</p>","PeriodicalId":16154,"journal":{"name":"Journal of Materials Science & Technology","volume":"81 1","pages":""},"PeriodicalIF":11.2000,"publicationDate":"2024-07-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Science & Technology","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1016/j.jmst.2024.06.031","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Air plasma ablation behavior of Cf/(Ti0.2Zr0.2Hf0.2Nb0.2Ta0.2)C-SiC composite was studied systematically with the surface temperature above 2000 °C at the ablation center. It presents a linear recession rate of 0.15 μm/s and a mass recession rate of 2.05 mg/s after ablation at 4 MW/m2 (2000°C) for 300 s. Associated with the temperature gradient of the ablation surface, the oxidation products at different locations mainly consist of (TiZrHfNbTa)Ox, (ZrxHf1–x)6(NbyTa1–y)2O17, Ti(NbxTa1–x)2O7, (HfxZr1–x)SiO4, and SiO2. Due to the synergistic effect of the multi-component oxides, oxidation products form a protective structure composed of high melting point oxide skeleton filled with relatively low melting point phases. It retards oxygen inward diffusion and prevents the composite fragmentation caused by plasma mechanical scouring. It is believed that the results would be helpful for further improving the ablation resistance by component design of high entropy ceramics and their composites.

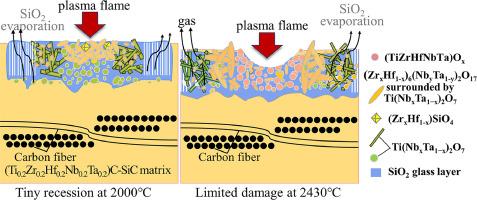

Abstract Image

Cf/(Ti0.2Zr0.2Hf0.2Nb0.2Ta0.2)C-SiC 复合材料在 2000 ℃ 以上等离子体烧蚀过程中的烧蚀机理
在烧蚀中心表面温度高于 2000°C 的条件下,对 Cf/(Ti0.2Zr0.2Hf0.2Nb0.2Ta0.2)C-SiC 复合材料的空气等离子体烧蚀行为进行了系统研究。在 4 MW/m2 (2000°C) 下烧蚀 300 秒后,其线性衰退率为 0.15 μm/s,质量衰退率为 2.05 mg/s。与烧蚀表面的温度梯度有关,不同位置的氧化产物主要包括 (TiZrHfNbTa)Ox、(ZrxHf1-x)6(NbyTa1-y)2O17、Ti(NbxTa1-x)2O7、(HfxZr1-x)SiO4 和 SiO2。由于多组分氧化物的协同作用,氧化产物形成了由高熔点氧化物骨架和相对低熔点相填充组成的保护结构。它能阻止氧气向内扩散,防止等离子体机械冲刷造成的复合材料破碎。相信这些结果将有助于通过高熵陶瓷及其复合材料的部件设计进一步提高抗烧蚀性能。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
