Abstract
Background: Acute otitis media (AOM) causes inflammation and hearing loss. Ventilation tubes are key in treatment. 3D printing improves prostheses in otorhinolaryngology, offering precision and greater adaptability.

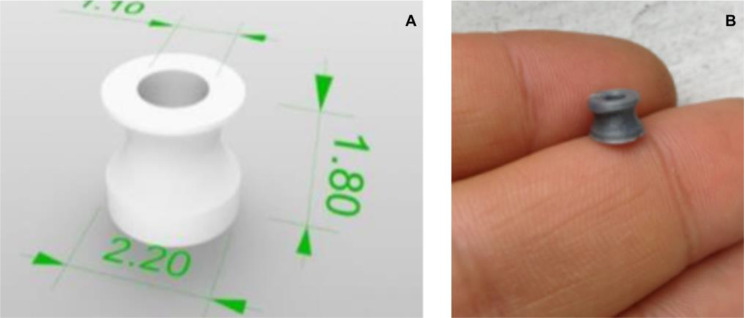

Materials and methods: An experimental study was conducted with Wistar rats from July to December 2020. 3D tympanostomy tube models were designed, with technical specifications and tests performed on inexpensive 3D printers. The tympanostomy tube was inserted endoscopically.
Results: Procedures were performed on five rats with implants in both ears. Pre-intervention pathologies, such as atical retraction and glue ear, were found. The PLA-printed tympanostomy tube showed improvement after adjustments. Histopathological results revealed significant middle and inner ear damage.
Conclusion: In our study, the design and 3D printing of implants fulfilled the desired functions when modified, with a height of 5 mm. Complications included PLA degradation and ear damage. There were no adverse events during observation, highlighting the need for further research on 3D-printed implants.
