Assessment of Bone Thickness at the Infra Zygomatic Crest Region for Various Orthodontic Miniscrew Implant (OMSI) Insertion Angles: A Cone-Beam Computed Tomographic Study.

Abstract

Objective: To evaluate the infrazygomatic crest (IZC) bone and develop guidelines for the optimum placement of orthodontic miniscrew implants (OMSIs) along the distobuccal root of the permanent maxillary first molar.

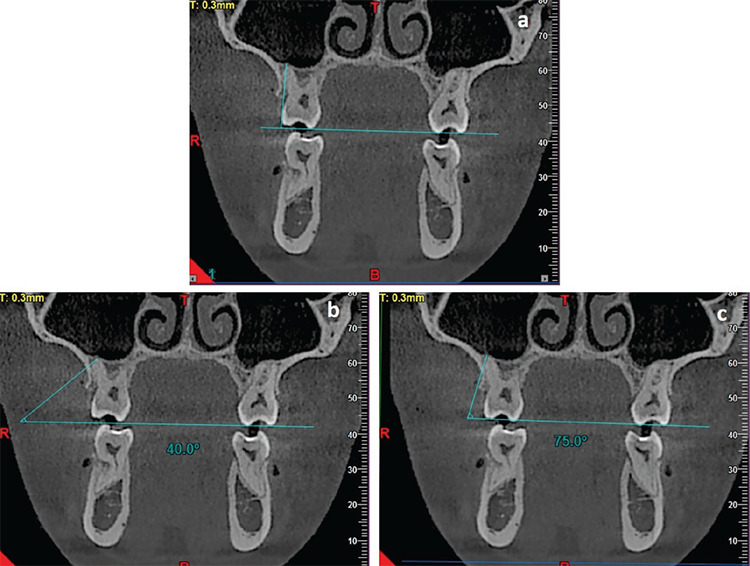

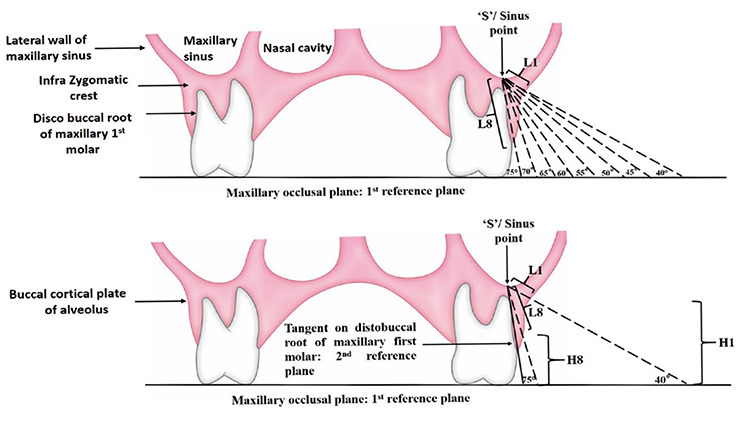

Methods: Bone thickness of the IZC region of 50 young adults (25 males and 25 females) aged 18-30 years were evaluated using cone-beam computed tomography images. The infrazygomatic bone thickness along the distobuccal root of the permanent maxillary first molar was assessed at various insertion angles (40° to 75° i.r.t the maxillary occlusal plane) with an increment of 5°. Student's t-test was used to compare the IZC bone thickness and height at the orthodontic miniscrew insertion site for males and females on the right and left sides.

Results: The bone thickness of the IZC region above the distobuccal root of the permanent maxillary first molar was estimated between 4.39±0.25 mm and 9.03±0.45 mm for insertion angles from 40° to 75° to the maxillary occlusal plane. The corresponding OMSI insertion heights were 17.71±0.61 mm to 13.69±0.75 mm, respectively, above the maxillary occlusal plane. There were statistically significant gender and side-wise variations in bone thickness at the IZC area and insertion height.

Conclusion: The safe position for OMSI placement at the IZC was 13.69-16 mm from the maxillary occlusal plane with an insertion angle between 55° and 75°. These parameters provide the optimum placement of OMSIs along the distobuccal root of the permanent maxillary first molar.
