Computer-aided design and 3D printing for a stable construction of segmental bone defect model in Beagles: a short term observation.

Abstract

Objective: Segmental bone defect animal studies require stable fixation which is a continuous experimental challenge. Large animal models are comparable to the human bone, but with obvious drawbacks of housing and costs. Our study aims to utilize CAD and 3D printing in the construction of a stable and reproducible segmental bone defect animal mode.

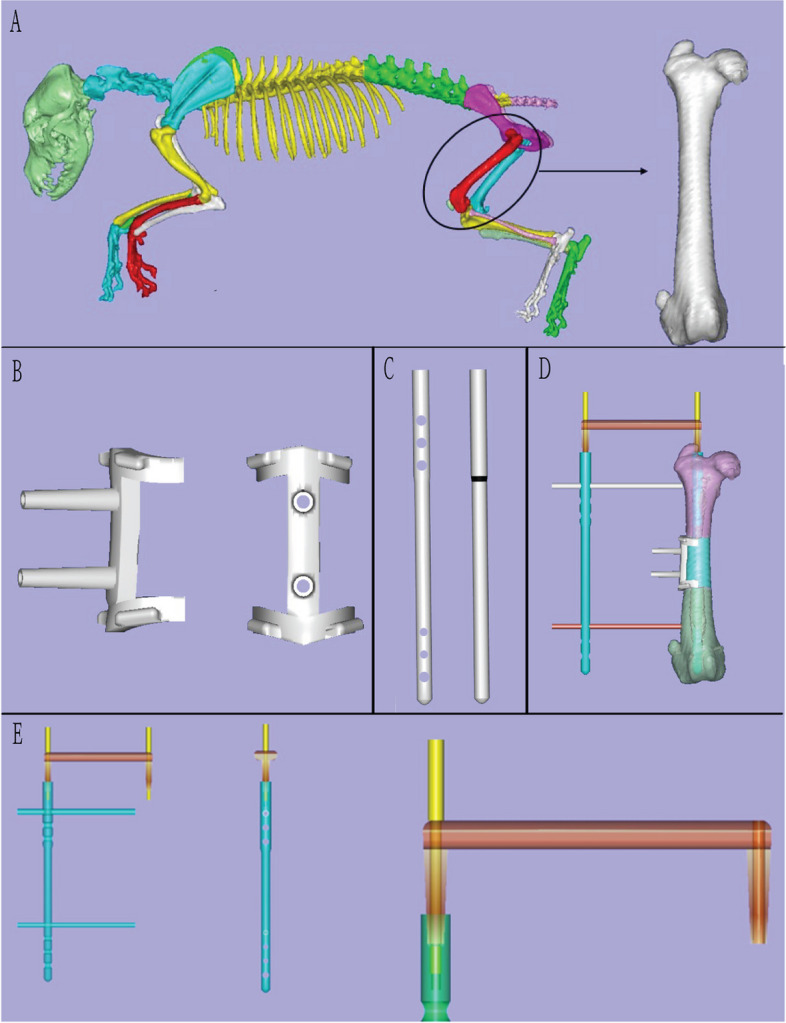

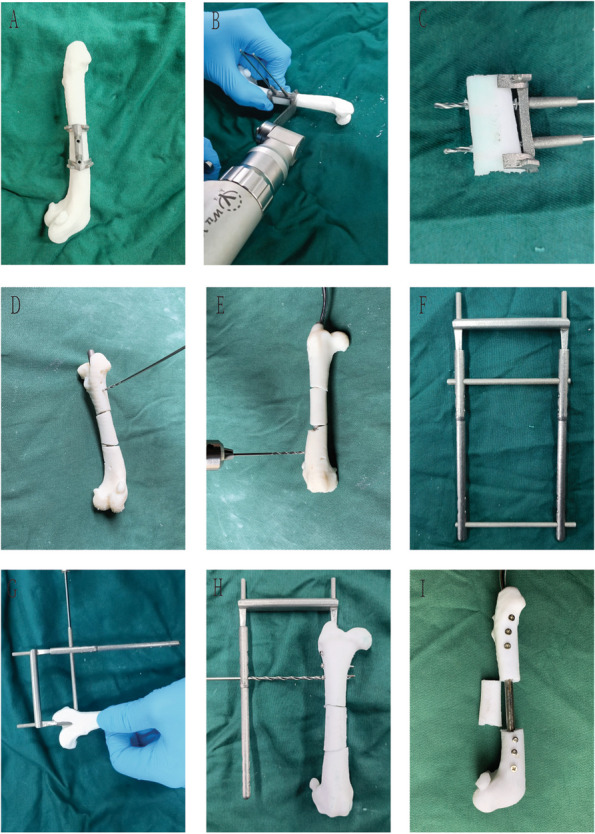

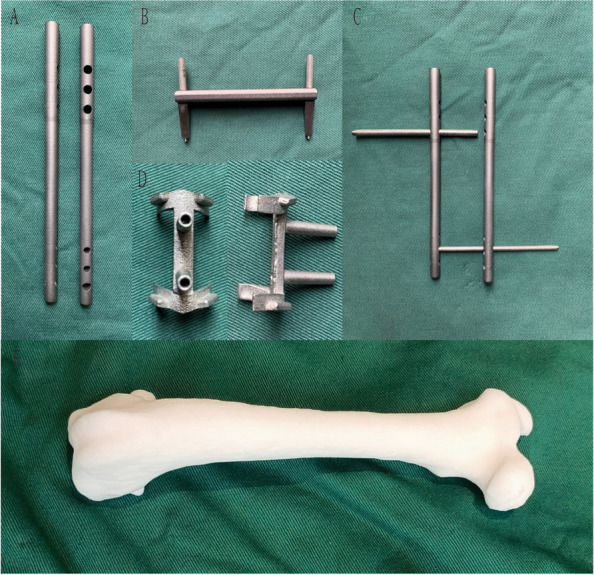

Methods: CAD-aided 3D printed surgical instruments were incorporated into the construction of the animal model through preoperative surgical emulation. 20 3D printed femurs were divided into either experimental group using 3D surgical instruments or control group. In Vitro surgical time and accuracy of fixation were analysed and compared between the two groups. A mature surgical plan using the surgical instruments was then utilized in the construction of 3 segmental bone defect Beagle models in vivo. The Beagles were postoperatively assessed through limb function and imaging at 1, 2 and 3 months postoperatively.

Results: In vitro experiments showed a significant reduction in surgical time from 40.6 ± 14.1 (23-68 min) to 26 ± 4.6 (19-36 min) (n = 10, p < 0.05) and the accuracy of intramedullary fixation placement increased from 71.6 ± 23.6 (33.3-100) % to 98.3 ± 5.37 (83-100) %, (n = 30, p < 0.05) with the use of CAD and 3D printed instruments. All Beagles were load-bearing within 1 week, and postoperative radiographs showed no evidence of implant failure.

Conclusion: Incorporation of CAD and 3D printing significantly increases stability, while reducing the surgical time in the construction of the animal model, significantly affecting the success of the segmental bone defect model in Beagles.
