Target-driven cascade amplified assembly of covalent organic frameworks on tetrahedral DNA nanostructure with multiplex recognition domains for ultrasensitive detection of microRNA

Abstract

Background

MicroRNA (miRNA) emerges as important cancer biomarker, accurate detection of miRNA plays an essential role in clinical sample analysis and disease diagnosis. However, it remains challenging to realize highly sensitive detection of low-abundance miRNA. Traditional detection methods including northern blot and real-time PCR have realized quantitative miRNA detection. However, these detection methods are involved in sophisticated operation and expensive instruments. Therefore, the development of novel sensing platform with high sensitivity and specificity for miRNA detection is urgently demanded for disease diagnosis.

Results

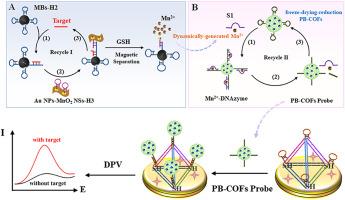

In this work, a novel electrochemical biosensor was constructed for miRNA detection based on target-driven cascade amplified assembly of electroactive covalent organic frameworks (COFs) on tetrahedral DNA nanostructure with multiplex recognition domains (m-TDN). COFs were employed as nanocarriers of electroactive prussian blue (PB) molecules by the “freeze-drying-reduction” method without the use of DNA as gatekeeper, which was simple, mild and efficient. The target-triggered catalytic hairpin assembly (CHA) and glutathione reduction could convert low-abundance miRNA into a large amount of Mn²⁺. Without the addition of exogenous Mn²⁺, the dynamically-generated Mn²⁺-powered DNAzyme cleavage process induced abundant PB-COFs probe assembled on the four recognition domains of m-TDN, resulting in significantly signal output. Using miRNA-182-5p as the model target, the proposed electrochemical biosensor achieved ultrasensitive detection of miRNA-182-5p in the range of 10 fM-100 nM with a detection limit of 2.5 fM.

Significance and novelty

Taking advantages of PB-COFs probe as the enhanced signal labels, the integration of CHA, Mn²⁺-powered DNAzyme and m-TDN amplification strategy significantly improved the sensitivity and specificity of the biosensor. The designed sensing platform was capable of miRNA detection in complex samples, which provided a new idea for biomarker detection, holding promising potential in clinical diagnosis and disease screening.
