Development of a Green and Sustainable Manufacturing Process for a Key Intermediate to Nemtabrutinib (MK-1026): Sequential Deprotonation–Lithiation as a Batch–Flow Process

IF 3.5 3区 化学 Q2 CHEMISTRY, APPLIED
Douglas A. L. Otte*, Reed T. Larson*, Embarek Alwedi, Travis Armiger, Yonggang Chen, Cheol K. Chung, James Corry, Richard Desmond, Patrick S. Fier, Robert D. Franklin, Erik D. Guetschow, Jackson R. Hall, Holst M. Halsey, Clara Hartmanshenn, Lisa Jellett, Nadine Kuhl, François Lévesque, Jonathan P. McMullen, Pratiq A. Patel, Mellie June Paulines, Hong Ren, Vailankanni L. Rodrigues, Serge Ruccolo, Lushi Tan, David A. Thaisrivongs and Kai-Jiong Xiao,
{"title":"Development of a Green and Sustainable Manufacturing Process for a Key Intermediate to Nemtabrutinib (MK-1026): Sequential Deprotonation–Lithiation as a Batch–Flow Process","authors":"Douglas A. L. Otte*,&nbsp;Reed T. Larson*,&nbsp;Embarek Alwedi,&nbsp;Travis Armiger,&nbsp;Yonggang Chen,&nbsp;Cheol K. Chung,&nbsp;James Corry,&nbsp;Richard Desmond,&nbsp;Patrick S. Fier,&nbsp;Robert D. Franklin,&nbsp;Erik D. Guetschow,&nbsp;Jackson R. Hall,&nbsp;Holst M. Halsey,&nbsp;Clara Hartmanshenn,&nbsp;Lisa Jellett,&nbsp;Nadine Kuhl,&nbsp;François Lévesque,&nbsp;Jonathan P. McMullen,&nbsp;Pratiq A. Patel,&nbsp;Mellie June Paulines,&nbsp;Hong Ren,&nbsp;Vailankanni L. Rodrigues,&nbsp;Serge Ruccolo,&nbsp;Lushi Tan,&nbsp;David A. Thaisrivongs and Kai-Jiong Xiao,&nbsp;","doi":"10.1021/acs.oprd.3c00510","DOIUrl":null,"url":null,"abstract":"<p >Nemtabrutinib (MK-1026) is a novel oral Bruton’s tyrosine kinase (BTK) inhibitor for treatment of B-cell cancers. An initial synthetic supply route to generate ketone <b>3</b> relied on the generation of a highly reactive transient intermediate and the use of <i>n</i>-butyllithium. Cryogenic temperatures (−60 °C) were also required to achieve a modest 61% yield, with one major impurity, resulting from dehalogenation, accounting for the majority of the mass balance. An alternative process was developed to increase the yield and decrease the dependence on cryogenic temperatures, and this advancement was critical to the long-term robustness of the commercial process. Key advancements included performing the requisite deprotonation and metalation steps sequentially and performing the metalation and quench steps in flow. The final flow process was rapidly scaled from grams to tens of kilograms and has been successfully executed in a production facility.</p>","PeriodicalId":55,"journal":{"name":"Organic Process Research & Development","volume":"28 5","pages":"1402–1410"},"PeriodicalIF":3.5000,"publicationDate":"2024-05-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Organic Process Research & Development","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.oprd.3c00510","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, APPLIED","Score":null,"Total":0}
引用次数: 0

Abstract

Nemtabrutinib (MK-1026) is a novel oral Bruton’s tyrosine kinase (BTK) inhibitor for treatment of B-cell cancers. An initial synthetic supply route to generate ketone 3 relied on the generation of a highly reactive transient intermediate and the use of n-butyllithium. Cryogenic temperatures (−60 °C) were also required to achieve a modest 61% yield, with one major impurity, resulting from dehalogenation, accounting for the majority of the mass balance. An alternative process was developed to increase the yield and decrease the dependence on cryogenic temperatures, and this advancement was critical to the long-term robustness of the commercial process. Key advancements included performing the requisite deprotonation and metalation steps sequentially and performing the metalation and quench steps in flow. The final flow process was rapidly scaled from grams to tens of kilograms and has been successfully executed in a production facility.

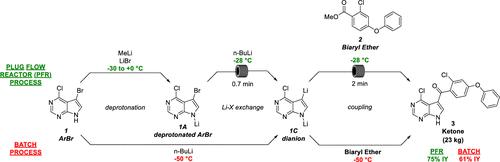

Abstract Image

Abstract Image

开发 Nemtabrutinib (MK-1026) 关键中间体的绿色可持续生产工艺:批量流式连续质子化-石硫酸化工艺
Nemtabrutinib (MK-1026) 是一种新型口服布鲁顿酪氨酸激酶 (BTK) 抑制剂,用于治疗 B 细胞癌症。生成酮 3 的最初合成供应路线依赖于高活性瞬时中间体的生成和正丁基锂的使用。此外,还需要在低温(-60 °C)下才能达到 61% 的产率,而脱卤产生的一种主要杂质占了质量平衡的大部分。为了提高产量并降低对低温的依赖性,我们开发了一种替代工艺,这一进步对商业工艺的长期稳健性至关重要。关键的进步包括依次执行必要的去质子化和金属化步骤,以及在流动过程中执行金属化和骤冷步骤。最终的流动工艺规模从几克迅速扩大到几十公斤,并已在生产设施中成功实施。
