High-performance and durable anion-exchange membrane water electrolysers with high-molecular-weight polycarbazole-based anion-conducting polymer†

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Sungjun Kim, Seok Hwan Yang, Sang-Hun Shin, Hye Jin Cho, Jung Kyu Jang, Tae Hoon Kim, Seong-Geun Oh, Tae-Ho Kim, HyukSu Han and Jang Yong Lee
{"title":"High-performance and durable anion-exchange membrane water electrolysers with high-molecular-weight polycarbazole-based anion-conducting polymer†","authors":"Sungjun Kim, Seok Hwan Yang, Sang-Hun Shin, Hye Jin Cho, Jung Kyu Jang, Tae Hoon Kim, Seong-Geun Oh, Tae-Ho Kim, HyukSu Han and Jang Yong Lee","doi":"10.1039/D4EE01003E","DOIUrl":null,"url":null,"abstract":"<p >Anion-exchange membrane water electrolysis is a promising technology for economical green hydrogen production; however, the corresponding industrial applications are limited by the lack of reliable polymer electrolytes. To address this problem, we developed chain-extender-derived high-molecular-weight hexyltrimethylammonium-tethered polycarbazoles (HQPC-TMA-<em>x</em>'s) with compelling membrane characteristics, including high ionic conductivity, mechanical robustness, and high alkaline stability. Owing to its polycarbazole backbone, HQPC-TMA-<em>x</em> alleviated the problems due to ionomer adsorption on the electrode. In the single-cell configuration, the best-performing polymer (HQPC-TMA-2.4) achieved an unprecedented current density of 14.6 A cm<small><sup>−2</sup></small> at 2.0 V with a Ni–Fe alloy anode and low-cost cell hardware, additionally showing superior pure-water-electrolysis and direct-seawater-electrolysis performances. HQPC-TMA-2.4 exhibited <em>in situ</em> durability at a high current density of 1.0 A cm<small><sup>−2</sup></small> for 1000 h with low irreversible degradation rates of 52 and 6 μV h<small><sup>−1</sup></small> for platinum group metal (PGM) and PGM-free cells, respectively, demonstrating the reliability of this polymer in practical settings.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 15","pages":" 5399-5409"},"PeriodicalIF":30.8000,"publicationDate":"2024-04-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/ee/d4ee01003e","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Anion-exchange membrane water electrolysis is a promising technology for economical green hydrogen production; however, the corresponding industrial applications are limited by the lack of reliable polymer electrolytes. To address this problem, we developed chain-extender-derived high-molecular-weight hexyltrimethylammonium-tethered polycarbazoles (HQPC-TMA-x's) with compelling membrane characteristics, including high ionic conductivity, mechanical robustness, and high alkaline stability. Owing to its polycarbazole backbone, HQPC-TMA-x alleviated the problems due to ionomer adsorption on the electrode. In the single-cell configuration, the best-performing polymer (HQPC-TMA-2.4) achieved an unprecedented current density of 14.6 A cm−2 at 2.0 V with a Ni–Fe alloy anode and low-cost cell hardware, additionally showing superior pure-water-electrolysis and direct-seawater-electrolysis performances. HQPC-TMA-2.4 exhibited in situ durability at a high current density of 1.0 A cm−2 for 1000 h with low irreversible degradation rates of 52 and 6 μV h−1 for platinum group metal (PGM) and PGM-free cells, respectively, demonstrating the reliability of this polymer in practical settings.

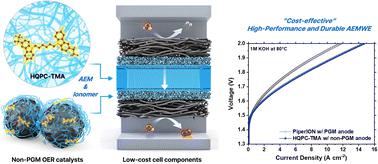

Abstract Image

Abstract Image

使用高分子量聚咔唑基阴离子传导聚合物的高性能耐用阴离子交换膜水电解槽
阴离子交换膜水电解是一种经济的绿色制氢技术,前景广阔;然而,由于缺乏可靠的聚合物电解质,相应的工业应用受到了限制。为了解决这个问题,我们开发了链延伸剂衍生的高分子量己基三甲基铵系聚咔唑(HQPC-TMA-x's),它具有令人信服的膜特性,包括高离子电导率、机械坚固性和高碱性稳定性。由于具有聚咔唑骨架,HQPC-TMA-x 可减轻电极上的离子吸附问题。在单电池配置中,性能最好的聚合物(HQPC-TMA-2.4)在使用镍铁合金阳极和低成本电池硬件的情况下,在 2.0 V 电压下达到了前所未有的 14.6 A cm-2 电流密度,此外还显示出卓越的纯水电解和直接海水电解性能。在 1.0 A cm-2 的高电流密度下,HQPC-TMA-2.4 的原位耐久性可持续 1000 小时,铂族金属(PGM)电池和无铂族金属(PGM)电池的不可逆降解率分别为 52 和 6 μV h-1,证明了这种聚合物在实际应用中的可靠性。
