Nanoscale MOF-74-based QCM gas sensor for CO2 detection at room temperature

Abstract

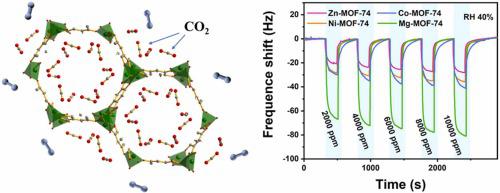

CO₂ is one of the main components of air, accounting for 0.03–0.04% (300–400 ppm) of the total volume of the atmosphere. CO₂ gas is chemically stable and is an inert gas, which makes the means of detecting it extremely limited. To overcome these challenges, in this paper, nanoscale M-MOF-74 (M=Mg, Ni, Zn, Co) was synthesized by a facile method in a two-hour reaction at room temperature, which combined with a quartz crystal microbalance (QCM) sensor-enabled the detection of CO₂ gas at room temperature. The CO₂ sensing performance of M-MOF-74 coated QCM sensors at room temperature was systematically investigated. The experimental results showed that the Mg-MOF-74 sensor responded to 2000 ppm CO₂ at room temperature with 66, and at the same time, had good linearity, high response/recovery (75 s/50 s), and good selectivity to CO₂. The electrical parameters and quality factor of the QCM were further verified by impedance analysis. In addition, the potential CO₂ adsorption mechanism may be mainly related to the open metal sites in the Mg-MOF-74 material and the synergistic effect of Mg-O bonds. This work confirms that the M-MOF-74 material provides a new avenue for QCM CO₂ sensing, and the sensor is expected to be a potential candidate for CO₂ detection.
