Spatially Confined in Situ Formed Sodiophilic-Conductive Network for High-Performance Sodium Metal Batteries

IF 9.1 1区材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY

Nano Letters Pub Date : 2024-04-24 DOI:10.1021/acs.nanolett.4c00562

Xuan Lu*, Ruochen Chen, Shenyu Shen, Yuyang Li, Hongyang Zhao, Hongkang Wang*, Tiantian Wu, Yaqiong Su, Jianmin Luo, Xiaofei Hu*, Shujiang Ding* and Weiyang Li*,

{"title":"Spatially Confined in Situ Formed Sodiophilic-Conductive Network for High-Performance Sodium Metal Batteries","authors":"Xuan Lu*, Ruochen Chen, Shenyu Shen, Yuyang Li, Hongyang Zhao, Hongkang Wang*, Tiantian Wu, Yaqiong Su, Jianmin Luo, Xiaofei Hu*, Shujiang Ding* and Weiyang Li*, ","doi":"10.1021/acs.nanolett.4c00562","DOIUrl":null,"url":null,"abstract":"The sodium (Na) metal anode encounters issues such as volume expansion and dendrite growth during cycling. Herein, a novel three-dimensional flexible composite Na metal anode was constructed through the conversion-alloying reaction between Na and ultrafine Sb2S3 nanoparticles encapsulated within the electrospun carbon nanofibers (Sb2S3@CNFs). The formed sodiophilic Na3Sb sites and the high Na+-conducting Na2S matrix, coupled with CNFs, establish a spatially confined “sodiophilic-conductive” network, which effectively reduces the Na nucleation barrier, improves the Na+ diffusion kinetics, and suppresses the volume expansion, thereby inhibiting the Na dendrite growth. Consequently, the Na/Sb2S3@CNFs electrode exhibits a high Coulombic efficiency (99.94%), exceptional lifespan (up to 2800 h) at high current densities (up to 5 mA cm–2), and high areal capacities (up to 5 mAh cm–2) in symmetric cells. The coin-type full cells assembled with a Na3V2(PO4)3/C cathode demonstrate significant enhancement in electrochemical performance. The flexible pouch cell achieves an excellent energy density of 301 Wh kg–1.","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"24 18","pages":"5490–5497"},"PeriodicalIF":9.1000,"publicationDate":"2024-04-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.nanolett.4c00562","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

Abstract

The sodium (Na) metal anode encounters issues such as volume expansion and dendrite growth during cycling. Herein, a novel three-dimensional flexible composite Na metal anode was constructed through the conversion-alloying reaction between Na and ultrafine Sb₂S₃ nanoparticles encapsulated within the electrospun carbon nanofibers (Sb₂S₃@CNFs). The formed sodiophilic Na₃Sb sites and the high Na⁺-conducting Na₂S matrix, coupled with CNFs, establish a spatially confined “sodiophilic-conductive” network, which effectively reduces the Na nucleation barrier, improves the Na⁺ diffusion kinetics, and suppresses the volume expansion, thereby inhibiting the Na dendrite growth. Consequently, the Na/Sb₂S₃@CNFs electrode exhibits a high Coulombic efficiency (99.94%), exceptional lifespan (up to 2800 h) at high current densities (up to 5 mA cm^–2), and high areal capacities (up to 5 mAh cm^–2) in symmetric cells. The coin-type full cells assembled with a Na₃V₂(PO₄)₃/C cathode demonstrate significant enhancement in electrochemical performance. The flexible pouch cell achieves an excellent energy density of 301 Wh kg^–1.

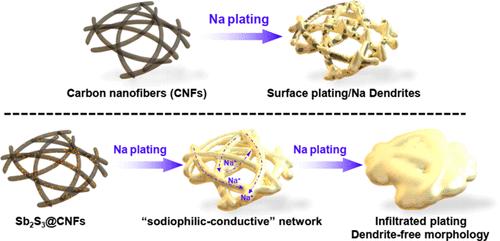

Abstract Image

查看原文本刊更多论文

用于高性能金属钠电池的空间致密原位形成的亲钠导电网络

钠（Na）金属阳极在循环过程中会遇到体积膨胀和枝晶生长等问题。在此，通过 Na 与包裹在电纺碳纳米纤维（Sb2S3@CNFs）中的超细 Sb2S3 纳米颗粒之间的转化合金化反应，构建了一种新型三维柔性复合 Na 金属阳极。所形成的亲钠 3Sb 位点和高 Na+ 传导性的 Na2S 基体与 CNFs 结合，建立了空间封闭的 "亲钠-传导 "网络，从而有效降低了 Na 成核障碍，改善了 Na+ 扩散动力学，抑制了体积膨胀，从而抑制了 Na 树枝状晶的生长。因此，Na/Sb2S3@CNFs 电极具有很高的库仑效率（99.94%），在高电流密度（高达 5 mA cm-2）条件下具有超长的寿命（长达 2800 小时），并且在对称电池中具有很高的电容（高达 5 mAh cm-2）。使用 Na3V2(PO4)3/C 阴极组装的硬币型全电池显著提高了电化学性能。柔性袋状电池的能量密度高达 301 Wh kg-1。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
