Engineering NH2-Cu-NH2 Triple-atom Sites in Defective MOFs for Selective Overall Photoreduction of CO2 into CH3COCH3

Mengrui Zhang, Dan Zhang, Prof. Xu Jing, Baijie Xu, Prof. Chunying Duan
{"title":"Engineering NH2-Cu-NH2 Triple-atom Sites in Defective MOFs for Selective Overall Photoreduction of CO2 into CH3COCH3","authors":"Mengrui Zhang,&nbsp;Dan Zhang,&nbsp;Prof. Xu Jing,&nbsp;Baijie Xu,&nbsp;Prof. Chunying Duan","doi":"10.1002/ange.202402755","DOIUrl":null,"url":null,"abstract":"<p>Selective photoreduction of CO<sub>2</sub> to multicarbon products, is an important but challenging task, due to high CO<sub>2</sub> activation barriers and insufficient catalytic sites for C−C coupling. Herein, a defect engineering strategy for incorporating copper sites into the connected nodes of defective metal–organic framework UiO-66-NH<sub>2</sub> for selective overall photo-reduction of CO<sub>2</sub> into acetone. The Cu<sup>2+</sup> site in well-modified CuN<sub>2</sub>O<sub>2</sub> units served as a trapping site to capture electrons via efficient electron-hole separation, forming the active Cu<sup>+</sup> site for CO<sub>2</sub> reduction. Two NH<sub>2</sub> groups in CuN<sub>2</sub>O<sub>2</sub> unit adsorb CO<sub>2</sub> and cooperated with copper ion to functionalize as a triple atom catalytic site, each interacting with one CO<sub>2</sub> molecule to strengthen the binding of *CO intermediate to the catalytic site. The deoxygenated *CO attached to the Cu site interacted with *CH<sub>3</sub> fixed at one amino group to form the key intermediate CO*-CH<sub>3</sub>, which interacted with the third reduction intermediate on another amino group to produce acetone. Our photocatalyst realizes efficient overall CO<sub>2</sub> reduction to C<sub>3</sub> product acetone CH<sub>3</sub>COCH<sub>3</sub> with an evolution rate of 70.9 μmol g<sub>cat</sub><sup>−1</sup> h<sup>−1</sup> and a selectivity up to 97 % without any adducts, offering a promising avenue for designing triple-atomic sites to producing C<sub>3</sub> product from photosynthesis with water.</p>","PeriodicalId":7803,"journal":{"name":"Angewandte Chemie","volume":"136 18","pages":""},"PeriodicalIF":0.0000,"publicationDate":"2024-03-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie","FirstCategoryId":"1085","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/ange.202402755","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

Abstract

Selective photoreduction of CO2 to multicarbon products, is an important but challenging task, due to high CO2 activation barriers and insufficient catalytic sites for C−C coupling. Herein, a defect engineering strategy for incorporating copper sites into the connected nodes of defective metal–organic framework UiO-66-NH2 for selective overall photo-reduction of CO2 into acetone. The Cu2+ site in well-modified CuN2O2 units served as a trapping site to capture electrons via efficient electron-hole separation, forming the active Cu+ site for CO2 reduction. Two NH2 groups in CuN2O2 unit adsorb CO2 and cooperated with copper ion to functionalize as a triple atom catalytic site, each interacting with one CO2 molecule to strengthen the binding of *CO intermediate to the catalytic site. The deoxygenated *CO attached to the Cu site interacted with *CH3 fixed at one amino group to form the key intermediate CO*-CH3, which interacted with the third reduction intermediate on another amino group to produce acetone. Our photocatalyst realizes efficient overall CO2 reduction to C3 product acetone CH3COCH3 with an evolution rate of 70.9 μmol gcat−1 h−1 and a selectivity up to 97 % without any adducts, offering a promising avenue for designing triple-atomic sites to producing C3 product from photosynthesis with water.

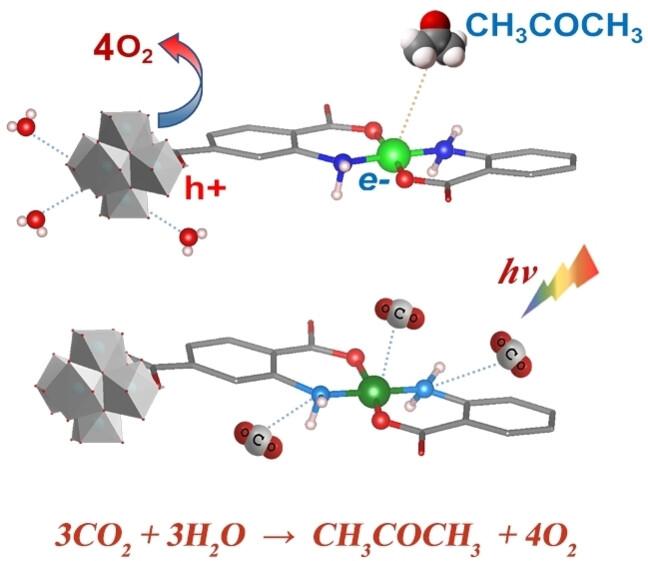

Abstract Image

设计缺陷 MOF 中的 NH2-Cu-NH2 三原子位点,实现 CO2 到 CH3COCH3 的选择性整体光还原
由于二氧化碳活化障碍较高,且 C-C 偶联催化位点不足,因此将二氧化碳选择性光还原为多碳产物是一项重要但极具挑战性的任务。本文提出了一种缺陷工程策略,在有缺陷的金属有机框架 UiO-66-NH2 的连接节点中加入铜位点,以选择性地将 CO2 整体光还原成丙酮。改性良好的 CuN2O2 单元中的 Cu2+ 位点可作为捕获位点,通过高效的电子-空穴分离捕获电子,形成用于二氧化碳还原的活性 Cu+ 位点。CuN2O2 单元中的两个 NH2 基团吸附 CO2,并与铜离子作用形成三原子催化位点,每个 NH2 基团与一个 CO2 分子相互作用,加强了 *CO 中间体与催化位点的结合。附着在 Cu 位点上的脱氧 *CO 与固定在一个氨基上的 *CH3 相互作用,形成关键中间体 CO*-CH3,而 CO*-CH3 又与另一个氨基上的第三个还原中间体相互作用,生成丙酮。我们的光催化剂能将 CO2 还原成 C3 产物丙酮 CH3COCH3,进化率达 70.9 μmol gcat-1 h-1,选择性高达 97%,且不产生任何加成物。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 求助全文
来源期刊
Angewandte Chemie
Angewandte Chemie 化学科学, 有机化学, 有机合成
