Origin of fast charging in hard carbon anodes

IF 60.1 1区材料科学 Q1 ENERGY & FUELS

Nature Energy Pub Date : 2024-01-03 DOI:10.1038/s41560-023-01414-5

Yuqi Li, Alexandros Vasileiadis, Quan Zhou, Yaxiang Lu, Qingshi Meng, Yu Li, Pierfrancesco Ombrini, Jiabin Zhao, Zhao Chen, Yaoshen Niu, Xingguo Qi, Fei Xie, Remco van der Jagt, Swapna Ganapathy, Maria-Magdalena Titirici, Hong Li, Liquan Chen, Marnix Wagemaker, Yong-Sheng Hu

{"title":"Origin of fast charging in hard carbon anodes","authors":"Yuqi Li, Alexandros Vasileiadis, Quan Zhou, Yaxiang Lu, Qingshi Meng, Yu Li, Pierfrancesco Ombrini, Jiabin Zhao, Zhao Chen, Yaoshen Niu, Xingguo Qi, Fei Xie, Remco van der Jagt, Swapna Ganapathy, Maria-Magdalena Titirici, Hong Li, Liquan Chen, Marnix Wagemaker, Yong-Sheng Hu","doi":"10.1038/s41560-023-01414-5","DOIUrl":null,"url":null,"abstract":"Transport electrification and grid storage hinge largely on fast-charging capabilities of Li- and Na-ion batteries, but anodes such as graphite with plating issues drive the scientific focus towards anodes with slopped storage potentials. Here we report fast charging of ampere-hour-level full Na-ion batteries within about 9 minutes for continuous 3,000 cycles based on hard carbon anodes. These anodes, in addition to displaying a sloped storage voltage, provide capacity at a nearly constant voltage just above the plating potential, without observing Na-metal plating under high areal capacity. Comparing the electrochemical behaviour of Li and Na in hard carbon through experimental and computational techniques, a unified storage mechanism relying on the dimensions of wedge nanopores and drawing parallels with underpotential deposition for metals is brought forward, providing a rational guide for achieving fast storage in hard carbon anodes. It is challenging to achieve fast-charging, high-performance Na-ion batteries. This study discusses the origin of fast-charging Na-ion batteries with hard carbon anodes and demonstrates an ampere-hour-level, fast-charging, long-cycle-life cylindrical cell under nearly practical conditions.","PeriodicalId":19073,"journal":{"name":"Nature Energy","volume":"9 2","pages":"134-142"},"PeriodicalIF":60.1000,"publicationDate":"2024-01-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nature Energy","FirstCategoryId":"88","ListUrlMain":"https://www.nature.com/articles/s41560-023-01414-5","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENERGY & FUELS","Score":null,"Total":0}

引用次数: 0

Abstract

Transport electrification and grid storage hinge largely on fast-charging capabilities of Li- and Na-ion batteries, but anodes such as graphite with plating issues drive the scientific focus towards anodes with slopped storage potentials. Here we report fast charging of ampere-hour-level full Na-ion batteries within about 9 minutes for continuous 3,000 cycles based on hard carbon anodes. These anodes, in addition to displaying a sloped storage voltage, provide capacity at a nearly constant voltage just above the plating potential, without observing Na-metal plating under high areal capacity. Comparing the electrochemical behaviour of Li and Na in hard carbon through experimental and computational techniques, a unified storage mechanism relying on the dimensions of wedge nanopores and drawing parallels with underpotential deposition for metals is brought forward, providing a rational guide for achieving fast storage in hard carbon anodes. It is challenging to achieve fast-charging, high-performance Na-ion batteries. This study discusses the origin of fast-charging Na-ion batteries with hard carbon anodes and demonstrates an ampere-hour-level, fast-charging, long-cycle-life cylindrical cell under nearly practical conditions.

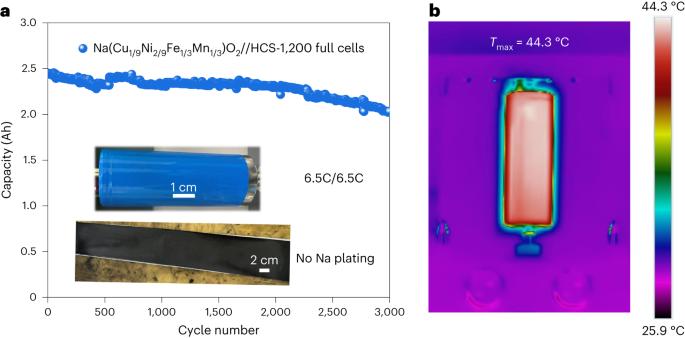

Abstract Image

查看原文本刊更多论文

硬碳阳极快速充电的起源

交通电气化和电网储能在很大程度上取决于锂离子和镍离子电池的快速充电能力，但石墨等阳极存在的电镀问题促使科学界将重点转向具有倾斜储能电位的阳极。在此，我们报告了基于硬碳阳极的安培小时级全纳离子电池在约 9 分钟内连续 3000 次循环的快速充电。这些阳极除了显示出倾斜的存储电压外，还能在略高于电镀电位的近乎恒定的电压下提供容量，而不会在高电容下观察到金属钠电镀现象。通过实验和计算技术比较硬碳中 Li 和 Na 的电化学行为，提出了一种统一的存储机制，该机制依赖于楔形纳米孔的尺寸，并与金属的欠电位沉积相似，为在硬碳阳极中实现快速存储提供了合理的指导。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
