Development of a clinically useful multi-segment kinetic foot model.

IF 2.5 3区医学 Q1 ORTHOPEDICS

Journal of Foot and Ankle Research Pub Date : 2023-11-29 DOI:10.1186/s13047-023-00686-0

Songlin Zhu, Thomas Jenkyn

{"title":"Development of a clinically useful multi-segment kinetic foot model.","authors":"Songlin Zhu, Thomas Jenkyn","doi":"10.1186/s13047-023-00686-0","DOIUrl":null,"url":null,"abstract":"Background: Traditionally, gait analysis studies record the foot as a single rigid segment, leaving movements and loads within the foot undetected. In addition, very few data of multi-segment foot kinetics have been represented in the literature due to measurement and equipment limitations. As a result, this study aims to develop a novel multi-segment kinetic foot model that is clinically feasible and enables both kinematic and kinetic analysis of large patient groups.Results: Outcome measurements include rotation angles of intersegmental dorsi/plantar flexion, inversion/eversion, and internal/external rotation, joint moments, joint powers and the medial longitudinal arch (MLA) height/length ratio. Repeatability of joint motions was calculated using coefficients of multiple correlation. Most joint motions measured by this foot model showed strong within-subject reliability (R > 0.7) in healthy adults. Outcome measures were in agreement with other multi-segment foot models found in the biomechanics literature.Conclusions: This novel multi-segment foot model is able to quantify intersegmental foot kinematics and kinetics and can be a useful tool for research and assessments on clinical populations.","PeriodicalId":49164,"journal":{"name":"Journal of Foot and Ankle Research","volume":"16 1","pages":"86"},"PeriodicalIF":2.5000,"publicationDate":"2023-11-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10685473/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Foot and Ankle Research","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s13047-023-00686-0","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ORTHOPEDICS","Score":null,"Total":0}

引用次数: 0

Abstract

Background: Traditionally, gait analysis studies record the foot as a single rigid segment, leaving movements and loads within the foot undetected. In addition, very few data of multi-segment foot kinetics have been represented in the literature due to measurement and equipment limitations. As a result, this study aims to develop a novel multi-segment kinetic foot model that is clinically feasible and enables both kinematic and kinetic analysis of large patient groups.

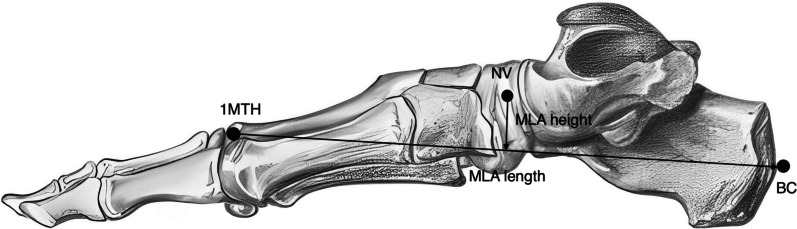

Results: Outcome measurements include rotation angles of intersegmental dorsi/plantar flexion, inversion/eversion, and internal/external rotation, joint moments, joint powers and the medial longitudinal arch (MLA) height/length ratio. Repeatability of joint motions was calculated using coefficients of multiple correlation. Most joint motions measured by this foot model showed strong within-subject reliability (R > 0.7) in healthy adults. Outcome measures were in agreement with other multi-segment foot models found in the biomechanics literature.

Conclusions: This novel multi-segment foot model is able to quantify intersegmental foot kinematics and kinetics and can be a useful tool for research and assessments on clinical populations.

查看原文本刊更多论文

一种临床上有用的多节段足部动力学模型的建立。

传统上，步态分析研究将足部记录为单个刚性部分，使足部的运动和负荷未被检测到。此外，由于测量和设备的限制，文献中很少有多段足部动力学的数据。因此，本研究旨在开发一种新的多节段足部动力学模型，该模型在临床上是可行的，并且能够对大型患者群体进行运动学和动力学分析。结果:结果测量包括节段间背/足底屈曲、内翻/外翻、内旋/外旋旋转角度、关节力矩、关节力量和内侧纵弓(MLA)高度/长度比。采用多重相关系数计算关节运动的重复性。该足部模型测量的大多数关节运动在健康成人中显示出很强的受试者内可靠性(R > 0.7)。结果测量与生物力学文献中发现的其他多节段足部模型一致。结论:这种新颖的多节段足部模型能够量化节段间足部运动学和动力学，可以成为临床人群研究和评估的有用工具。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
