Boosting Electrolytic MnO2–Zn Batteries by a Bromine Mediator

IF 9.1 1区材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY

Nano Letters Pub Date : 2021-10-11 DOI:10.1021/acs.nanolett.1c03319

Xinhua Zheng, Yongchao Wang, Yan Xu, Touqeer Ahmad, Yuan Yuan, Jifei Sun, Ruihao Luo, Mingming Wang, Mingyan Chuai, Na Chen, Taoli Jiang, Shuang Liu, Wei Chen*

{"title":"Boosting Electrolytic MnO2–Zn Batteries by a Bromine Mediator","authors":"Xinhua Zheng, Yongchao Wang, Yan Xu, Touqeer Ahmad, Yuan Yuan, Jifei Sun, Ruihao Luo, Mingming Wang, Mingyan Chuai, Na Chen, Taoli Jiang, Shuang Liu, Wei Chen*","doi":"10.1021/acs.nanolett.1c03319","DOIUrl":null,"url":null,"abstract":"An aqueous electrolytic MnO2–Zn battery with eye-catching Mn2+/MnO2 cathode chemistry has been attracting immense interest for next-generation energy storage devices due to its irreplaceable advantages. However, the limited MnO2 conductivity restricts its long service life at high areal capacities. Here, we report a high-performance electrolytic MnO2–Zn battery via a bromine redox mediator, to enhance its electrochemical performance. The MnO2/Br2–Zn battery displays a high discharge voltage of 1.98 V with a capacity of ～5.8 mAh cm–2. It also shows an excellent rate performance of 20 C with a long-term stability of over 600 cycles. Furthermore, the scaled-up MnO2/Br2–Zn battery with a capacity of ～950 mAh exhibits a stable 100 cycles with a practical cell energy density of ～32.4 Wh kg–1 and an attractively low energy cost of below 15 US$ kWh–1. The design approach can be generalized to other electrodes and battery systems, thus opening up new possibilities for large-scale energy storage.","PeriodicalId":53,"journal":{"name":"Nano Letters","volume":"21 20","pages":"8863–8871"},"PeriodicalIF":9.1000,"publicationDate":"2021-10-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"30","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nano Letters","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.nanolett.1c03319","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 30

Abstract

An aqueous electrolytic MnO₂–Zn battery with eye-catching Mn²⁺/MnO₂ cathode chemistry has been attracting immense interest for next-generation energy storage devices due to its irreplaceable advantages. However, the limited MnO₂ conductivity restricts its long service life at high areal capacities. Here, we report a high-performance electrolytic MnO₂–Zn battery via a bromine redox mediator, to enhance its electrochemical performance. The MnO₂/Br₂–Zn battery displays a high discharge voltage of 1.98 V with a capacity of ～5.8 mAh cm^–2. It also shows an excellent rate performance of 20 C with a long-term stability of over 600 cycles. Furthermore, the scaled-up MnO₂/Br₂–Zn battery with a capacity of ～950 mAh exhibits a stable 100 cycles with a practical cell energy density of ～32.4 Wh kg^–1 and an attractively low energy cost of below 15 US$ kWh^–1. The design approach can be generalized to other electrodes and battery systems, thus opening up new possibilities for large-scale energy storage.

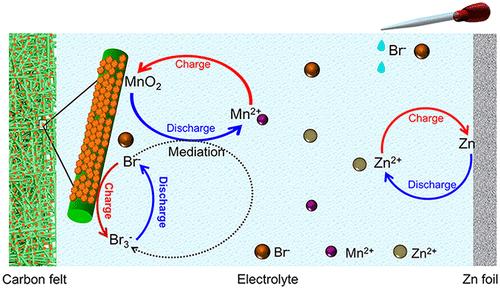

Abstract Image

查看原文本刊更多论文

溴介质对电解MnO2-Zn电池的促进作用

水性电解MnO2 - zn电池具有引人注目的Mn2+/MnO2阴极化学性质，由于其不可替代的优势，已引起下一代储能设备的极大兴趣。然而，有限的MnO2电导率限制了其在高面积容量下的长使用寿命。在这里，我们报道了一种高性能的电解MnO2-Zn电池，通过溴氧化还原介质，以提高其电化学性能。MnO2/ Br2-Zn电池的放电电压高达1.98 V，容量为~5.8 mAh cm-2。它还显示了20℃的优异速率性能，具有超过600次循环的长期稳定性。此外，放大后的容量为~950 mAh的MnO2/ Br2-Zn电池表现出稳定的100次循环，实际电池能量密度为~32.4 Wh kg-1，能量成本低于15美元kWh-1。该设计方法可以推广到其他电极和电池系统，从而为大规模储能开辟了新的可能性。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
