Vortex Formation Times in the Glottal Jet, Measured in a Scaled-Up Model.

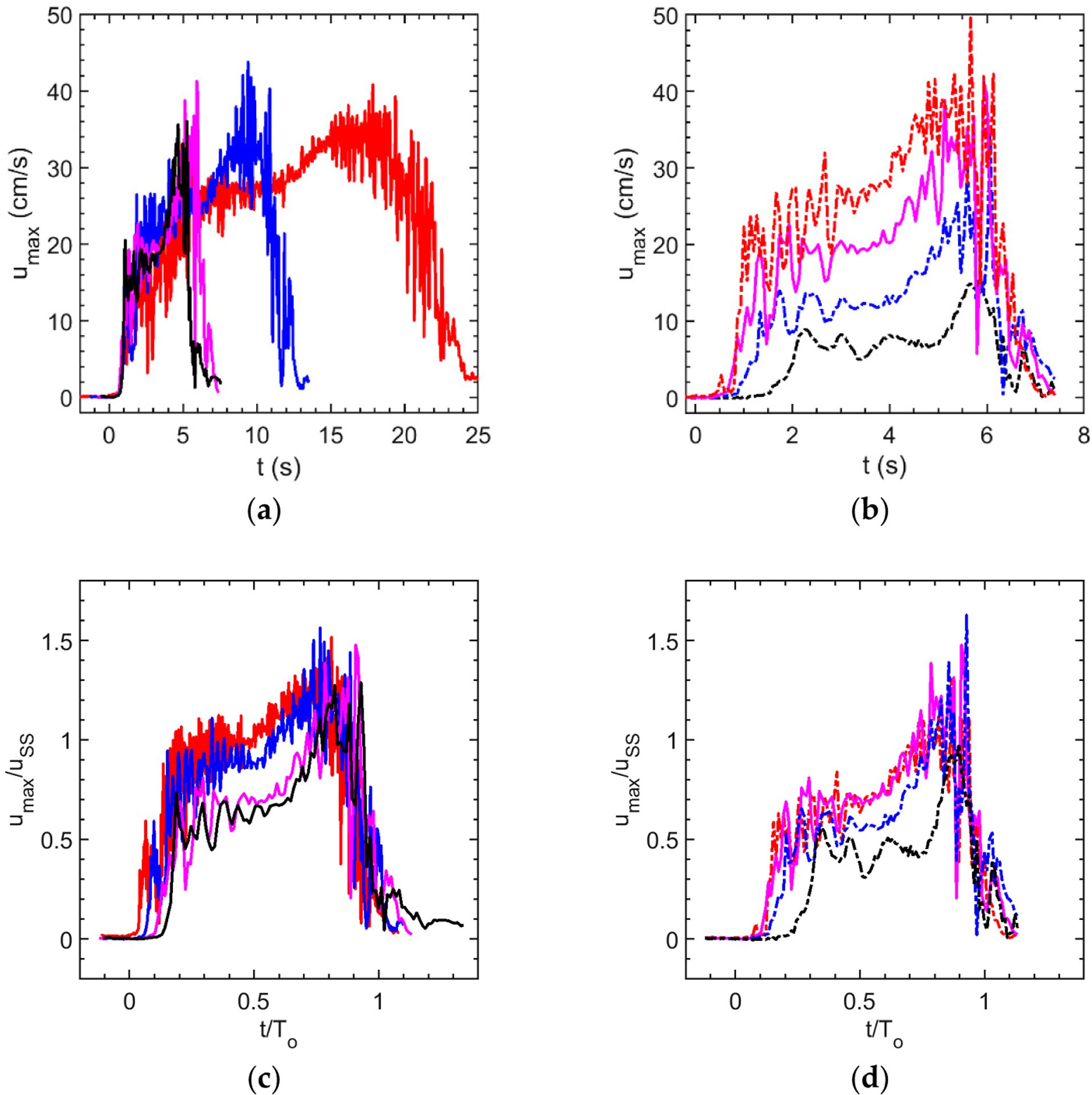

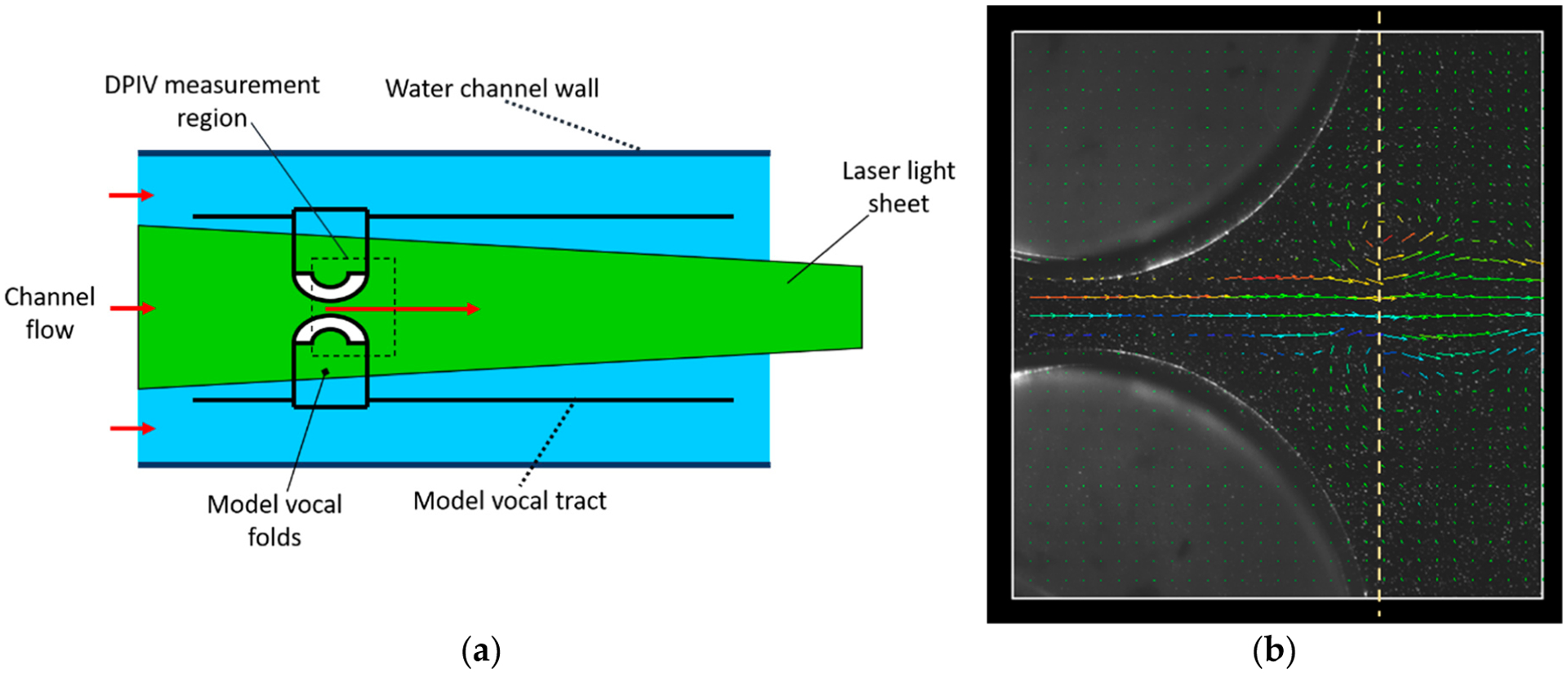

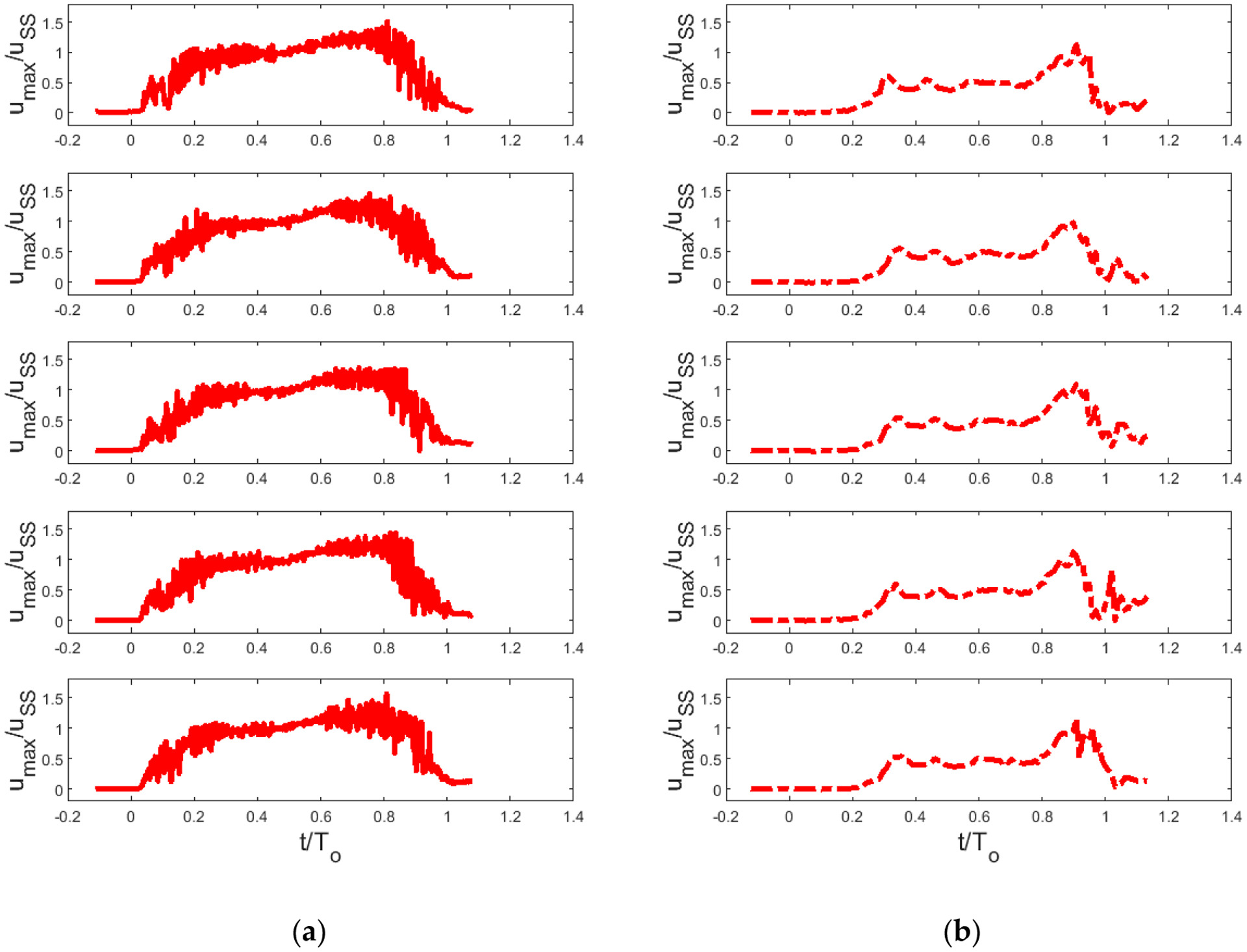

In this paper, the timing of vortex formation on the glottal jet is studied using previously published velocity measurements of flow through a scaled-up model of the human vocal folds. The relative timing of the pulsatile glottal jet and the instability vortices are acoustically important since they determine the harmonic and broadband content of the voice signal. Glottis exit jet velocity time series were extracted from time-resolved planar DPIV measurements. These measurements were acquired at four glottal flow speeds (u _SS = 16.1-38 cm/s) and four glottis open times (T _o = 5.67-23.7 s), providing a Reynolds number range Re = 4100-9700 and reduced vibration frequency f* = 0.01-0.06. Exit velocity waveforms showed temporal behavior on two time scales, one that correlates to the period of vibration and another characterized by short, sharp velocity peaks (which correlate to the passage of instability vortices through the glottis exit plane). The vortex formation time, estimated by computing the time difference between subsequent peaks, was shown to be not well-correlated from one vibration cycle to the next. The principal finding is that vortex formation time depends not only on cycle phase, but varies strongly with reduced frequency of vibration. In all cases, a strong high-frequency burst of vortex motion occurs near the end of the cycle, consistent with perceptual studies using synthesized speech.
