Application of Design of Experiment and Simulation Methods to Liquid Chromatography Analysis of Topical HIV Microbicides Stampidine and HI443.

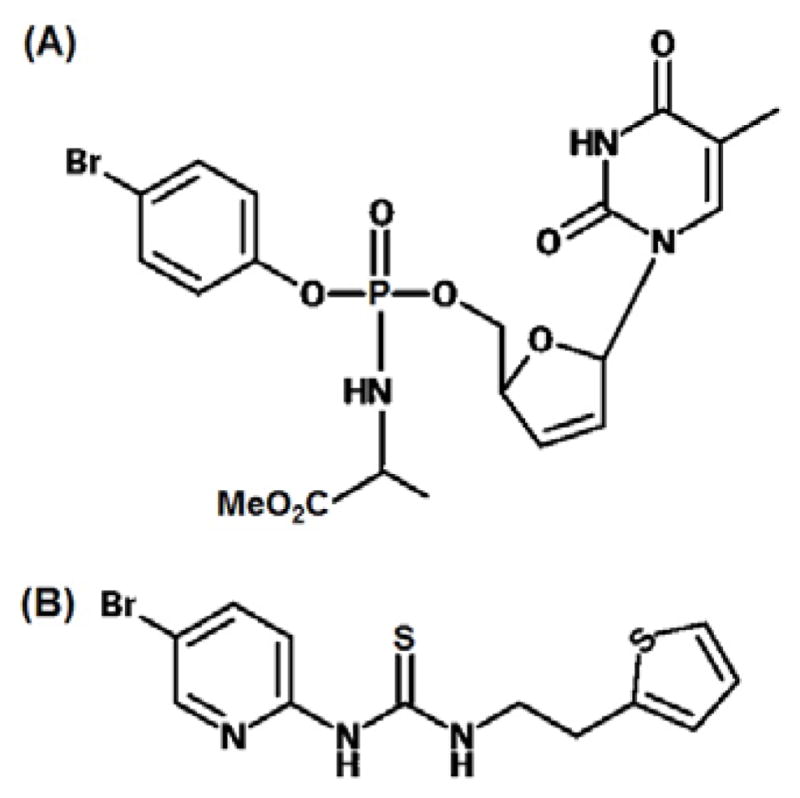

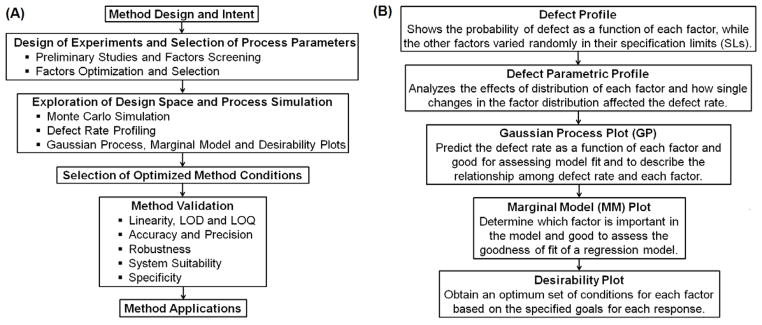

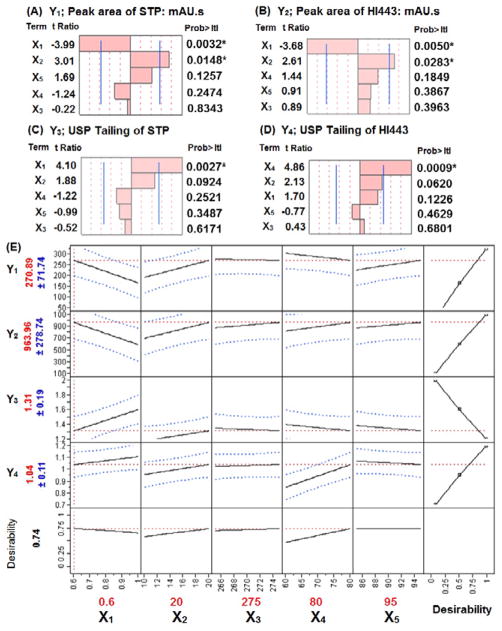

This study intended to determine if experimental design and Monte Carlo simulation methods can be utilized to optimize the liquid chromatography (LC) analysis of active molecules. The method was applied for the simultaneous analysis of two topical microbicides, stampidine (STP) and HI443 in bulk and nanoformulations. The Plackett-Burman design was used for screening; whereas, Box-Behnken design was used to evaluate the main and interaction effects of the selected factors on the responses, namely peak area of STP (Y₁), HI443 (Y₂), tailing of STP (Y₃), and HI443 (Y₄). The Monte Carlo simulation was applied to get the minimum defect rate (DR) of the process. The optimized LC conditions were found to be X₁; flow rate: 0.6 mL/min, X₂; injection volume: 18 μL, and X₃; initial gradient acetonitrile ratio: 92% v/v with a minimal DR of 0.077%. The optimized method was applied to determine the percent encapsulation efficiency (%EE) and in vitro release profile of STP and HI443 from solid lipid nanoparticles (SLNs). The %EE of STP and HI443 in SLNs was found to be 30.56 ± 9.44 and 94.80 ± 21.90% w/w, respectively, (n=3). It was observed that the release kinetics of STP followed the first order, whereas, HI443 followed the Peppas kinetic model in SLNs. The LC method was also applied for the estimation of molar extinction coefficients (ε₂₇₀ ) of both drugs for the first time. These values were estimated to be 7,569.03 ± 217.96 and 17,823.67 ± 88.12 L/mol/cm for STP and HI443, respectively, (n=3). The results suggest that experimental design and Monte Carlo simulation can be effectively used to reduce the DR of a process and to optimize the chromatographic conditions for the analysis of bio-active agents as applied in this study.
