双尺寸TiO2纳米颗粒工程界面用于钙钛矿太阳能电池的宽带光散射和效率增强

IF 5.5 3区 材料科学 Q2 CHEMISTRY, PHYSICAL
Raji Radhakrishnan, , , Jung Keun Cha, , and , Soo Hyung Kim*,
{"title":"双尺寸TiO2纳米颗粒工程界面用于钙钛矿太阳能电池的宽带光散射和效率增强","authors":"Raji Radhakrishnan,&nbsp;, ,&nbsp;Jung Keun Cha,&nbsp;, and ,&nbsp;Soo Hyung Kim*,&nbsp;","doi":"10.1021/acsaem.5c02634","DOIUrl":null,"url":null,"abstract":"<p >While power conversion efficiencies (PCEs) of perovskite solar cells (PSCs) can be improved by incorporating sophisticated nanostructures into the electron transport layer (ETL), conventional approaches in this regard are often limited by complex fabrication processes and poor reproducibility. In this study, we propose a simple and efficient strategy involving a mixed ETL composed of two types of TiO<sub>2</sub> nanoparticles (NPs) with different average sizes (15 and 250 nm) to improve the photovoltaic performance of PSCs. The 15 nm TiO<sub>2</sub> NPs primarily function as efficient electron transporters, facilitating the extraction and transfer of photogenerated electrons from the perovskite layer. The larger 250 nm TiO<sub>2</sub> NPs serve as effective light-scattering centers that enhance light-harvesting efficiency by increasing the optical path length within the active layer. The scattering effects are examined using the principles of Rayleigh and Mie scattering theories. The 250 nm TiO<sub>2</sub> NPs, with particle sizes comparable to or larger than the incident light wavelength, follow Mie scattering, leading to significant forward and backward scattering that enhances light trapping in the active layer. Conversely, the 15 nm TiO<sub>2</sub> NPs, being considerably smaller than the incident wavelength, predominantly follow Rayleigh scattering, as characterized by wavelength-dependent scattering intensity, thus contributing minimally to light redirection while ensuring high electron conductivity. Overall, we achieve a synergistic effect between enhanced light scattering and efficient charge transport by optimizing the ratio of the TiO<sub>2</sub> NPs, thereby improving the overall PCE of PSCs.</p>","PeriodicalId":4,"journal":{"name":"ACS Applied Energy Materials","volume":"8 19","pages":"14893–14901"},"PeriodicalIF":5.5000,"publicationDate":"2025-09-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Dual-Size TiO2 Nanoparticle-Engineered Interfaces for Broadband Light Scattering and Efficiency Enhancement in Perovskite Solar Cells\",\"authors\":\"Raji Radhakrishnan,&nbsp;, ,&nbsp;Jung Keun Cha,&nbsp;, and ,&nbsp;Soo Hyung Kim*,&nbsp;\",\"doi\":\"10.1021/acsaem.5c02634\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >While power conversion efficiencies (PCEs) of perovskite solar cells (PSCs) can be improved by incorporating sophisticated nanostructures into the electron transport layer (ETL), conventional approaches in this regard are often limited by complex fabrication processes and poor reproducibility. In this study, we propose a simple and efficient strategy involving a mixed ETL composed of two types of TiO<sub>2</sub> nanoparticles (NPs) with different average sizes (15 and 250 nm) to improve the photovoltaic performance of PSCs. The 15 nm TiO<sub>2</sub> NPs primarily function as efficient electron transporters, facilitating the extraction and transfer of photogenerated electrons from the perovskite layer. The larger 250 nm TiO<sub>2</sub> NPs serve as effective light-scattering centers that enhance light-harvesting efficiency by increasing the optical path length within the active layer. The scattering effects are examined using the principles of Rayleigh and Mie scattering theories. The 250 nm TiO<sub>2</sub> NPs, with particle sizes comparable to or larger than the incident light wavelength, follow Mie scattering, leading to significant forward and backward scattering that enhances light trapping in the active layer. Conversely, the 15 nm TiO<sub>2</sub> NPs, being considerably smaller than the incident wavelength, predominantly follow Rayleigh scattering, as characterized by wavelength-dependent scattering intensity, thus contributing minimally to light redirection while ensuring high electron conductivity. Overall, we achieve a synergistic effect between enhanced light scattering and efficient charge transport by optimizing the ratio of the TiO<sub>2</sub> NPs, thereby improving the overall PCE of PSCs.</p>\",\"PeriodicalId\":4,\"journal\":{\"name\":\"ACS Applied Energy Materials\",\"volume\":\"8 19\",\"pages\":\"14893–14901\"},\"PeriodicalIF\":5.5000,\"publicationDate\":\"2025-09-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaem.5c02634\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaem.5c02634","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

虽然钙钛矿太阳能电池(PSCs)的功率转换效率(PCEs)可以通过在电子传输层(ETL)中加入复杂的纳米结构来提高,但这方面的传统方法往往受到复杂的制造工艺和较差的可重复性的限制。在这项研究中,我们提出了一种简单而有效的策略,即由两种不同平均尺寸(15和250 nm)的TiO2纳米颗粒(NPs)组成的混合ETL来提高psc的光伏性能。15nm TiO2 NPs的主要功能是作为高效的电子传输体,促进钙钛矿层中光生电子的提取和转移。较大的250nm TiO2 NPs作为有效的光散射中心,通过增加活性层内的光路长度来提高光收集效率。利用瑞利散射理论和米氏散射理论对散射效应进行了研究。粒径大于或等于入射光波长的250 nm TiO2 NPs遵循Mie散射,导致显著的正向和向后散射,增强了活性层中的光捕获。相反,15 nm的TiO2 NPs比入射波长小得多,主要遵循瑞利散射,其特征是波长相关的散射强度,因此在保证高电子导电性的同时,对光重定向的贡献最小。总的来说,我们通过优化TiO2纳米粒子的比例,实现了增强光散射和高效电荷输运之间的协同效应,从而提高了psc的整体PCE。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Dual-Size TiO2 Nanoparticle-Engineered Interfaces for Broadband Light Scattering and Efficiency Enhancement in Perovskite Solar Cells

Dual-Size TiO2 Nanoparticle-Engineered Interfaces for Broadband Light Scattering and Efficiency Enhancement in Perovskite Solar Cells

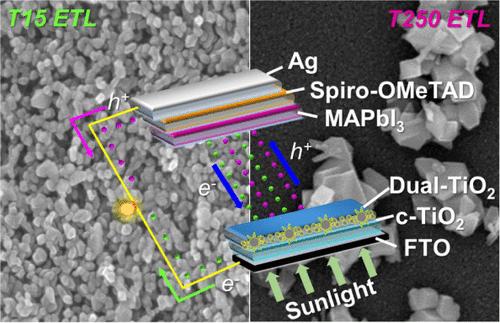

While power conversion efficiencies (PCEs) of perovskite solar cells (PSCs) can be improved by incorporating sophisticated nanostructures into the electron transport layer (ETL), conventional approaches in this regard are often limited by complex fabrication processes and poor reproducibility. In this study, we propose a simple and efficient strategy involving a mixed ETL composed of two types of TiO2 nanoparticles (NPs) with different average sizes (15 and 250 nm) to improve the photovoltaic performance of PSCs. The 15 nm TiO2 NPs primarily function as efficient electron transporters, facilitating the extraction and transfer of photogenerated electrons from the perovskite layer. The larger 250 nm TiO2 NPs serve as effective light-scattering centers that enhance light-harvesting efficiency by increasing the optical path length within the active layer. The scattering effects are examined using the principles of Rayleigh and Mie scattering theories. The 250 nm TiO2 NPs, with particle sizes comparable to or larger than the incident light wavelength, follow Mie scattering, leading to significant forward and backward scattering that enhances light trapping in the active layer. Conversely, the 15 nm TiO2 NPs, being considerably smaller than the incident wavelength, predominantly follow Rayleigh scattering, as characterized by wavelength-dependent scattering intensity, thus contributing minimally to light redirection while ensuring high electron conductivity. Overall, we achieve a synergistic effect between enhanced light scattering and efficient charge transport by optimizing the ratio of the TiO2 NPs, thereby improving the overall PCE of PSCs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Energy Materials
ACS Applied Energy Materials Materials Science-Materials Chemistry
CiteScore
10.30
自引率
6.20%
发文量
1368
期刊介绍: ACS Applied Energy Materials is an interdisciplinary journal publishing original research covering all aspects of materials, engineering, chemistry, physics and biology relevant to energy conversion and storage. The journal is devoted to reports of new and original experimental and theoretical research of an applied nature that integrate knowledge in the areas of materials, engineering, physics, bioscience, and chemistry into important energy applications.
×
