Evaluation of the Upper Airway in Class II Patients Undergoing Maxillary Setback and Counterclockwise Rotation in Orthognatic Surgery.

Introduction: Maxillary setback in orthognathic surgery has been extensively discussed regarding its effects on bone healing and facial soft tissue profile; however, its impact on upper airway volume remains unclear.

Objective: We evaluate the influence of maxillary setback combined with counterclockwise (CCW) rotation of the occlusal plane on upper airway dimensions.

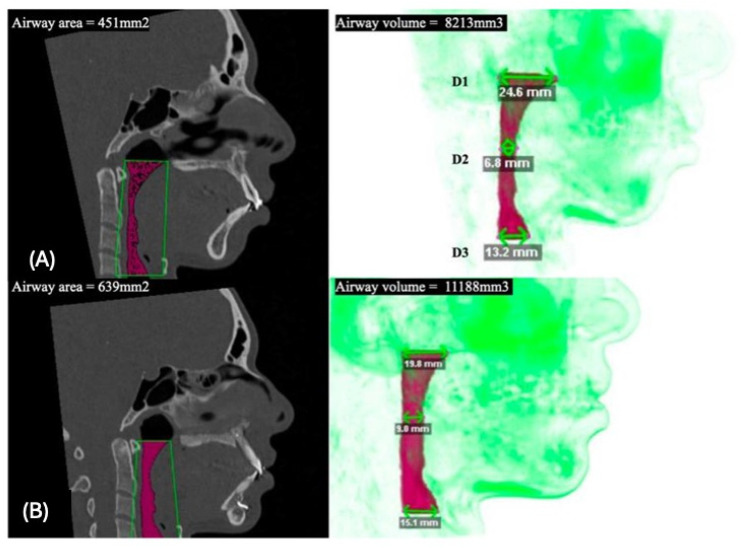

Methods: A retrospective observational case series was conducted with eight patients diagnosed with Class II malocclusion who underwent orthognathic surgery involving maxillary setback and CCW mandibular rotation. All procedures were performed by the same surgeon. Preoperative (T1) and 6-month postoperative (T2) facial CT scans were analyzed using Dolphin Imaging software11.7 to measure airway volume (VOL), surface area (SA), and linear distances D1, D2 and D3. Statistical analysis was performed using the Wilcoxon test with a 5% significance level.

Results: Significant skeletal changes were observed, including 10.2 mm of mandibular advancement, 5.2 mm of hyoid advancement, and 4.1° of CCW rotation. Although increases in airway volume and surface area were noted, they did not reach statistical significance (p = 0.327 and p = 0.050, respectively), but suggesting a favorable trend toward airway adaptation.

Conclusions: Maxillary setback combined with CCW rotation appears to safely correct Class II skeletal deformities without compromising upper airway space. These preliminary findings highlight the technique's potential for both functional and aesthetic outcomes, warranting further long-term studies.
