基于废硅的高性能锂存储金属-有机骨架衍生Si@FCN复合材料

IF 5.5 3区 材料科学 Q2 CHEMISTRY, PHYSICAL
Liang Yuan, , , Yanxi Zheng, , , Jiaqi Sun, , , Rui Ji, , , Xiang Li*, , , Mengkui Li, , , Hang Gao, , and , Kai Tang,
{"title":"基于废硅的高性能锂存储金属-有机骨架衍生Si@FCN复合材料","authors":"Liang Yuan,&nbsp;, ,&nbsp;Yanxi Zheng,&nbsp;, ,&nbsp;Jiaqi Sun,&nbsp;, ,&nbsp;Rui Ji,&nbsp;, ,&nbsp;Xiang Li*,&nbsp;, ,&nbsp;Mengkui Li,&nbsp;, ,&nbsp;Hang Gao,&nbsp;, and ,&nbsp;Kai Tang,&nbsp;","doi":"10.1021/acsaem.5c02276","DOIUrl":null,"url":null,"abstract":"<p >Nanosizing cheap kerf loss silicon (KL Si) and then compositing it with carbon is one of the effective ways to address the high-cost and low-cycling-life issues of a silicon-based anode for lithium-ion batteries (LIBs). In this work, a unique ZIFs-derived N-doped silicon–carbon structure (Si@FCN) has been prepared by exploiting the modulating effect of Pluronic F127 on metal–organic frameworks (MOFs). When tested as an anode for a CR3032 half-cell, Si@FCN demonstrates an initial Coulombic efficiency (ICE) of 75.4% at 0.1 A g<sup>–1</sup>, highlighting a stable cycling performance with discharge capacity maintained at 842.6 mAh g<sup>–1</sup> (0.1 A g<sup>–1</sup> for 200 cycles), 549.3 mAh g<sup>–1</sup> (0.5 A g<sup>–1</sup> for 300 cycles), and 485.7 mAh g<sup>–1</sup> (1.0 A g<sup>–1</sup> for 300 cycles). It also reveals good rate performance in the range of 0.2–5.0 A g<sup>–1</sup>. Such a remarkable electrochemical performance originates from the high surface area and porosity of the composite. The N-doped carbon layer derived from ZIF-8 demonstrated multifunctional enhancements in the electrode. Primarily, it significantly improves electrical conductivity through continuous electron transport pathways. Simultaneously, the mechanically robust carbon matrix effectively accommodates silicon’s substantial volumetric fluctuations during lithiation/delithiation cycles, thereby maintaining structural integrity. Furthermore, the introduced nitrogen heteroatoms create abundant redox sites, which substantially reduce the charge transfer resistance and accelerate redox reaction kinetics. The synthetic strategy for the silicon–carbon composite anode demonstrates enhanced lithium-ion storage capabilities, suggesting strong viability for scalable implementation in next-generation LIBs.</p>","PeriodicalId":4,"journal":{"name":"ACS Applied Energy Materials","volume":"8 18","pages":"13947–13958"},"PeriodicalIF":5.5000,"publicationDate":"2025-09-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Metal–Organic Framework-Derived Si@FCN Composite Based on Waste Silicon for High-Performance Lithium Storage\",\"authors\":\"Liang Yuan,&nbsp;, ,&nbsp;Yanxi Zheng,&nbsp;, ,&nbsp;Jiaqi Sun,&nbsp;, ,&nbsp;Rui Ji,&nbsp;, ,&nbsp;Xiang Li*,&nbsp;, ,&nbsp;Mengkui Li,&nbsp;, ,&nbsp;Hang Gao,&nbsp;, and ,&nbsp;Kai Tang,&nbsp;\",\"doi\":\"10.1021/acsaem.5c02276\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Nanosizing cheap kerf loss silicon (KL Si) and then compositing it with carbon is one of the effective ways to address the high-cost and low-cycling-life issues of a silicon-based anode for lithium-ion batteries (LIBs). In this work, a unique ZIFs-derived N-doped silicon–carbon structure (Si@FCN) has been prepared by exploiting the modulating effect of Pluronic F127 on metal–organic frameworks (MOFs). When tested as an anode for a CR3032 half-cell, Si@FCN demonstrates an initial Coulombic efficiency (ICE) of 75.4% at 0.1 A g<sup>–1</sup>, highlighting a stable cycling performance with discharge capacity maintained at 842.6 mAh g<sup>–1</sup> (0.1 A g<sup>–1</sup> for 200 cycles), 549.3 mAh g<sup>–1</sup> (0.5 A g<sup>–1</sup> for 300 cycles), and 485.7 mAh g<sup>–1</sup> (1.0 A g<sup>–1</sup> for 300 cycles). It also reveals good rate performance in the range of 0.2–5.0 A g<sup>–1</sup>. Such a remarkable electrochemical performance originates from the high surface area and porosity of the composite. The N-doped carbon layer derived from ZIF-8 demonstrated multifunctional enhancements in the electrode. Primarily, it significantly improves electrical conductivity through continuous electron transport pathways. Simultaneously, the mechanically robust carbon matrix effectively accommodates silicon’s substantial volumetric fluctuations during lithiation/delithiation cycles, thereby maintaining structural integrity. Furthermore, the introduced nitrogen heteroatoms create abundant redox sites, which substantially reduce the charge transfer resistance and accelerate redox reaction kinetics. The synthetic strategy for the silicon–carbon composite anode demonstrates enhanced lithium-ion storage capabilities, suggesting strong viability for scalable implementation in next-generation LIBs.</p>\",\"PeriodicalId\":4,\"journal\":{\"name\":\"ACS Applied Energy Materials\",\"volume\":\"8 18\",\"pages\":\"13947–13958\"},\"PeriodicalIF\":5.5000,\"publicationDate\":\"2025-09-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaem.5c02276\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaem.5c02276","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

纳米级廉价的刻蚀硅(KL Si)与碳复合是解决锂离子电池(LIBs)硅基负极高成本和低循环寿命问题的有效途径之一。在这项工作中,利用Pluronic F127对金属有机框架(MOFs)的调制作用,制备了一种独特的zifs衍生的n掺杂硅碳结构(Si@FCN)。当作为CR3032半电池的阳极进行测试时,Si@FCN在0.1 a g-1下的初始库仑效率(ICE)为75.4%,突出了稳定的循环性能,放电容量保持在842.6 mAh g-1 (0.1 a g-1 200次循环),549.3 mAh g-1 (0.5 a g-1 300次循环)和485.7 mAh g-1 (1.0 a g-1 300次循环)。它还显示了在0.2-5.0 A g-1范围内的良好速率性能。这种优异的电化学性能源于复合材料的高表面积和高孔隙率。由ZIF-8衍生的n掺杂碳层在电极上表现出多功能增强。首先,它通过连续的电子传递途径显著提高了电导率。同时,机械坚固的碳基体有效地适应了硅在锂化/去硫化周期中的大量体积波动,从而保持了结构的完整性。此外,引入的氮杂原子产生了丰富的氧化还原位点,大大降低了电荷传递阻力,加快了氧化还原反应动力学。硅碳复合阳极的合成策略显示出增强的锂离子存储能力,表明在下一代锂离子电池中可扩展实施的强大可行性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Metal–Organic Framework-Derived Si@FCN Composite Based on Waste Silicon for High-Performance Lithium Storage

Metal–Organic Framework-Derived Si@FCN Composite Based on Waste Silicon for High-Performance Lithium Storage

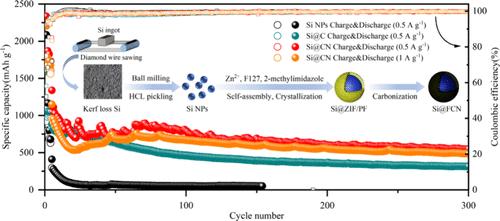

Nanosizing cheap kerf loss silicon (KL Si) and then compositing it with carbon is one of the effective ways to address the high-cost and low-cycling-life issues of a silicon-based anode for lithium-ion batteries (LIBs). In this work, a unique ZIFs-derived N-doped silicon–carbon structure (Si@FCN) has been prepared by exploiting the modulating effect of Pluronic F127 on metal–organic frameworks (MOFs). When tested as an anode for a CR3032 half-cell, Si@FCN demonstrates an initial Coulombic efficiency (ICE) of 75.4% at 0.1 A g–1, highlighting a stable cycling performance with discharge capacity maintained at 842.6 mAh g–1 (0.1 A g–1 for 200 cycles), 549.3 mAh g–1 (0.5 A g–1 for 300 cycles), and 485.7 mAh g–1 (1.0 A g–1 for 300 cycles). It also reveals good rate performance in the range of 0.2–5.0 A g–1. Such a remarkable electrochemical performance originates from the high surface area and porosity of the composite. The N-doped carbon layer derived from ZIF-8 demonstrated multifunctional enhancements in the electrode. Primarily, it significantly improves electrical conductivity through continuous electron transport pathways. Simultaneously, the mechanically robust carbon matrix effectively accommodates silicon’s substantial volumetric fluctuations during lithiation/delithiation cycles, thereby maintaining structural integrity. Furthermore, the introduced nitrogen heteroatoms create abundant redox sites, which substantially reduce the charge transfer resistance and accelerate redox reaction kinetics. The synthetic strategy for the silicon–carbon composite anode demonstrates enhanced lithium-ion storage capabilities, suggesting strong viability for scalable implementation in next-generation LIBs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Energy Materials
ACS Applied Energy Materials Materials Science-Materials Chemistry
CiteScore
10.30
自引率
6.20%
发文量
1368
期刊介绍: ACS Applied Energy Materials is an interdisciplinary journal publishing original research covering all aspects of materials, engineering, chemistry, physics and biology relevant to energy conversion and storage. The journal is devoted to reports of new and original experimental and theoretical research of an applied nature that integrate knowledge in the areas of materials, engineering, physics, bioscience, and chemistry into important energy applications.
×
