Investigating Morphology and Diffusion in Simulations of Precise Anion-Conducting Polymers

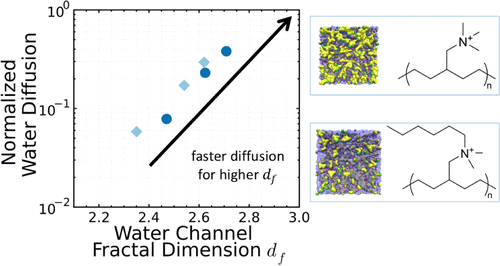

Using atomistic molecular dynamics simulations, we investigate the morphology and transport properties of a new class of polymers which are functionalized with quaternary ammonium groups for use as anion exchange membranes. The polymers are precision polyolefins with either a trimethylammonium (p5CNMe3) or a dimethyl-hexyl ammonium (p5CNMe2Hx) pendant group at every fifth carbon along a polyethylene backbone. Simulations are performed at hydration levels of 5, 10, 15, and 20 water molecules per ammonium group. The hydrated polymers form nanoscale, percolated hydrophilic domains (water channels) in the hydrophobic polymer matrix that become wider with increasing water content. Water and hydroxide anion diffusion coefficients also increase with increasing water content. The morphology of the water domains is similar in both polymers, while the diffusion coefficients are somewhat lower in p5CNMe2Hx at fixed water content. The diffusion coefficients in both polymers fall on the same curve as a function of the fractal dimension of the percolated water channels, which appears to be a useful scalar measure of the effects of the nanoscale morphology on water and hydroxide anion transport.
