Vanessa Twardy, Daniela Warnecke, Peter M Prodinger, Norbert Harrasser, Christian Scheele, Rüdiger von Eisenhart-Rothe, Martina Roth, Ingo J Banke
{"title":"无节双排结构与Mason-Allen修复在臀腱解剖再固定中的初步稳定性比较——人体尸体生物力学研究。","authors":"Vanessa Twardy, Daniela Warnecke, Peter M Prodinger, Norbert Harrasser, Christian Scheele, Rüdiger von Eisenhart-Rothe, Martina Roth, Ingo J Banke","doi":"10.1111/os.70153","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives: </strong>Hip abductor tendon tears remain an underrecognized diagnosis, initially classified under Greater Trochanteric Pain Syndrome. This often results in ineffective conservative treatment, providing only temporary pain relief. While certain surgical approaches, particularly knotless double-row repair techniques (Hip Bridge) have shown promising clinical outcomes, comprehensive biomechanical data remain insufficient. Therefore, this study aimed to biomechanically compare Hip Bridge (HB) repair with the standard Mason-Allen (MA) technique using a human cadaver model.</p><p><strong>Methods: </strong>Gluteus minimus and medius were released in 12 fresh-frozen human cadaveric specimens and reattached to their anatomical footprints either with transosseous MA or knotless double-row HB technique. HB consisted of two proximal PEEK (polyetheretherketone) anchors, each preloaded with double-V shaped tapes, crossed, and distally fixated with two additional anchors. Femurs were fixated in a custom-made sample holder while gluteal muscles were clamped using a cryo-jaw. The construct underwent a cyclic loading test between 10 and 125 N for 150 cycles at 2.5 Hz (preload 10 N), followed by a pull-to-failure test. Failure mode and elongation were determined, the latter by a 3D optical measurement system. Statistical analysis was performed using t-test.</p><p><strong>Results: </strong>HB repair resulted in significantly higher ultimate failure loads (339.1 ± 144.4 N) compared to the MA technique (209.6 ± 62.1 N, p = 0.0381). HB failed exclusively due to tendon failure, whereas MA exhibited different failure modes: tendon failure (1/6), bone cutting (4/6), and muscle rupture (1/6). During cyclic loading, the calculated final plastic elongation was 4.4 ± 0.5 mm for MA and 3.4 ± 1.4 mm for HB (p = 0.0731). During pull-to-failure testing, stiffness of 59.7 ± 12.5 N/mm (MA) and 66.8 ± 18.4 N/mm (HB) was observed (p = 0.247).</p><p><strong>Conclusion: </strong>The HipBridge technique provides superior biomechanical stability compared to the standard Mason-Allen repair, showing significantly higher ultimate failure load and reduced failure variability. This advantage may be attributed to greater contact restoration of the anatomical footprint, which is particularly beneficial for treating weakened tendons and bones in elderly patients.</p>","PeriodicalId":19566,"journal":{"name":"Orthopaedic Surgery","volume":" ","pages":"2973-2981"},"PeriodicalIF":2.1000,"publicationDate":"2025-10-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12497568/pdf/","citationCount":"0","resultStr":"{\"title\":\"Superior Primary Stability of a Knotless Double-Row Construct Compared to Mason-Allen Repair for Anatomical Refixation of Gluteal Tendons-Biomechanical Human Cadaver Study.\",\"authors\":\"Vanessa Twardy, Daniela Warnecke, Peter M Prodinger, Norbert Harrasser, Christian Scheele, Rüdiger von Eisenhart-Rothe, Martina Roth, Ingo J Banke\",\"doi\":\"10.1111/os.70153\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Objectives: </strong>Hip abductor tendon tears remain an underrecognized diagnosis, initially classified under Greater Trochanteric Pain Syndrome. This often results in ineffective conservative treatment, providing only temporary pain relief. While certain surgical approaches, particularly knotless double-row repair techniques (Hip Bridge) have shown promising clinical outcomes, comprehensive biomechanical data remain insufficient. Therefore, this study aimed to biomechanically compare Hip Bridge (HB) repair with the standard Mason-Allen (MA) technique using a human cadaver model.</p><p><strong>Methods: </strong>Gluteus minimus and medius were released in 12 fresh-frozen human cadaveric specimens and reattached to their anatomical footprints either with transosseous MA or knotless double-row HB technique. HB consisted of two proximal PEEK (polyetheretherketone) anchors, each preloaded with double-V shaped tapes, crossed, and distally fixated with two additional anchors. Femurs were fixated in a custom-made sample holder while gluteal muscles were clamped using a cryo-jaw. The construct underwent a cyclic loading test between 10 and 125 N for 150 cycles at 2.5 Hz (preload 10 N), followed by a pull-to-failure test. Failure mode and elongation were determined, the latter by a 3D optical measurement system. Statistical analysis was performed using t-test.</p><p><strong>Results: </strong>HB repair resulted in significantly higher ultimate failure loads (339.1 ± 144.4 N) compared to the MA technique (209.6 ± 62.1 N, p = 0.0381). HB failed exclusively due to tendon failure, whereas MA exhibited different failure modes: tendon failure (1/6), bone cutting (4/6), and muscle rupture (1/6). During cyclic loading, the calculated final plastic elongation was 4.4 ± 0.5 mm for MA and 3.4 ± 1.4 mm for HB (p = 0.0731). During pull-to-failure testing, stiffness of 59.7 ± 12.5 N/mm (MA) and 66.8 ± 18.4 N/mm (HB) was observed (p = 0.247).</p><p><strong>Conclusion: </strong>The HipBridge technique provides superior biomechanical stability compared to the standard Mason-Allen repair, showing significantly higher ultimate failure load and reduced failure variability. This advantage may be attributed to greater contact restoration of the anatomical footprint, which is particularly beneficial for treating weakened tendons and bones in elderly patients.</p>\",\"PeriodicalId\":19566,\"journal\":{\"name\":\"Orthopaedic Surgery\",\"volume\":\" \",\"pages\":\"2973-2981\"},\"PeriodicalIF\":2.1000,\"publicationDate\":\"2025-10-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12497568/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Orthopaedic Surgery\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.1111/os.70153\",\"RegionNum\":2,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2025/8/13 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q2\",\"JCRName\":\"ORTHOPEDICS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Orthopaedic Surgery","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1111/os.70153","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/8/13 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"ORTHOPEDICS","Score":null,"Total":0}
引用次数: 0
摘要
目的:髋关节外展肌腱撕裂仍然是一种未被充分认识的诊断,最初被归类为大转子疼痛综合征。这通常导致保守治疗无效,只能暂时缓解疼痛。虽然某些手术入路,特别是无节双排修复技术(髋关节桥)已显示出良好的临床效果,但全面的生物力学数据仍然不足。因此,本研究旨在通过人体尸体模型对髋关节桥(HB)修复与标准Mason-Allen (MA)技术进行生物力学比较。方法:将12例新鲜冷冻的人尸体标本中的臀小肌和中肌释放,并采用经骨MA或无结双排HB技术与其解剖足迹重新连接。HB包括两个近端PEEK(聚醚醚酮)锚点,每个锚点预装双v形带,交叉,并在远端固定两个额外的锚点。股骨固定在定制的样品夹中,而臀肌则使用冷冻颚夹紧。该结构在2.5 Hz下进行了10 - 125 N的150次循环加载试验(预加载10 N),然后进行了拉至失效试验。通过三维光学测量系统测定了断裂模式和伸长率。采用t检验进行统计学分析。结果:HB修复的最终失效负荷(339.1±144.4 N)明显高于MA技术(209.6±62.1 N, p = 0.0381)。HB完全由于肌腱失效而失效,而MA则表现出不同的失效模式:肌腱失效(1/6)、骨切割(4/6)和肌肉断裂(1/6)。在循环加载过程中,MA的最终塑性伸长为4.4±0.5 mm, HB的最终塑性伸长为3.4±1.4 mm (p = 0.0731)。拉力失效试验时,试件刚度分别为59.7±12.5 N/mm (MA)和66.8±18.4 N/mm (HB) (p = 0.247)。结论:与标准Mason-Allen修复相比,HipBridge技术提供了更好的生物力学稳定性,显示出更高的最终失效负荷和更低的失效变异性。这种优势可能归因于解剖足迹的更大接触恢复,这对治疗老年患者的肌腱和骨骼衰弱特别有益。
Superior Primary Stability of a Knotless Double-Row Construct Compared to Mason-Allen Repair for Anatomical Refixation of Gluteal Tendons-Biomechanical Human Cadaver Study.
Objectives: Hip abductor tendon tears remain an underrecognized diagnosis, initially classified under Greater Trochanteric Pain Syndrome. This often results in ineffective conservative treatment, providing only temporary pain relief. While certain surgical approaches, particularly knotless double-row repair techniques (Hip Bridge) have shown promising clinical outcomes, comprehensive biomechanical data remain insufficient. Therefore, this study aimed to biomechanically compare Hip Bridge (HB) repair with the standard Mason-Allen (MA) technique using a human cadaver model.

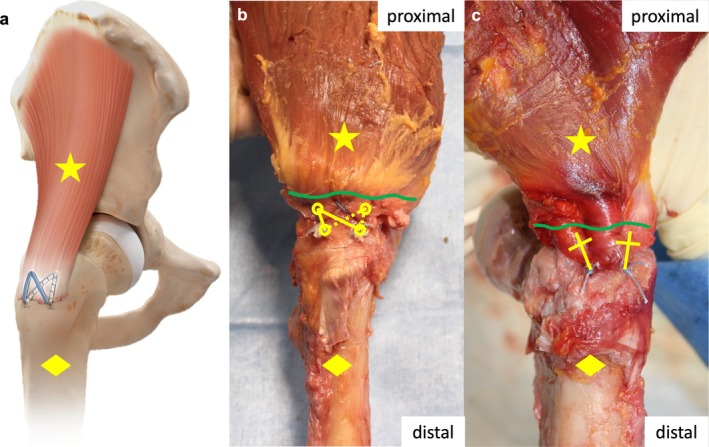

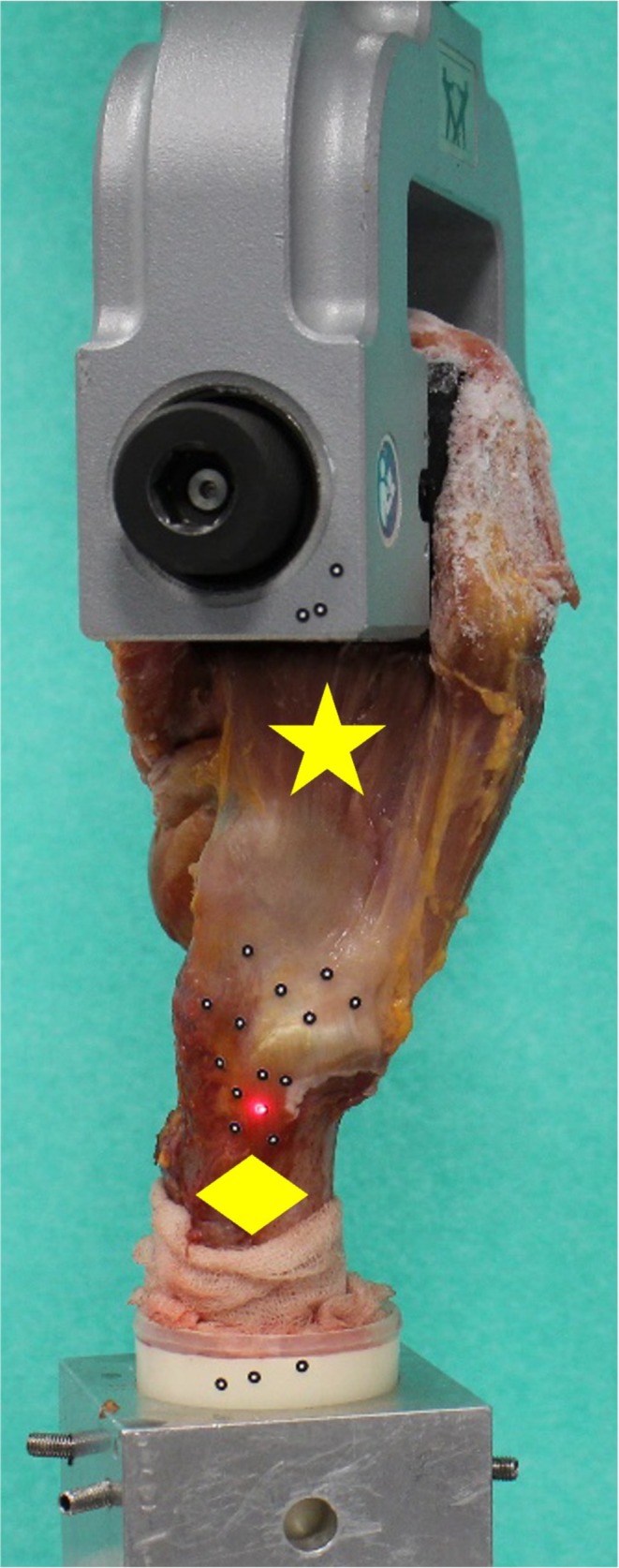

Methods: Gluteus minimus and medius were released in 12 fresh-frozen human cadaveric specimens and reattached to their anatomical footprints either with transosseous MA or knotless double-row HB technique. HB consisted of two proximal PEEK (polyetheretherketone) anchors, each preloaded with double-V shaped tapes, crossed, and distally fixated with two additional anchors. Femurs were fixated in a custom-made sample holder while gluteal muscles were clamped using a cryo-jaw. The construct underwent a cyclic loading test between 10 and 125 N for 150 cycles at 2.5 Hz (preload 10 N), followed by a pull-to-failure test. Failure mode and elongation were determined, the latter by a 3D optical measurement system. Statistical analysis was performed using t-test.
Results: HB repair resulted in significantly higher ultimate failure loads (339.1 ± 144.4 N) compared to the MA technique (209.6 ± 62.1 N, p = 0.0381). HB failed exclusively due to tendon failure, whereas MA exhibited different failure modes: tendon failure (1/6), bone cutting (4/6), and muscle rupture (1/6). During cyclic loading, the calculated final plastic elongation was 4.4 ± 0.5 mm for MA and 3.4 ± 1.4 mm for HB (p = 0.0731). During pull-to-failure testing, stiffness of 59.7 ± 12.5 N/mm (MA) and 66.8 ± 18.4 N/mm (HB) was observed (p = 0.247).
Conclusion: The HipBridge technique provides superior biomechanical stability compared to the standard Mason-Allen repair, showing significantly higher ultimate failure load and reduced failure variability. This advantage may be attributed to greater contact restoration of the anatomical footprint, which is particularly beneficial for treating weakened tendons and bones in elderly patients.
