10M Ni-Mn-Ga单晶高迁移型I型和超迁移型II型孪晶界的原子拓扑结构

IF 5.6 2区材料科学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY

Scripta Materialia Pub Date : 2025-08-12 DOI:10.1016/j.scriptamat.2025.116920

Ladislav Straka , Marek Vronka , Jan Maňák , Petr Veřtát , Hanuš Seiner , Oleg Heczko

{"title":"10M Ni-Mn-Ga单晶高迁移型I型和超迁移型II型孪晶界的原子拓扑结构","authors":"Ladislav Straka , Marek Vronka , Jan Maňák , Petr Veřtát , Hanuš Seiner , Oleg Heczko","doi":"10.1016/j.scriptamat.2025.116920","DOIUrl":null,"url":null,"abstract":"<div><div>The atomic topology of individual, highly mobile Type I and Type II twin boundaries in 10M Ni–Mn–Ga martensite was investigated by transmission electron microscopy (TEM). The twin boundaries established in a bulk single crystal showed twinning stresses of ∼1 MPa for Type I and ∼0.1 MPa for Type II. TEM lamellae with a (010) cross-section and the <em>c</em>-axis (easy-magnetization direction) lying in-plane were prepared by focused ion-beam milling, each containing a single twin boundary of specific type. High-resolution TEM confirmed an atomically sharp Type I twin boundary oriented along the rational (101) plane. The Type II boundary was also atomically sharp, apart from occasional single-atomic-plane steps, contrasting with previous suggestions of its diffuse nature. These findings provide the first direct atomic-scale comparison of both boundary types and offer critical structural insight into the origin of supermobility in Type II twin boundaries.</div></div>","PeriodicalId":423,"journal":{"name":"Scripta Materialia","volume":"269 ","pages":"Article 116920"},"PeriodicalIF":5.6000,"publicationDate":"2025-08-12","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Atomic topology of highly mobile Type I and supermobile Type II twin boundaries in 10M Ni–Mn–Ga single crystal\",\"authors\":\"Ladislav Straka , Marek Vronka , Jan Maňák , Petr Veřtát , Hanuš Seiner , Oleg Heczko\",\"doi\":\"10.1016/j.scriptamat.2025.116920\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>The atomic topology of individual, highly mobile Type I and Type II twin boundaries in 10M Ni–Mn–Ga martensite was investigated by transmission electron microscopy (TEM). The twin boundaries established in a bulk single crystal showed twinning stresses of ∼1 MPa for Type I and ∼0.1 MPa for Type II. TEM lamellae with a (010) cross-section and the <em>c</em>-axis (easy-magnetization direction) lying in-plane were prepared by focused ion-beam milling, each containing a single twin boundary of specific type. High-resolution TEM confirmed an atomically sharp Type I twin boundary oriented along the rational (101) plane. The Type II boundary was also atomically sharp, apart from occasional single-atomic-plane steps, contrasting with previous suggestions of its diffuse nature. These findings provide the first direct atomic-scale comparison of both boundary types and offer critical structural insight into the origin of supermobility in Type II twin boundaries.</div></div>\",\"PeriodicalId\":423,\"journal\":{\"name\":\"Scripta Materialia\",\"volume\":\"269 \",\"pages\":\"Article 116920\"},\"PeriodicalIF\":5.6000,\"publicationDate\":\"2025-08-12\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Scripta Materialia\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S1359646225003823\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scripta Materialia","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S1359646225003823","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

利用透射电子显微镜（TEM）研究了10M Ni-Mn-Ga马氏体中单个高迁移I型和II型孪晶界的原子拓扑结构。在块状单晶中建立的孪晶边界显示，I型孪晶应力为~ 1 MPa， II型孪晶应力为~ 0.1 MPa。通过聚焦离子束铣削制备了截面为（010）、c轴（易磁化方向）在平面内的TEM片层，每个片层包含单个特定类型的孪晶边界。高分辨率透射电镜证实了沿有理（101）面取向的原子锐I型孪晶界。II型边界在原子层面上也是尖锐的，除了偶尔出现的单原子平面台阶，这与之前认为的扩散性质形成了鲜明对比。这些发现首次提供了两种边界类型的直接原子尺度比较，并为II型孪晶界超迁移的起源提供了关键的结构见解。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Atomic topology of highly mobile Type I and supermobile Type II twin boundaries in 10M Ni–Mn–Ga single crystal

查看原文本刊更多论文

Atomic topology of highly mobile Type I and supermobile Type II twin boundaries in 10M Ni–Mn–Ga single crystal

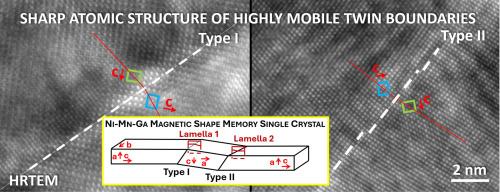

The atomic topology of individual, highly mobile Type I and Type II twin boundaries in 10M Ni–Mn–Ga martensite was investigated by transmission electron microscopy (TEM). The twin boundaries established in a bulk single crystal showed twinning stresses of ∼1 MPa for Type I and ∼0.1 MPa for Type II. TEM lamellae with a (010) cross-section and the c-axis (easy-magnetization direction) lying in-plane were prepared by focused ion-beam milling, each containing a single twin boundary of specific type. High-resolution TEM confirmed an atomically sharp Type I twin boundary oriented along the rational (101) plane. The Type II boundary was also atomically sharp, apart from occasional single-atomic-plane steps, contrasting with previous suggestions of its diffuse nature. These findings provide the first direct atomic-scale comparison of both boundary types and offer critical structural insight into the origin of supermobility in Type II twin boundaries.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
