Signal Recognition and Prediction of Water-Bearing Concrete Under Axial Compression Using Acoustic Emission and Machine Learning

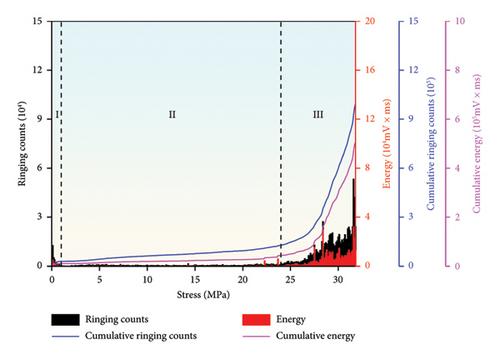

The presence of free water in the concrete slurry significantly influences the crack patterns of concrete. In this study, uniaxial compression tests were conducted on concrete specimens with varying moisture contents under acoustic emission (AE) monitoring. Through parametric analysis and machine learning, the cracking process of water-containing concrete was studied, signal patterns during the cracking process were identified, and the impact of moisture content on the damage evolution and fracture mechanism of concrete was understood. The results indicate that free water is capable of absorbing high-frequency signals. With the increase of moisture content, the AE signals decrease. The failure of concrete is mainly of the tensile type, while the shear-type accounts for a relatively small proportion. The presence of free water decreases the likelihood of diagonal shear failure in concrete structures. The unsupervised learning was used for various moisture content analyses. Three distinct AE signal patterns were identified during the concrete compression tests: frictional motion signals of the compression surface, fracture surface activity signals, and aggregate cracking signals. Based on the moisture content, this study analyzes the variations in signal responses across different modes. A predictive model was established utilizing the BP neural network to differentiate signals of various modes, achieving an accuracy rate of 99%.
