化合物5-乙基-4-[（4-茂硝基-苄基）氨基]-2,4-二氢- 3h -1,2,4-三唑-3-硫酮的x射线结构观察和计算分析。

IF 0.6 Q4 CRYSTALLOGRAPHY

Acta Crystallographica Section E: Crystallographic Communications Pub Date : 2025-07-01 DOI:10.1107/S2056989025004852

Syed Nizamuddin , T. N. Mahadeva Prasad , N. R. Sreenatha , C. L. Sharath , B. N. Lakshminarayana , K. A. Vishnumurthy

{"title":"化合物5-乙基-4-[（4-茂硝基-苄基）氨基]-2,4-二氢- 3h -1,2,4-三唑-3-硫酮的x射线结构观察和计算分析。","authors":"Syed Nizamuddin , T. N. Mahadeva Prasad , N. R. Sreenatha , C. L. Sharath , B. N. Lakshminarayana , K. A. Vishnumurthy","doi":"10.1107/S2056989025004852","DOIUrl":null,"url":null,"abstract":"<div><div>The molecule of the title compound adopts a non-planar geometry. A significant feature is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an <em>R</em><sup>2</sup><sub>2</sub>(8) ring motif.</div></div><div><div>The title compound, C<sub>15</sub>H<sub>19</sub>N<sub>5</sub>OS, crystallizes in the monoclinic crystal system, space group <em>P</em>2<sub>1</sub>/<em>c</em>. The molecule adopts a non-planar geometry. A significant feature of the structure is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an <em>R</em><sup>2</sup><sub>2</sub>(8) ring motif. A Hirshfeld surface analysis was undertaken to quantify the intermolecular interactions that influence the crystal packing.</div></div>","PeriodicalId":7367,"journal":{"name":"Acta Crystallographica Section E: Crystallographic Communications","volume":"81 7","pages":"Pages 565-568"},"PeriodicalIF":0.6000,"publicationDate":"2025-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"X-ray structural insights and computational analysis of the compound 5-ethyl-4-[(4-morpholinobenzylidene)amino]-2,4-dihydro-3H-1,2,4-triazole-3-thione\",\"authors\":\"Syed Nizamuddin , T. N. Mahadeva Prasad , N. R. Sreenatha , C. L. Sharath , B. N. Lakshminarayana , K. A. Vishnumurthy\",\"doi\":\"10.1107/S2056989025004852\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>The molecule of the title compound adopts a non-planar geometry. A significant feature is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an <em>R</em><sup>2</sup><sub>2</sub>(8) ring motif.</div></div><div><div>The title compound, C<sub>15</sub>H<sub>19</sub>N<sub>5</sub>OS, crystallizes in the monoclinic crystal system, space group <em>P</em>2<sub>1</sub>/<em>c</em>. The molecule adopts a non-planar geometry. A significant feature of the structure is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an <em>R</em><sup>2</sup><sub>2</sub>(8) ring motif. A Hirshfeld surface analysis was undertaken to quantify the intermolecular interactions that influence the crystal packing.</div></div>\",\"PeriodicalId\":7367,\"journal\":{\"name\":\"Acta Crystallographica Section E: Crystallographic Communications\",\"volume\":\"81 7\",\"pages\":\"Pages 565-568\"},\"PeriodicalIF\":0.6000,\"publicationDate\":\"2025-07-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Acta Crystallographica Section E: Crystallographic Communications\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://www.sciencedirect.com/org/science/article/pii/S2056989025001264\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q4\",\"JCRName\":\"CRYSTALLOGRAPHY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Acta Crystallographica Section E: Crystallographic Communications","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S2056989025001264","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"CRYSTALLOGRAPHY","Score":null,"Total":0}

引用次数: 0

摘要

标题化合物C15H19N5OS在单斜晶系P21/c空间群中结晶。分子采用非平面几何结构。该结构的一个显著特征是折叠的六元morpholine环，它采用椅子构象。在晶体中，分子通过分子间N-H⋯S氢键连接，形成具有r22(8)环基序的反转相关二聚体。赫斯菲尔德表面分析进行了定量的分子间相互作用，影响晶体的包装。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

X-ray structural insights and computational analysis of the compound 5-ethyl-4-[(4-morpholinobenzylidene)amino]-2,4-dihydro-3H-1,2,4-triazole-3-thione

查看原文本刊更多论文

X-ray structural insights and computational analysis of the compound 5-ethyl-4-[(4-morpholinobenzylidene)amino]-2,4-dihydro-3H-1,2,4-triazole-3-thione

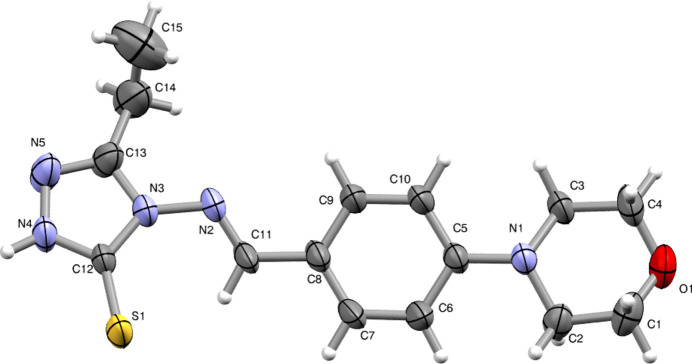

The molecule of the title compound adopts a non-planar geometry. A significant feature is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an R²₂(8) ring motif.

The title compound, C₁₅H₁₉N₅OS, crystallizes in the monoclinic crystal system, space group P2₁/c. The molecule adopts a non-planar geometry. A significant feature of the structure is the puckered six-membered morpholine ring, which adopts a chair conformation. In the crystal, molecules are linked through intermolecular N—H⋯S hydrogen bonds, forming inversion-related dimers with an R²₂(8) ring motif. A Hirshfeld surface analysis was undertaken to quantify the intermolecular interactions that influence the crystal packing.

求助全文

通过发布文献求助，成功后即可免费获取论文全文。去求助
