[超声提取-气相色谱-质谱法鉴定和测定熏香释放气体和颗粒物中的有机化合物]。

Zi-Qi Yue, Lu Jiang, Zhi-Gang Li, Wei Wang, Ya-Wei Wang
{"title":"[超声提取-气相色谱-质谱法鉴定和测定熏香释放气体和颗粒物中的有机化合物]。","authors":"Zi-Qi Yue, Lu Jiang, Zhi-Gang Li, Wei Wang, Ya-Wei Wang","doi":"10.3724/SP.J.1123.2024.10022","DOIUrl":null,"url":null,"abstract":"<p><p>Statistical evidence indicates that individuals spend approximately 90% of their time indoors on a daily basis. A multitude of human activities, including incense burning, cooking, smoking, and the use of electrical appliances, can contribute to indoor air pollution. This phenomenon poses a significant risk of indoor exposure to human health risks. Incense burning, as one of the major indoor pollution sources, has been increasing in use in recent years due to its special effects in religious practices and regional lifestyles. Incense usually consists of herbs, wood powder, bamboo sticks, scented materials, and binder powders, and the specific chemical composition of each type of material is complex due to different uses and manufacturing processes; and the degree of complete combustion, thermal degradation and volatilization processes of different types of incense vary greatly, resulting in the release of gaseous and particulate organic compounds whose compositions are not yet clear. Studies have shown that the emission factors of particulate matter released from incense burning may be much higher than those produced during the combustion of charcoal, wood and cigarettes. The levels of organic pollutants emitted by incense burning, such as aromatic hydrocarbons, esters, ketones, benzenes, and phenols, are much higher than outdoor levels. Prolonged exposure to incense smoke has been shown to cause respiratory damage and potential genotoxicity. Therefore, accurate identification and measurement of the organic pollutants emitted from incense burning is particularly important to accurately assess their environmental and population health risks. Herein, this study established an analytical method based on ultrasonic extraction-gas chromatography-mass spectrometry (GC-MS) for the simultaneous determination of 67 organic compounds in gaseous and particulate emissions from incense burning. These compounds include 29 esters, seven benzene series, 14 phenols, and 17 polycyclic aromatic hydrocarbons (PAHs). Particulate and gaseous components released during indoor incense burning were collected using quartz filter membrane and self-made XAD-2 resin sampling tubes, respectively. Non-targeted analysis of incense components was performed using a GC-quadrupole-Orbitrap high-resolution mass spectrometry (GC-Q-Orbitrap-HRMS) to achieve preliminary identification of trace organic compounds in the incense-burning samples. Subsequently, targeted analysis was conducted using GC-MS in selected ion monitoring (SIM) mode, with quantification performed using the external standard method. Method validation results demonstrated good linearity for all 67 organic compounds within the range of 10 to 500 μg/L, with correlation coefficients (<i>r</i>)≥0.999 0. The limits of detection (LODs) and quantification (LOQs) were ranged from 0.02 to 0.33 µg/m³ and 0.03 to 0.67 µg/m³, respectively. At low, medium, and high spiked levels, the recoveries for the 67 organic compounds in the gaseous phase ranged from 72.7% to 119.0%, with relative standard deviations (RSDs) of 0.9% to 4.1%; for the particulate phase, the recoveries for the 67 organic compounds ranged from 71.5% to 118.9%, with RSDs of 0.7% to 9.5%. The established method was applied to the determination of indoor incense-burning samples (incense sticks and electrically heated incense powder), and the influence of different incineration methods on the types and contents of products was analyzed. The results indicated that during the same burning duration (30 min), the total content of gaseous and particulate organic compounds released from ignited incense sticks was higher than that from electrically heated powdered incense. The particulate organic compounds produced by the ignited incense sticks are mainly phenolics and PAHs, followed by esters, and benzene series. The composition of particulate organic compounds from electrically heated powdered incense was similar to that of incense sticks. A large amount of benzene series were detected in the gaseous organic compounds released by burning incense sticks, and the content was much higher than that of the other three types of organic compounds. The gaseous organic compounds released by electrically heated incense powder are mainly benzene series and phenols, followed by PAHs and esters. Compared with the previously reported related monitoring methods, this method is simpler and more efficient, providing a more convenient technical means for the sensitive screening of gaseous and particulate organic compounds released by incense burning.</p>","PeriodicalId":101336,"journal":{"name":"Se pu = Chinese journal of chromatography","volume":"43 7","pages":"779-792"},"PeriodicalIF":0.0000,"publicationDate":"2025-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12231483/pdf/","citationCount":"0","resultStr":"{\"title\":\"[Identification and determination of organic compounds in the gas and particulate matter released by incense burning by ultrasonic extraction-gas chromatography-mass spectrometry].\",\"authors\":\"Zi-Qi Yue, Lu Jiang, Zhi-Gang Li, Wei Wang, Ya-Wei Wang\",\"doi\":\"10.3724/SP.J.1123.2024.10022\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>Statistical evidence indicates that individuals spend approximately 90% of their time indoors on a daily basis. A multitude of human activities, including incense burning, cooking, smoking, and the use of electrical appliances, can contribute to indoor air pollution. This phenomenon poses a significant risk of indoor exposure to human health risks. Incense burning, as one of the major indoor pollution sources, has been increasing in use in recent years due to its special effects in religious practices and regional lifestyles. Incense usually consists of herbs, wood powder, bamboo sticks, scented materials, and binder powders, and the specific chemical composition of each type of material is complex due to different uses and manufacturing processes; and the degree of complete combustion, thermal degradation and volatilization processes of different types of incense vary greatly, resulting in the release of gaseous and particulate organic compounds whose compositions are not yet clear. Studies have shown that the emission factors of particulate matter released from incense burning may be much higher than those produced during the combustion of charcoal, wood and cigarettes. The levels of organic pollutants emitted by incense burning, such as aromatic hydrocarbons, esters, ketones, benzenes, and phenols, are much higher than outdoor levels. Prolonged exposure to incense smoke has been shown to cause respiratory damage and potential genotoxicity. Therefore, accurate identification and measurement of the organic pollutants emitted from incense burning is particularly important to accurately assess their environmental and population health risks. Herein, this study established an analytical method based on ultrasonic extraction-gas chromatography-mass spectrometry (GC-MS) for the simultaneous determination of 67 organic compounds in gaseous and particulate emissions from incense burning. These compounds include 29 esters, seven benzene series, 14 phenols, and 17 polycyclic aromatic hydrocarbons (PAHs). Particulate and gaseous components released during indoor incense burning were collected using quartz filter membrane and self-made XAD-2 resin sampling tubes, respectively. Non-targeted analysis of incense components was performed using a GC-quadrupole-Orbitrap high-resolution mass spectrometry (GC-Q-Orbitrap-HRMS) to achieve preliminary identification of trace organic compounds in the incense-burning samples. Subsequently, targeted analysis was conducted using GC-MS in selected ion monitoring (SIM) mode, with quantification performed using the external standard method. Method validation results demonstrated good linearity for all 67 organic compounds within the range of 10 to 500 μg/L, with correlation coefficients (<i>r</i>)≥0.999 0. The limits of detection (LODs) and quantification (LOQs) were ranged from 0.02 to 0.33 µg/m³ and 0.03 to 0.67 µg/m³, respectively. At low, medium, and high spiked levels, the recoveries for the 67 organic compounds in the gaseous phase ranged from 72.7% to 119.0%, with relative standard deviations (RSDs) of 0.9% to 4.1%; for the particulate phase, the recoveries for the 67 organic compounds ranged from 71.5% to 118.9%, with RSDs of 0.7% to 9.5%. The established method was applied to the determination of indoor incense-burning samples (incense sticks and electrically heated incense powder), and the influence of different incineration methods on the types and contents of products was analyzed. The results indicated that during the same burning duration (30 min), the total content of gaseous and particulate organic compounds released from ignited incense sticks was higher than that from electrically heated powdered incense. The particulate organic compounds produced by the ignited incense sticks are mainly phenolics and PAHs, followed by esters, and benzene series. The composition of particulate organic compounds from electrically heated powdered incense was similar to that of incense sticks. A large amount of benzene series were detected in the gaseous organic compounds released by burning incense sticks, and the content was much higher than that of the other three types of organic compounds. The gaseous organic compounds released by electrically heated incense powder are mainly benzene series and phenols, followed by PAHs and esters. Compared with the previously reported related monitoring methods, this method is simpler and more efficient, providing a more convenient technical means for the sensitive screening of gaseous and particulate organic compounds released by incense burning.</p>\",\"PeriodicalId\":101336,\"journal\":{\"name\":\"Se pu = Chinese journal of chromatography\",\"volume\":\"43 7\",\"pages\":\"779-792\"},\"PeriodicalIF\":0.0000,\"publicationDate\":\"2025-07-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC12231483/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Se pu = Chinese journal of chromatography\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://doi.org/10.3724/SP.J.1123.2024.10022\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Se pu = Chinese journal of chromatography","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.3724/SP.J.1123.2024.10022","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0

摘要

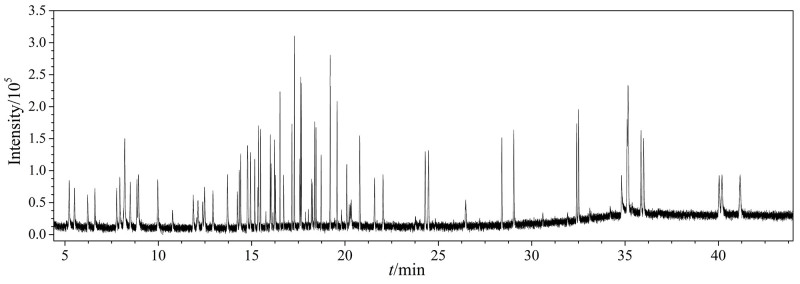

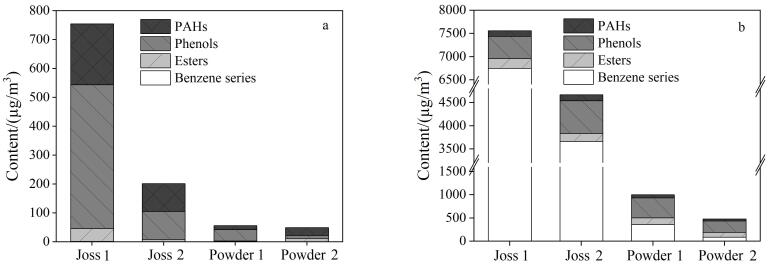

统计数据表明,人们每天大约有90%的时间是在室内度过的。许多人类活动,包括烧香、烹饪、吸烟和使用电器,都可能导致室内空气污染。这一现象对室内接触人类健康构成重大风险。熏香作为室内主要污染源之一,由于其对宗教习俗和地区生活方式的特殊影响,近年来使用量不断增加。熏香通常由草药、木粉、竹棒、香味材料、粘结剂粉末组成,由于用途和制造工艺的不同,每种材料的具体化学成分比较复杂,不同类型的熏香完全燃烧的程度、热降解和挥发过程差异很大,导致气态和颗粒状有机化合物的释放,其成分尚不清楚。研究表明,烧香释放的颗粒物排放因子可能比燃烧木炭、木材和香烟产生的排放因子要高得多。焚香释放出的有机污染物,如芳香烃、酯类、酮类、苯类和酚类,远远高于室外水平。长期接触熏香烟雾已被证明会造成呼吸道损伤和潜在的遗传毒性。因此,准确识别和测量焚香过程中排放的有机污染物对于准确评估其环境和人群健康风险尤为重要。本研究建立了超声提取-气相色谱-质谱(GC-MS)同时测定熏香气体和颗粒物排放中67种有机化合物的分析方法。这些化合物包括29种酯类、7种苯系化合物、14种酚类化合物和17种多环芳烃(PAHs)。采用石英滤膜和自制XAD-2树脂采样管分别采集室内焚香过程中释放的颗粒物和气体成分。采用气相色谱-四极杆-轨道rap高分辨率质谱法(GC-Q-Orbitrap-HRMS)对香火成分进行非靶向分析,初步鉴定了香火样品中的微量有机化合物。随后,在选择的离子监测(SIM)模式下,采用GC-MS进行针对性分析,采用外标法进行定量。方法验证结果表明,67种有机化合物在10 ~ 500 μg/L范围内线性良好,相关系数(r)≥0.999 0。检测限(lod)和定量限(loq)分别为0.02 ~ 0.33µg/m³和0.03 ~ 0.67µg/m³。在低、中、高加标水平下,67种有机化合物气相加标回收率为72.7% ~ 119.0%,相对标准偏差(rsd)为0.9% ~ 4.1%;颗粒相加标回收率为71.5% ~ 118.9%,相对标准偏差(rsd)为0.7% ~ 9.5%。将所建立的方法应用于室内烧香样品(香烛和电热香粉)的测定,分析了不同焚烧方式对产品种类和含量的影响。结果表明,在相同的燃烧时间(30 min)内,点燃的香烛释放的气态和颗粒状有机化合物的总含量高于电加热的香烛。燃烧后产生的颗粒物有机化合物主要是酚类和多环芳烃,其次是酯类和苯系化合物。从电加热的香粉中提取的颗粒有机化合物的组成与香棒相似。在烧香释放的气态有机化合物中检测到大量的苯系化合物,其含量远高于其他三类有机化合物。电加热香粉释放的气态有机化合物主要是苯系物和酚类,其次是多环芳烃和酯类。与以往报道的相关监测方法相比,该方法更简单、更高效,为熏香释放的气态和颗粒物有机化合物的灵敏筛选提供了更便捷的技术手段。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

[Identification and determination of organic compounds in the gas and particulate matter released by incense burning by ultrasonic extraction-gas chromatography-mass spectrometry].

[Identification and determination of organic compounds in the gas and particulate matter released by incense burning by ultrasonic extraction-gas chromatography-mass spectrometry].

[Identification and determination of organic compounds in the gas and particulate matter released by incense burning by ultrasonic extraction-gas chromatography-mass spectrometry].

Statistical evidence indicates that individuals spend approximately 90% of their time indoors on a daily basis. A multitude of human activities, including incense burning, cooking, smoking, and the use of electrical appliances, can contribute to indoor air pollution. This phenomenon poses a significant risk of indoor exposure to human health risks. Incense burning, as one of the major indoor pollution sources, has been increasing in use in recent years due to its special effects in religious practices and regional lifestyles. Incense usually consists of herbs, wood powder, bamboo sticks, scented materials, and binder powders, and the specific chemical composition of each type of material is complex due to different uses and manufacturing processes; and the degree of complete combustion, thermal degradation and volatilization processes of different types of incense vary greatly, resulting in the release of gaseous and particulate organic compounds whose compositions are not yet clear. Studies have shown that the emission factors of particulate matter released from incense burning may be much higher than those produced during the combustion of charcoal, wood and cigarettes. The levels of organic pollutants emitted by incense burning, such as aromatic hydrocarbons, esters, ketones, benzenes, and phenols, are much higher than outdoor levels. Prolonged exposure to incense smoke has been shown to cause respiratory damage and potential genotoxicity. Therefore, accurate identification and measurement of the organic pollutants emitted from incense burning is particularly important to accurately assess their environmental and population health risks. Herein, this study established an analytical method based on ultrasonic extraction-gas chromatography-mass spectrometry (GC-MS) for the simultaneous determination of 67 organic compounds in gaseous and particulate emissions from incense burning. These compounds include 29 esters, seven benzene series, 14 phenols, and 17 polycyclic aromatic hydrocarbons (PAHs). Particulate and gaseous components released during indoor incense burning were collected using quartz filter membrane and self-made XAD-2 resin sampling tubes, respectively. Non-targeted analysis of incense components was performed using a GC-quadrupole-Orbitrap high-resolution mass spectrometry (GC-Q-Orbitrap-HRMS) to achieve preliminary identification of trace organic compounds in the incense-burning samples. Subsequently, targeted analysis was conducted using GC-MS in selected ion monitoring (SIM) mode, with quantification performed using the external standard method. Method validation results demonstrated good linearity for all 67 organic compounds within the range of 10 to 500 μg/L, with correlation coefficients (r)≥0.999 0. The limits of detection (LODs) and quantification (LOQs) were ranged from 0.02 to 0.33 µg/m³ and 0.03 to 0.67 µg/m³, respectively. At low, medium, and high spiked levels, the recoveries for the 67 organic compounds in the gaseous phase ranged from 72.7% to 119.0%, with relative standard deviations (RSDs) of 0.9% to 4.1%; for the particulate phase, the recoveries for the 67 organic compounds ranged from 71.5% to 118.9%, with RSDs of 0.7% to 9.5%. The established method was applied to the determination of indoor incense-burning samples (incense sticks and electrically heated incense powder), and the influence of different incineration methods on the types and contents of products was analyzed. The results indicated that during the same burning duration (30 min), the total content of gaseous and particulate organic compounds released from ignited incense sticks was higher than that from electrically heated powdered incense. The particulate organic compounds produced by the ignited incense sticks are mainly phenolics and PAHs, followed by esters, and benzene series. The composition of particulate organic compounds from electrically heated powdered incense was similar to that of incense sticks. A large amount of benzene series were detected in the gaseous organic compounds released by burning incense sticks, and the content was much higher than that of the other three types of organic compounds. The gaseous organic compounds released by electrically heated incense powder are mainly benzene series and phenols, followed by PAHs and esters. Compared with the previously reported related monitoring methods, this method is simpler and more efficient, providing a more convenient technical means for the sensitive screening of gaseous and particulate organic compounds released by incense burning.
