钠离子电池高性能阳极木质素硬碳表面缺陷和孔隙结构的交联调控

IF 5.5 3区 材料科学 Q2 CHEMISTRY, PHYSICAL
Yizhuang Fang, Menglu Lu, Hanxin Qian, Jiayuan Xiang, Fangfang Tu, Yuanyuan Jiang, Yongping Gan, Xinping He, Hui Huang, Xinhui Xia, Yang Xia, Wenkui Zhang and Jun Zhang*,
{"title":"钠离子电池高性能阳极木质素硬碳表面缺陷和孔隙结构的交联调控","authors":"Yizhuang Fang,&nbsp;Menglu Lu,&nbsp;Hanxin Qian,&nbsp;Jiayuan Xiang,&nbsp;Fangfang Tu,&nbsp;Yuanyuan Jiang,&nbsp;Yongping Gan,&nbsp;Xinping He,&nbsp;Hui Huang,&nbsp;Xinhui Xia,&nbsp;Yang Xia,&nbsp;Wenkui Zhang and Jun Zhang*,&nbsp;","doi":"10.1021/acsaem.5c0082810.1021/acsaem.5c00828","DOIUrl":null,"url":null,"abstract":"<p >Sodium-ion batteries (SIBs) have emerged as a viable alternative to lithium-ion batteries due to abundant sodium resources, low cost, and high safety. While hard carbon stands out as a promising anode material for SIBs, its practical implementation remains constrained by the challenge of simultaneously achieving a high specific capacity and superior initial Coulombic efficiency (ICE). To address this critical need, we propose a microstructure engineering strategy through molecular configuration reconstruction of lignin precursors. By strategically cross-linking oxygen-containing active groups in lignin with polyaromatic ring-enriched phenolic resins, we develop a class of hard carbon materials with an optimized sodium storage architecture. The resultant carbon matrix demonstrates four synergistic structural advantages: (1) enhanced proportion of ordered pseudographitic domains for efficient ion intercalation, (2) expanded interlayer spacing (0.40 nm) facilitating rapid Na<sup>+</sup> diffusion, (3) minimized surface defect density to suppress parasitic reactions, and (4) abundant closed micropores ensuring structural integrity during cycling. These characteristics work synergistically, enabling the efficient intercalation and transport of sodium ions and endowing the materials with an excellent initial Coulombic efficiency (ICE). In this work, when the lignin/phenolic resin mass ratio is 7:3, the reaction product (LP73) reaches the highest degree of cross-linking. The corresponding hard carbon material CLP73 obtained after carbonization exhibits the optimal electrochemical performance with a specific capacity of 321 mAh g<sup>–1</sup> at 30 mA g<sup>–1</sup> and an ICE as high as 92.8%. The CLP73 can maintain a specific capacity of 257 mAh g<sup>–1</sup> after 600 cycles at a high current of 1000 mA g<sup>–1</sup>, with a retention rate of 89.6%, showing good cycle stability. The high capacity and ICE achieved in this work, along with the simple synthesis process, make it suitable for large-scale industrial development.</p>","PeriodicalId":4,"journal":{"name":"ACS Applied Energy Materials","volume":"8 12","pages":"8320–8330 8320–8330"},"PeriodicalIF":5.5000,"publicationDate":"2025-06-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Cross-Linking Strategy To Regulate the Surface Defects and Pore Structures of Lignin-Derived Hard Carbon as High-Performance Anode for Sodium-Ion Batteries\",\"authors\":\"Yizhuang Fang,&nbsp;Menglu Lu,&nbsp;Hanxin Qian,&nbsp;Jiayuan Xiang,&nbsp;Fangfang Tu,&nbsp;Yuanyuan Jiang,&nbsp;Yongping Gan,&nbsp;Xinping He,&nbsp;Hui Huang,&nbsp;Xinhui Xia,&nbsp;Yang Xia,&nbsp;Wenkui Zhang and Jun Zhang*,&nbsp;\",\"doi\":\"10.1021/acsaem.5c0082810.1021/acsaem.5c00828\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Sodium-ion batteries (SIBs) have emerged as a viable alternative to lithium-ion batteries due to abundant sodium resources, low cost, and high safety. While hard carbon stands out as a promising anode material for SIBs, its practical implementation remains constrained by the challenge of simultaneously achieving a high specific capacity and superior initial Coulombic efficiency (ICE). To address this critical need, we propose a microstructure engineering strategy through molecular configuration reconstruction of lignin precursors. By strategically cross-linking oxygen-containing active groups in lignin with polyaromatic ring-enriched phenolic resins, we develop a class of hard carbon materials with an optimized sodium storage architecture. The resultant carbon matrix demonstrates four synergistic structural advantages: (1) enhanced proportion of ordered pseudographitic domains for efficient ion intercalation, (2) expanded interlayer spacing (0.40 nm) facilitating rapid Na<sup>+</sup> diffusion, (3) minimized surface defect density to suppress parasitic reactions, and (4) abundant closed micropores ensuring structural integrity during cycling. These characteristics work synergistically, enabling the efficient intercalation and transport of sodium ions and endowing the materials with an excellent initial Coulombic efficiency (ICE). In this work, when the lignin/phenolic resin mass ratio is 7:3, the reaction product (LP73) reaches the highest degree of cross-linking. The corresponding hard carbon material CLP73 obtained after carbonization exhibits the optimal electrochemical performance with a specific capacity of 321 mAh g<sup>–1</sup> at 30 mA g<sup>–1</sup> and an ICE as high as 92.8%. The CLP73 can maintain a specific capacity of 257 mAh g<sup>–1</sup> after 600 cycles at a high current of 1000 mA g<sup>–1</sup>, with a retention rate of 89.6%, showing good cycle stability. The high capacity and ICE achieved in this work, along with the simple synthesis process, make it suitable for large-scale industrial development.</p>\",\"PeriodicalId\":4,\"journal\":{\"name\":\"ACS Applied Energy Materials\",\"volume\":\"8 12\",\"pages\":\"8320–8330 8320–8330\"},\"PeriodicalIF\":5.5000,\"publicationDate\":\"2025-06-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaem.5c00828\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaem.5c00828","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

钠离子电池具有钠资源丰富、成本低、安全性高等优点,已成为锂离子电池的可行替代品。虽然硬碳是sib极具前景的阳极材料,但其实际应用仍然受到同时实现高比容量和优越初始库仑效率(ICE)的挑战的限制。为了解决这一关键需求,我们提出了一种通过木质素前体分子结构重建的微结构工程策略。通过将木质素中的含氧活性基团与富含多芳环的酚醛树脂进行交联,我们开发了一类具有优化钠存储结构的硬碳材料。所得到的碳基质具有四个协同结构优势:(1)增强了有序伪石墨畴的比例,有利于有效的离子插入;(2)扩大了层间间距(0.40 nm),有利于Na+的快速扩散;(3)最小化了表面缺陷密度,抑制了寄生反应;(4)丰富的封闭微孔确保了循环过程中的结构完整性。这些特性协同作用,使钠离子能够有效地嵌入和传输,并赋予材料良好的初始库仑效率(ICE)。在本研究中,当木质素/酚醛树脂质量比为7:3时,反应产物(LP73)的交联程度最高。碳化后得到的相应硬碳材料CLP73表现出最佳的电化学性能,在30 mA g-1时比容量为321 mAh g-1, ICE高达92.8%。在1000 mA g-1的大电流下,经过600次循环后,CLP73可保持257 mAh g-1的比容量,保持率为89.6%,具有良好的循环稳定性。本工作取得的高容量和ICE,以及简单的合成工艺,使其适合大规模的工业发展。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A Cross-Linking Strategy To Regulate the Surface Defects and Pore Structures of Lignin-Derived Hard Carbon as High-Performance Anode for Sodium-Ion Batteries

A Cross-Linking Strategy To Regulate the Surface Defects and Pore Structures of Lignin-Derived Hard Carbon as High-Performance Anode for Sodium-Ion Batteries

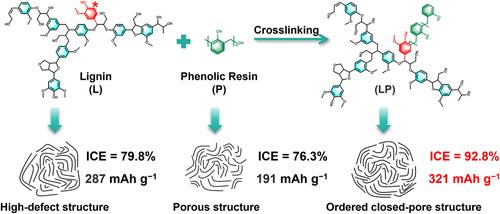

Sodium-ion batteries (SIBs) have emerged as a viable alternative to lithium-ion batteries due to abundant sodium resources, low cost, and high safety. While hard carbon stands out as a promising anode material for SIBs, its practical implementation remains constrained by the challenge of simultaneously achieving a high specific capacity and superior initial Coulombic efficiency (ICE). To address this critical need, we propose a microstructure engineering strategy through molecular configuration reconstruction of lignin precursors. By strategically cross-linking oxygen-containing active groups in lignin with polyaromatic ring-enriched phenolic resins, we develop a class of hard carbon materials with an optimized sodium storage architecture. The resultant carbon matrix demonstrates four synergistic structural advantages: (1) enhanced proportion of ordered pseudographitic domains for efficient ion intercalation, (2) expanded interlayer spacing (0.40 nm) facilitating rapid Na+ diffusion, (3) minimized surface defect density to suppress parasitic reactions, and (4) abundant closed micropores ensuring structural integrity during cycling. These characteristics work synergistically, enabling the efficient intercalation and transport of sodium ions and endowing the materials with an excellent initial Coulombic efficiency (ICE). In this work, when the lignin/phenolic resin mass ratio is 7:3, the reaction product (LP73) reaches the highest degree of cross-linking. The corresponding hard carbon material CLP73 obtained after carbonization exhibits the optimal electrochemical performance with a specific capacity of 321 mAh g–1 at 30 mA g–1 and an ICE as high as 92.8%. The CLP73 can maintain a specific capacity of 257 mAh g–1 after 600 cycles at a high current of 1000 mA g–1, with a retention rate of 89.6%, showing good cycle stability. The high capacity and ICE achieved in this work, along with the simple synthesis process, make it suitable for large-scale industrial development.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Energy Materials
ACS Applied Energy Materials Materials Science-Materials Chemistry
CiteScore
10.30
自引率
6.20%
发文量
1368
期刊介绍: ACS Applied Energy Materials is an interdisciplinary journal publishing original research covering all aspects of materials, engineering, chemistry, physics and biology relevant to energy conversion and storage. The journal is devoted to reports of new and original experimental and theoretical research of an applied nature that integrate knowledge in the areas of materials, engineering, physics, bioscience, and chemistry into important energy applications.
×
