(Nitrito -κ2 O, O ')双(三羟甲基氨基甲烷-液(4-fluoro-phen-yl)磷化氢-κP]银(I)。

IUCrData Pub Date : 2025-04-01 DOI:10.1107/S2414314625002962

Frederick P. Malan , Kariska Potgieter , Reinout Meijboom

{"title":"(Nitrito -κ2 O, O ')双(三羟甲基氨基甲烷-液(4-fluoro-phen-yl)磷化氢-κP]银(I)。","authors":"Frederick P. Malan , Kariska Potgieter , Reinout Meijboom","doi":"10.1107/S2414314625002962","DOIUrl":null,"url":null,"abstract":"<div><div>The significant structural feature in the title AgI complex is the small bite angle of the nitrito ligand [49.80 (5)°], which influences the overall geometry.</div></div><div><div>The molecular structure of the title AgI complex, [Ag(NO2)(C18H12F3P)2], features a distorted tetrahedral geometry about the central AgI atom, with a total range of bond angles spanning from 49.80 (5) to 114.92 (1)°. The distortion arises primarily due to the small bite angle [49.80 (5)°] of the nitrito ligand. The compound crystallizes with one molecule in the asymmetric unit, in the space group P21/n, with Z = 4 and Z′ = 1.<figure><img><ol><li>Download: Download high-res image (364KB)</li><li>Download: Download full-size image</li></ol></figure></div></div>","PeriodicalId":94324,"journal":{"name":"IUCrData","volume":"10 4","pages":""},"PeriodicalIF":0.0000,"publicationDate":"2025-04-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"(Nitrito-κ2O:O′)bis[tris(4-fluorophenyl)phosphine-κP]silver(I)\",\"authors\":\"Frederick P. Malan , Kariska Potgieter , Reinout Meijboom\",\"doi\":\"10.1107/S2414314625002962\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>The significant structural feature in the title AgI complex is the small bite angle of the nitrito ligand [49.80 (5)°], which influences the overall geometry.</div></div><div><div>The molecular structure of the title AgI complex, [Ag(NO2)(C18H12F3P)2], features a distorted tetrahedral geometry about the central AgI atom, with a total range of bond angles spanning from 49.80 (5) to 114.92 (1)°. The distortion arises primarily due to the small bite angle [49.80 (5)°] of the nitrito ligand. The compound crystallizes with one molecule in the asymmetric unit, in the space group P21/n, with Z = 4 and Z′ = 1.<figure><img><ol><li>Download: Download high-res image (364KB)</li><li>Download: Download full-size image</li></ol></figure></div></div>\",\"PeriodicalId\":94324,\"journal\":{\"name\":\"IUCrData\",\"volume\":\"10 4\",\"pages\":\"\"},\"PeriodicalIF\":0.0000,\"publicationDate\":\"2025-04-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"IUCrData\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://www.sciencedirect.com/org/science/article/pii/S2414314625000306\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"\",\"JCRName\":\"\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"IUCrData","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S2414314625000306","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}

引用次数: 0

摘要

标题AgI配合物[Ag(NO2)(C18H12F3P)2]的分子结构具有围绕中心AgI原子的扭曲四面体几何结构，总键角范围为49.80(5)~ 114.92(1)°。畸变主要是由于亚硝基配体的咬角很小[49.80(5)°]。该化合物在P21/n空间群（Z = 4， Z' = 1）的不对称单元中有1个分子结晶。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

查看原文本刊更多论文

(Nitrito-κ2O:O′)bis[tris(4-fluorophenyl)phosphine-κP]silver(I)

The significant structural feature in the title Ag^I complex is the small bite angle of the nitrito ligand [49.80 (5)°], which influences the overall geometry.

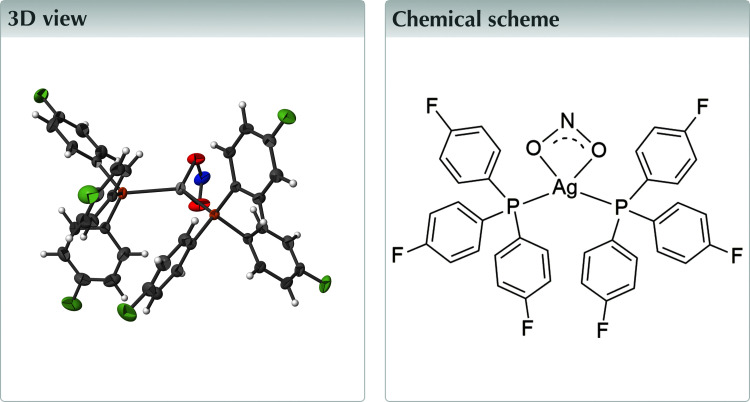

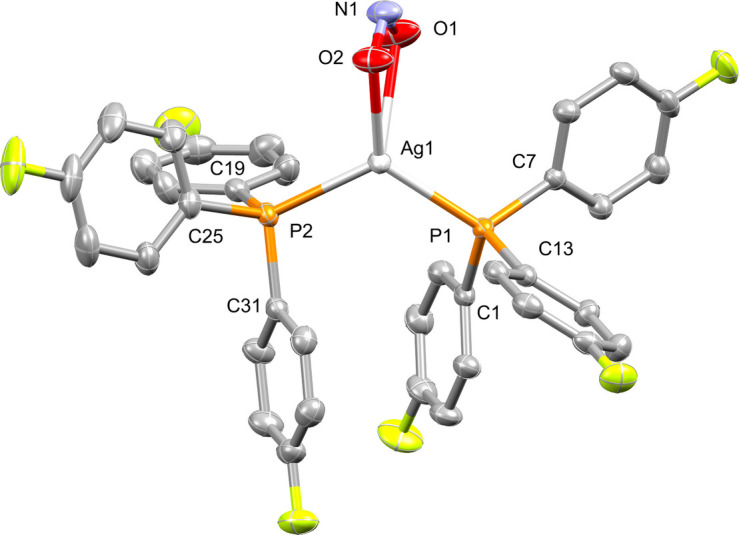

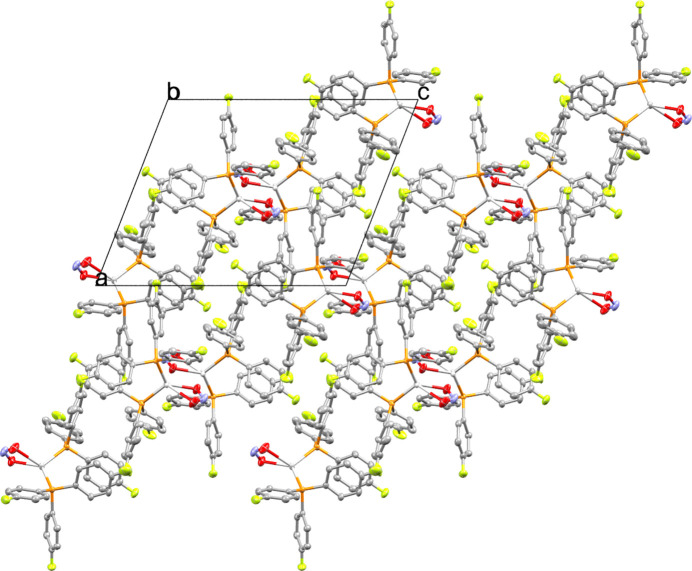

The molecular structure of the title Ag^I complex, [Ag(NO₂)(C₁₈H₁₂F₃P)₂], features a distorted tetrahedral geometry about the central Ag^I atom, with a total range of bond angles spanning from 49.80 (5) to 114.92 (1)°. The distortion arises primarily due to the small bite angle [49.80 (5)°] of the nitrito ligand. The compound crystallizes with one molecule in the asymmetric unit, in the space group P2₁/n, with Z = 4 and Z′ = 1.

Download: Download high-res image (364KB)
Download: Download full-size image
