Hanxiang Wu, Jianfeng Guo, Hua Xu, Zhaxi Suonan, Shuo Mi, Le Wang, Shanshan Chen, Rui Xu, Wei Ji, Zhihai Cheng, Fei Pang
{"title":"门辅助化学气相沉积法合成亚毫米超薄二维铁磁Cr5Te8纳米片","authors":"Hanxiang Wu, Jianfeng Guo, Hua Xu, Zhaxi Suonan, Shuo Mi, Le Wang, Shanshan Chen, Rui Xu, Wei Ji, Zhihai Cheng, Fei Pang","doi":"10.1021/acs.jpcc.4c08278","DOIUrl":null,"url":null,"abstract":"Two-dimensional (2D) non-van der Waals (vdW) Cr<sub>5</sub>Te<sub>8</sub> has attracted widespread research interest for its air stability and thickness-dependent magnetic properties. However, the growth of large-scale ultrathin 2D Cr<sub>5</sub>Te<sub>8</sub> remains challenging. Here, we selected GaTe powder as the precursor to supply Te monomers and fabricated submillimeter 2D Cr<sub>5</sub>Te<sub>8</sub> nanosheets. By optimizing the growth temperature and source–substrate distance (<i>D</i><sub>SS</sub>), we successfully achieved Cr<sub>5</sub>Te<sub>8</sub> nanosheets with a lateral size of up to ∼0.19 mm and corresponding thickness down to ∼4.8 nm. The role of GaTe is to enhance the efficient Te atom concentration, which promotes the lateral growth of Cr<sub>5</sub>Te<sub>8</sub> nanosheets. Furthermore, our findings reveal the appearance of Cr<sub>5</sub>Te<sub>8</sub> nanosheets exhibiting serrated edges and a stacked structure like those of wedding cakes. Magnetic property measurement revealed the intense out-of-plane ferromagnetism in Cr<sub>5</sub>Te<sub>8</sub>, with a Curie temperature (<i>T</i><sub>C</sub>) of 172 K. This work paves the way for the controllable growth of submillimeter ultrathin 2D ferromagnetic crystals and lays the foundation for the future synthesis of millimeter ultrathin ferromagnets.","PeriodicalId":61,"journal":{"name":"The Journal of Physical Chemistry C","volume":"116 1","pages":""},"PeriodicalIF":3.2000,"publicationDate":"2025-05-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Controllable Synthesis of Submillimeter Ultrathin Two-Dimensional Ferromagnetic Cr5Te8 Nanosheets by GaTe-Assisted Chemical Vapor Deposition\",\"authors\":\"Hanxiang Wu, Jianfeng Guo, Hua Xu, Zhaxi Suonan, Shuo Mi, Le Wang, Shanshan Chen, Rui Xu, Wei Ji, Zhihai Cheng, Fei Pang\",\"doi\":\"10.1021/acs.jpcc.4c08278\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Two-dimensional (2D) non-van der Waals (vdW) Cr<sub>5</sub>Te<sub>8</sub> has attracted widespread research interest for its air stability and thickness-dependent magnetic properties. However, the growth of large-scale ultrathin 2D Cr<sub>5</sub>Te<sub>8</sub> remains challenging. Here, we selected GaTe powder as the precursor to supply Te monomers and fabricated submillimeter 2D Cr<sub>5</sub>Te<sub>8</sub> nanosheets. By optimizing the growth temperature and source–substrate distance (<i>D</i><sub>SS</sub>), we successfully achieved Cr<sub>5</sub>Te<sub>8</sub> nanosheets with a lateral size of up to ∼0.19 mm and corresponding thickness down to ∼4.8 nm. The role of GaTe is to enhance the efficient Te atom concentration, which promotes the lateral growth of Cr<sub>5</sub>Te<sub>8</sub> nanosheets. Furthermore, our findings reveal the appearance of Cr<sub>5</sub>Te<sub>8</sub> nanosheets exhibiting serrated edges and a stacked structure like those of wedding cakes. Magnetic property measurement revealed the intense out-of-plane ferromagnetism in Cr<sub>5</sub>Te<sub>8</sub>, with a Curie temperature (<i>T</i><sub>C</sub>) of 172 K. This work paves the way for the controllable growth of submillimeter ultrathin 2D ferromagnetic crystals and lays the foundation for the future synthesis of millimeter ultrathin ferromagnets.\",\"PeriodicalId\":61,\"journal\":{\"name\":\"The Journal of Physical Chemistry C\",\"volume\":\"116 1\",\"pages\":\"\"},\"PeriodicalIF\":3.2000,\"publicationDate\":\"2025-05-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"The Journal of Physical Chemistry C\",\"FirstCategoryId\":\"1\",\"ListUrlMain\":\"https://doi.org/10.1021/acs.jpcc.4c08278\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"The Journal of Physical Chemistry C","FirstCategoryId":"1","ListUrlMain":"https://doi.org/10.1021/acs.jpcc.4c08278","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
Controllable Synthesis of Submillimeter Ultrathin Two-Dimensional Ferromagnetic Cr5Te8 Nanosheets by GaTe-Assisted Chemical Vapor Deposition

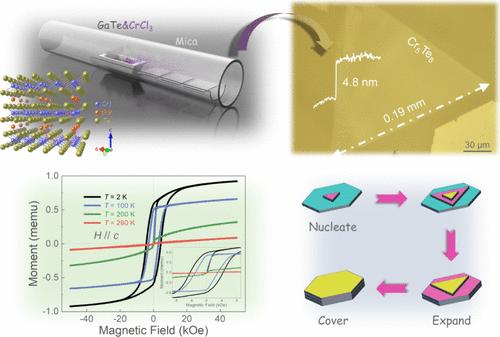

Two-dimensional (2D) non-van der Waals (vdW) Cr5Te8 has attracted widespread research interest for its air stability and thickness-dependent magnetic properties. However, the growth of large-scale ultrathin 2D Cr5Te8 remains challenging. Here, we selected GaTe powder as the precursor to supply Te monomers and fabricated submillimeter 2D Cr5Te8 nanosheets. By optimizing the growth temperature and source–substrate distance (DSS), we successfully achieved Cr5Te8 nanosheets with a lateral size of up to ∼0.19 mm and corresponding thickness down to ∼4.8 nm. The role of GaTe is to enhance the efficient Te atom concentration, which promotes the lateral growth of Cr5Te8 nanosheets. Furthermore, our findings reveal the appearance of Cr5Te8 nanosheets exhibiting serrated edges and a stacked structure like those of wedding cakes. Magnetic property measurement revealed the intense out-of-plane ferromagnetism in Cr5Te8, with a Curie temperature (TC) of 172 K. This work paves the way for the controllable growth of submillimeter ultrathin 2D ferromagnetic crystals and lays the foundation for the future synthesis of millimeter ultrathin ferromagnets.
