基于1H/27Al核磁共振交叉签名和DFT建模的Facet和edge特异性γ-Al2O3表面位点分类和识别

IF 15.6 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Domenico Gioffrè, Pierre Florian*, Thomas Pigeon*, Pascal Raybaud, Céline Chizallet and Christophe Copéret*,
{"title":"基于1H/27Al核磁共振交叉签名和DFT建模的Facet和edge特异性γ-Al2O3表面位点分类和识别","authors":"Domenico Gioffrè,&nbsp;Pierre Florian*,&nbsp;Thomas Pigeon*,&nbsp;Pascal Raybaud,&nbsp;Céline Chizallet and Christophe Copéret*,&nbsp;","doi":"10.1021/jacs.4c1735810.1021/jacs.4c17358","DOIUrl":null,"url":null,"abstract":"<p >γ-Al<sub>2</sub>O<sub>3</sub> is used as both a catalyst and a support for catalytic active phases. The properties of γ-Al<sub>2</sub>O<sub>3</sub> have been ascribed to specific surface sites, with varying Al coordination number, acidity, and basicity, depending on the morphology of the material. Here, we combine surface-specific <sup>27</sup>Al{<sup>1</sup>H} 2D high-field NMR (28.2T, 1.2 GHz for <sup>1</sup>H frequency) at fast MAS (50 kHz) to observe four main distinct families of surface Al–OH sites. Comparing the measured NMR signatures (<sup>27</sup>Al δ<sub>iso</sub>, C<sub>Q</sub>, and <sup>1</sup>H δ<sub>iso</sub>) to computed values from a large range of structural DFT models enables to identify specific edge and facet Al–OH surface sites in γ-Al<sub>2</sub>O<sub>3</sub>, including a distinct <sup>[4]</sup>Al–OH site with an unprecedented C<sub>Q</sub> approaching 18 MHz. This molecular-level description of alumina surfaces opens new opportunities to understand its unique properties, such as the stabilization of small particles down to single atoms, central to catalytic processes.</p>","PeriodicalId":49,"journal":{"name":"Journal of the American Chemical Society","volume":"147 8","pages":"6934–6941 6934–6941"},"PeriodicalIF":15.6000,"publicationDate":"2025-02-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Classification and Identification of Facet- and Edge-Specific γ-Al2O3 Surface Sites from 1H/27Al NMR Cross-Signatures and DFT Modeling\",\"authors\":\"Domenico Gioffrè,&nbsp;Pierre Florian*,&nbsp;Thomas Pigeon*,&nbsp;Pascal Raybaud,&nbsp;Céline Chizallet and Christophe Copéret*,&nbsp;\",\"doi\":\"10.1021/jacs.4c1735810.1021/jacs.4c17358\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >γ-Al<sub>2</sub>O<sub>3</sub> is used as both a catalyst and a support for catalytic active phases. The properties of γ-Al<sub>2</sub>O<sub>3</sub> have been ascribed to specific surface sites, with varying Al coordination number, acidity, and basicity, depending on the morphology of the material. Here, we combine surface-specific <sup>27</sup>Al{<sup>1</sup>H} 2D high-field NMR (28.2T, 1.2 GHz for <sup>1</sup>H frequency) at fast MAS (50 kHz) to observe four main distinct families of surface Al–OH sites. Comparing the measured NMR signatures (<sup>27</sup>Al δ<sub>iso</sub>, C<sub>Q</sub>, and <sup>1</sup>H δ<sub>iso</sub>) to computed values from a large range of structural DFT models enables to identify specific edge and facet Al–OH surface sites in γ-Al<sub>2</sub>O<sub>3</sub>, including a distinct <sup>[4]</sup>Al–OH site with an unprecedented C<sub>Q</sub> approaching 18 MHz. This molecular-level description of alumina surfaces opens new opportunities to understand its unique properties, such as the stabilization of small particles down to single atoms, central to catalytic processes.</p>\",\"PeriodicalId\":49,\"journal\":{\"name\":\"Journal of the American Chemical Society\",\"volume\":\"147 8\",\"pages\":\"6934–6941 6934–6941\"},\"PeriodicalIF\":15.6000,\"publicationDate\":\"2025-02-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of the American Chemical Society\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/jacs.4c17358\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of the American Chemical Society","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/jacs.4c17358","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

用γ-Al2O3作为催化剂和催化活性相的载体。γ-Al2O3的性能归因于特定的表面位置,根据材料的形态,具有不同的Al配位数、酸度和碱度。在这里,我们在快速MAS (50 kHz)下结合表面特异性27Al{1H} 2D高场核磁共振(28.2T, 1H频率1.2 GHz)来观察表面Al-OH位点的四个主要不同家族。将测量的核磁共振特征(27Al δiso, CQ和1H δiso)与大范围结构DFT模型的计算值进行比较,可以识别γ-Al2O3中特定的边缘和面Al-OH表面位点,包括独特的[4]Al-OH位点,其CQ前所未有地接近18 MHz。这种对氧化铝表面的分子水平描述为了解其独特的性质提供了新的机会,例如小颗粒到单原子的稳定,这是催化过程的核心。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Classification and Identification of Facet- and Edge-Specific γ-Al2O3 Surface Sites from 1H/27Al NMR Cross-Signatures and DFT Modeling

Classification and Identification of Facet- and Edge-Specific γ-Al2O3 Surface Sites from 1H/27Al NMR Cross-Signatures and DFT Modeling

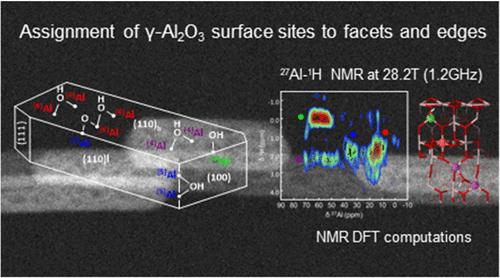

γ-Al2O3 is used as both a catalyst and a support for catalytic active phases. The properties of γ-Al2O3 have been ascribed to specific surface sites, with varying Al coordination number, acidity, and basicity, depending on the morphology of the material. Here, we combine surface-specific 27Al{1H} 2D high-field NMR (28.2T, 1.2 GHz for 1H frequency) at fast MAS (50 kHz) to observe four main distinct families of surface Al–OH sites. Comparing the measured NMR signatures (27Al δiso, CQ, and 1H δiso) to computed values from a large range of structural DFT models enables to identify specific edge and facet Al–OH surface sites in γ-Al2O3, including a distinct [4]Al–OH site with an unprecedented CQ approaching 18 MHz. This molecular-level description of alumina surfaces opens new opportunities to understand its unique properties, such as the stabilization of small particles down to single atoms, central to catalytic processes.
