Detergent/surfactant retention during ultrafiltration in the formulation of biotherapeutics.

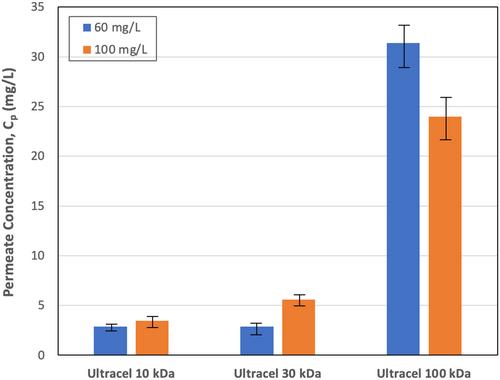

Surfactants like polysorbate (Tween®) are commonly used as excipients in the production of monoclonal antibodies and other recombinant proteins. The retention behavior of these excipients in the final ultrafiltration step can be difficult to predict due to the presence of both monomers and micelles. This study examined the retention of polysorbate during ultrafiltration through cellulose and polyethersulfone membranes with nominal molecular weight cutoffs of 10, 30, and 100 kDa. Novel flux stepping experiments were performed to examine the effects of concentration polarization on surfactant transmission. Polysorbate 20 transmission through the 30 kDa membrane was a strong function of the surfactant concentration, decreasing from nearly 100% for a 2.5 mg/L solution to <10% for a 50 mg/L solution due to high retention of the micelles. Polysorbate transmission was lower for the polyethersulfone membrane due to polysorbate adsorption. A simple mathematical model was developed to describe the polysorbate transmission accounting for the effects of concentration polarization as well as the presence of surfactant monomers and micelles. Model calculations were in good agreement with the experimental data, providing a framework for the analysis and design of ultrafiltration/diafiltration processes for biopharmaceutical formulations containing surfactants.
