设计固体电解质相间结构,提高锂离子电池的高倍率循环和温度适应性

IF 7.4 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Zhongming Wang, Zhiyuan He, Zhongsheng Wang, Kecheng Long, Jixu Yang, Shaozhen Huang, Zhibin Wu, Lin Mei and Libao Chen
{"title":"设计固体电解质相间结构,提高锂离子电池的高倍率循环和温度适应性","authors":"Zhongming Wang, Zhiyuan He, Zhongsheng Wang, Kecheng Long, Jixu Yang, Shaozhen Huang, Zhibin Wu, Lin Mei and Libao Chen","doi":"10.1039/D4SC07916G","DOIUrl":null,"url":null,"abstract":"<p >In overcoming the barrier of rapid Li<small><sup>+</sup></small> transfer in lithium-ion batteries at extreme temperatures, the desolvation process and interfacial charge transport play critical roles. However, tuning the solvation structure and designing a kinetically stable electrode–electrolyte interface to achieve high-rate charging and discharging remain a challenge. Here, a lithium nonafluoro-1-butanesulfonate (NFSALi) additive is introduced to optimize stability and the robust solid electrolyte interface film (SEI), realizing a rapid Li<small><sup>+</sup></small> transfer process and the structural integrity of electrode materials. The NFSALi-derived thinner, fluorine-rich, and sulfur-containing SEI in nitrile-assisted carbonate electrolytes effectively suppresses the decomposition of valeronitrile solvent during high-rate cycling and wide-temperature operation (−40–55 °C). More importantly, the graphite‖LiNi<small><sub>0.5</sub></small>Co<small><sub>0.2</sub></small>Mn<small><sub>0.3</sub></small>O<small><sub>2</sub></small> pouch cell demonstrates a capacity retention of 66.88% after 200 high-rate cycles with 3C charging and 5C discharging under a high-temperature condition of 55 °C. This work provides significant guidance to develop inorganic-rich interfacial chemistry for lithium-ion batteries under extreme operating conditions.</p>","PeriodicalId":9909,"journal":{"name":"Chemical Science","volume":" 8","pages":" 3571-3579"},"PeriodicalIF":7.4000,"publicationDate":"2025-01-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://pubs.rsc.org/en/content/articlepdf/2025/sc/d4sc07916g?page=search","citationCount":"0","resultStr":"{\"title\":\"Engineering the solid electrolyte interphase for enhancing high-rate cycling and temperature adaptability of lithium-ion batteries†\",\"authors\":\"Zhongming Wang, Zhiyuan He, Zhongsheng Wang, Kecheng Long, Jixu Yang, Shaozhen Huang, Zhibin Wu, Lin Mei and Libao Chen\",\"doi\":\"10.1039/D4SC07916G\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In overcoming the barrier of rapid Li<small><sup>+</sup></small> transfer in lithium-ion batteries at extreme temperatures, the desolvation process and interfacial charge transport play critical roles. However, tuning the solvation structure and designing a kinetically stable electrode–electrolyte interface to achieve high-rate charging and discharging remain a challenge. Here, a lithium nonafluoro-1-butanesulfonate (NFSALi) additive is introduced to optimize stability and the robust solid electrolyte interface film (SEI), realizing a rapid Li<small><sup>+</sup></small> transfer process and the structural integrity of electrode materials. The NFSALi-derived thinner, fluorine-rich, and sulfur-containing SEI in nitrile-assisted carbonate electrolytes effectively suppresses the decomposition of valeronitrile solvent during high-rate cycling and wide-temperature operation (−40–55 °C). More importantly, the graphite‖LiNi<small><sub>0.5</sub></small>Co<small><sub>0.2</sub></small>Mn<small><sub>0.3</sub></small>O<small><sub>2</sub></small> pouch cell demonstrates a capacity retention of 66.88% after 200 high-rate cycles with 3C charging and 5C discharging under a high-temperature condition of 55 °C. This work provides significant guidance to develop inorganic-rich interfacial chemistry for lithium-ion batteries under extreme operating conditions.</p>\",\"PeriodicalId\":9909,\"journal\":{\"name\":\"Chemical Science\",\"volume\":\" 8\",\"pages\":\" 3571-3579\"},\"PeriodicalIF\":7.4000,\"publicationDate\":\"2025-01-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://pubs.rsc.org/en/content/articlepdf/2025/sc/d4sc07916g?page=search\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Chemical Science\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/sc/d4sc07916g\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Science","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/sc/d4sc07916g","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

在克服极端温度下锂离子电池中Li+快速转移的障碍中,脱溶过程和界面电荷输运起着关键作用。然而,调整溶剂化结构和设计动力学稳定的电极-电解质界面以实现高倍率充放电仍然是一个挑战。本文引入非氟-1-丁烷磺酸锂(NFSALi)添加剂,优化固体电解质界面膜(SEI)的稳定性和鲁棒性,实现Li+的快速转移过程和电极材料的结构完整性。在高速率循环和宽温度(- 40~55℃)条件下,由nfsli衍生的稀释剂、富氟、含硫的腈辅助碳酸盐电解质SEI能有效抑制戊腈溶剂的分解。更重要的是,graphiteǁLiNi0.5Co0.2Mn0.3O2袋状电池在55°C高温条件下,在3℃充电和5℃放电200次高倍率循环后,容量保持率达到66.88%。这项工作对开发极端工作条件下锂离子电池的富无机界面化学具有重要的指导意义。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Engineering the solid electrolyte interphase for enhancing high-rate cycling and temperature adaptability of lithium-ion batteries†

Engineering the solid electrolyte interphase for enhancing high-rate cycling and temperature adaptability of lithium-ion batteries†

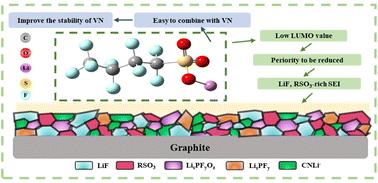

In overcoming the barrier of rapid Li+ transfer in lithium-ion batteries at extreme temperatures, the desolvation process and interfacial charge transport play critical roles. However, tuning the solvation structure and designing a kinetically stable electrode–electrolyte interface to achieve high-rate charging and discharging remain a challenge. Here, a lithium nonafluoro-1-butanesulfonate (NFSALi) additive is introduced to optimize stability and the robust solid electrolyte interface film (SEI), realizing a rapid Li+ transfer process and the structural integrity of electrode materials. The NFSALi-derived thinner, fluorine-rich, and sulfur-containing SEI in nitrile-assisted carbonate electrolytes effectively suppresses the decomposition of valeronitrile solvent during high-rate cycling and wide-temperature operation (−40–55 °C). More importantly, the graphite‖LiNi0.5Co0.2Mn0.3O2 pouch cell demonstrates a capacity retention of 66.88% after 200 high-rate cycles with 3C charging and 5C discharging under a high-temperature condition of 55 °C. This work provides significant guidance to develop inorganic-rich interfacial chemistry for lithium-ion batteries under extreme operating conditions.
