节能干燥剂空调的超坚固Zr(IV)金属-有机框架设计

IF 15.6 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Wei Gong, Haomiao Xie, Kyung Ho Cho, Xianhui Tang, Jaedeuk Park, Zhijie Chen, Jinqiao Dong, Omar K. Farha, Yong Cui
{"title":"节能干燥剂空调的超坚固Zr(IV)金属-有机框架设计","authors":"Wei Gong, Haomiao Xie, Kyung Ho Cho, Xianhui Tang, Jaedeuk Park, Zhijie Chen, Jinqiao Dong, Omar K. Farha, Yong Cui","doi":"10.1021/jacs.4c15087","DOIUrl":null,"url":null,"abstract":"Air-conditioning systems, composed mainly of humidity control and heat reallocation units, play a pivotal role in upholding superior air quality and human well-being across diverse environments ranging from international space stations and pharmacies to granaries and cultural relic preservation sites, and to commercial and residential buildings. The adoption of sorbent water as the working pair and low-grade renewable or waste heat in adsorption-driven air-conditioning presents a state-of-the-art solution, notably for its energy efficiency and eco-friendliness vis-à-vis conventional electricity-driven vapor compression cycles. Here, we introduce a rational π-extension strategy to engineer an ultrarobust and highly porous zirconium metal–organic framework (Zr-MOF). This MOF sorbent showcases hysteresis-free S-shaped water sorption isotherms, characterized by a rapid ascent within the 40–60% relative humidity range with a working capacity of 0.63 g g<sup>–1</sup>, thus facilitating intelligent indoor humidity regulation. Moreover, we demonstrate, for the first time, that this material with such distinctive isotherms can yield a 10 °C temperature lift between ambient and chiller output with a high cooling capacity of 336 kW h m<sup>–3</sup> per cycle, even at exceptionally low driving temperatures (below 50 °C), while also delivering a substantial coefficient of performance of 0.96. This material is amenable to scale-up and is chemically ultrastable that can endure strong acids and be cycled for at least 200 runs without compromising any of its capacity. These exceptional attributes signify the viability of this material as a pragmatic alternative for deployment in energy-efficient desiccant air-conditioning systems, particularly in hot and humid climatic regions.","PeriodicalId":49,"journal":{"name":"Journal of the American Chemical Society","volume":"19 1","pages":""},"PeriodicalIF":15.6000,"publicationDate":"2024-12-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Architecting Ultra-Robust Zr(IV) Metal–Organic Framework for Energy-Efficient Desiccant Air Conditioning\",\"authors\":\"Wei Gong, Haomiao Xie, Kyung Ho Cho, Xianhui Tang, Jaedeuk Park, Zhijie Chen, Jinqiao Dong, Omar K. Farha, Yong Cui\",\"doi\":\"10.1021/jacs.4c15087\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Air-conditioning systems, composed mainly of humidity control and heat reallocation units, play a pivotal role in upholding superior air quality and human well-being across diverse environments ranging from international space stations and pharmacies to granaries and cultural relic preservation sites, and to commercial and residential buildings. The adoption of sorbent water as the working pair and low-grade renewable or waste heat in adsorption-driven air-conditioning presents a state-of-the-art solution, notably for its energy efficiency and eco-friendliness vis-à-vis conventional electricity-driven vapor compression cycles. Here, we introduce a rational π-extension strategy to engineer an ultrarobust and highly porous zirconium metal–organic framework (Zr-MOF). This MOF sorbent showcases hysteresis-free S-shaped water sorption isotherms, characterized by a rapid ascent within the 40–60% relative humidity range with a working capacity of 0.63 g g<sup>–1</sup>, thus facilitating intelligent indoor humidity regulation. Moreover, we demonstrate, for the first time, that this material with such distinctive isotherms can yield a 10 °C temperature lift between ambient and chiller output with a high cooling capacity of 336 kW h m<sup>–3</sup> per cycle, even at exceptionally low driving temperatures (below 50 °C), while also delivering a substantial coefficient of performance of 0.96. This material is amenable to scale-up and is chemically ultrastable that can endure strong acids and be cycled for at least 200 runs without compromising any of its capacity. These exceptional attributes signify the viability of this material as a pragmatic alternative for deployment in energy-efficient desiccant air-conditioning systems, particularly in hot and humid climatic regions.\",\"PeriodicalId\":49,\"journal\":{\"name\":\"Journal of the American Chemical Society\",\"volume\":\"19 1\",\"pages\":\"\"},\"PeriodicalIF\":15.6000,\"publicationDate\":\"2024-12-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of the American Chemical Society\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1021/jacs.4c15087\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of the American Chemical Society","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/jacs.4c15087","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

空调系统主要由湿度控制和热量重新分配单元组成,在各种环境中发挥着关键作用,从国际空间站和药房到粮仓和文物保护地点,以及商业和住宅建筑,都能保持良好的空气质量和人类福祉。在吸附驱动的空调中,采用吸附剂水作为工作对和低品位的可再生或废热,这是一种最先进的解决方案,特别是与-à-vis传统的电力驱动蒸汽压缩循环相比,它的能源效率和生态友好性。在此,我们引入了一种合理π-扩展策略来设计一种超坚固、高多孔的锆金属有机骨架(Zr-MOF)。该MOF吸附剂具有无滞后的s型吸水等温线,在40-60%相对湿度范围内快速上升,工作容量为0.63 g - 1,有利于室内湿度的智能调节。此外,我们首次证明,即使在极低的驾驶温度(低于50°C)下,这种具有如此独特等温线的材料也可以在环境和制冷机输出之间产生10°C的温度提升,每循环具有336 kW h m-3的高制冷量,同时还提供0.96的可观性能系数。这种材料易于放大,具有化学超稳定性,可以承受强酸,并且可以循环运行至少200次而不影响其容量。这些特殊的属性表明,这种材料的可行性作为一种实用的替代部署在节能干燥剂空调系统,特别是在炎热和潮湿的气候地区。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Architecting Ultra-Robust Zr(IV) Metal–Organic Framework for Energy-Efficient Desiccant Air Conditioning

Architecting Ultra-Robust Zr(IV) Metal–Organic Framework for Energy-Efficient Desiccant Air Conditioning

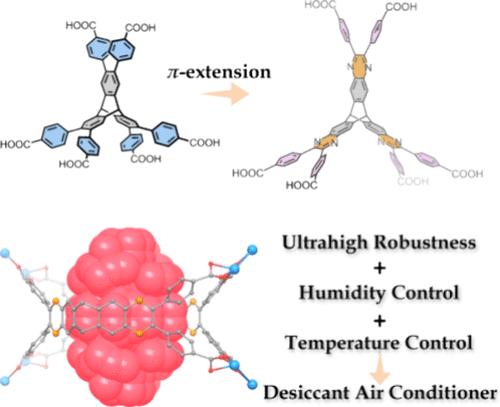

Air-conditioning systems, composed mainly of humidity control and heat reallocation units, play a pivotal role in upholding superior air quality and human well-being across diverse environments ranging from international space stations and pharmacies to granaries and cultural relic preservation sites, and to commercial and residential buildings. The adoption of sorbent water as the working pair and low-grade renewable or waste heat in adsorption-driven air-conditioning presents a state-of-the-art solution, notably for its energy efficiency and eco-friendliness vis-à-vis conventional electricity-driven vapor compression cycles. Here, we introduce a rational π-extension strategy to engineer an ultrarobust and highly porous zirconium metal–organic framework (Zr-MOF). This MOF sorbent showcases hysteresis-free S-shaped water sorption isotherms, characterized by a rapid ascent within the 40–60% relative humidity range with a working capacity of 0.63 g g–1, thus facilitating intelligent indoor humidity regulation. Moreover, we demonstrate, for the first time, that this material with such distinctive isotherms can yield a 10 °C temperature lift between ambient and chiller output with a high cooling capacity of 336 kW h m–3 per cycle, even at exceptionally low driving temperatures (below 50 °C), while also delivering a substantial coefficient of performance of 0.96. This material is amenable to scale-up and is chemically ultrastable that can endure strong acids and be cycled for at least 200 runs without compromising any of its capacity. These exceptional attributes signify the viability of this material as a pragmatic alternative for deployment in energy-efficient desiccant air-conditioning systems, particularly in hot and humid climatic regions.
