增强 NiCoS@NiCo(CH3COO)x 的异质界面耦合,使其成为高效、长期稳定的氧进化反应电催化剂

IF 5.5 3区 材料科学 Q2 CHEMISTRY, PHYSICAL
Zhengyu Yan, Liping Wang, Songbiao Tian, Yongquan Wei and Junting Sun*,
{"title":"增强 NiCoS@NiCo(CH3COO)x 的异质界面耦合,使其成为高效、长期稳定的氧进化反应电催化剂","authors":"Zhengyu Yan,&nbsp;Liping Wang,&nbsp;Songbiao Tian,&nbsp;Yongquan Wei and Junting Sun*,&nbsp;","doi":"10.1021/acsaem.4c0211110.1021/acsaem.4c02111","DOIUrl":null,"url":null,"abstract":"<p >Regulating the interfacial coupling of core–shell structured electrocatalysts is critical for enhancing the electrocatalytic performance toward oxygen evolution reaction (OER). In this work, 1D NiCo-LDH (layered double hydroxide) and NiCo oxides were selected as a model to study the effect of interlamellar bonding strength on the structure and performance of the as-synthesized 1D NiCoS@NiCo(CH<sub>3</sub>COO)<sub><i>x</i></sub> (NCS@COAC). It was revealed that the sulfides obtained from NiCo-LDH and NiCo oxide exhibit different crystallinities, which in turn diversifies the morphology of NCS@COAC and P-NCS@COAC. In particular, the low crystallinity of NCS results in the Kendall effect between CH<sub>3</sub>COO<sup>–</sup> and S<sup>2–</sup>, leading to the formation of a hierarchical core–shell structure of NCS@COAC that is composed of nanorod and nanotube structures. The appearance of nanotubes increases the ratio of accessible active sites, facilitating the proceeding of the OER. In addition, the interaction between CH<sub>3</sub>COO<sup>–</sup> and S<sup>2–</sup> regulates the local chemical environment of Co/Ni, increasing the density of high-valent Co, especially for NCS@COAC obtained from hydroxides. Moreover, the formation of a core–shell structure also inhibits the leaching of S<sup>2–</sup> in the OER, which is beneficial for maintaining the 1D core–shell structure. As a result, NCS@COAC delivers a decreased overpotential of 23 mV lower than that of P-NCS@COAC at the current density of 20 mA cm<sup>–2</sup> and superior stability with retention of the original current after testing for 100 h.</p>","PeriodicalId":4,"journal":{"name":"ACS Applied Energy Materials","volume":"7 22","pages":"10474–10486 10474–10486"},"PeriodicalIF":5.5000,"publicationDate":"2024-11-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Enhanced Heterogeneous Interfacial Coupling of NiCoS@NiCo(CH3COO)x as Efficient and Long-term Stable Electrocatalysts for Oxygen Evolution Reaction\",\"authors\":\"Zhengyu Yan,&nbsp;Liping Wang,&nbsp;Songbiao Tian,&nbsp;Yongquan Wei and Junting Sun*,&nbsp;\",\"doi\":\"10.1021/acsaem.4c0211110.1021/acsaem.4c02111\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Regulating the interfacial coupling of core–shell structured electrocatalysts is critical for enhancing the electrocatalytic performance toward oxygen evolution reaction (OER). In this work, 1D NiCo-LDH (layered double hydroxide) and NiCo oxides were selected as a model to study the effect of interlamellar bonding strength on the structure and performance of the as-synthesized 1D NiCoS@NiCo(CH<sub>3</sub>COO)<sub><i>x</i></sub> (NCS@COAC). It was revealed that the sulfides obtained from NiCo-LDH and NiCo oxide exhibit different crystallinities, which in turn diversifies the morphology of NCS@COAC and P-NCS@COAC. In particular, the low crystallinity of NCS results in the Kendall effect between CH<sub>3</sub>COO<sup>–</sup> and S<sup>2–</sup>, leading to the formation of a hierarchical core–shell structure of NCS@COAC that is composed of nanorod and nanotube structures. The appearance of nanotubes increases the ratio of accessible active sites, facilitating the proceeding of the OER. In addition, the interaction between CH<sub>3</sub>COO<sup>–</sup> and S<sup>2–</sup> regulates the local chemical environment of Co/Ni, increasing the density of high-valent Co, especially for NCS@COAC obtained from hydroxides. Moreover, the formation of a core–shell structure also inhibits the leaching of S<sup>2–</sup> in the OER, which is beneficial for maintaining the 1D core–shell structure. As a result, NCS@COAC delivers a decreased overpotential of 23 mV lower than that of P-NCS@COAC at the current density of 20 mA cm<sup>–2</sup> and superior stability with retention of the original current after testing for 100 h.</p>\",\"PeriodicalId\":4,\"journal\":{\"name\":\"ACS Applied Energy Materials\",\"volume\":\"7 22\",\"pages\":\"10474–10486 10474–10486\"},\"PeriodicalIF\":5.5000,\"publicationDate\":\"2024-11-06\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaem.4c02111\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaem.4c02111","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

调节核壳结构电催化剂的界面耦合对于提高氧进化反应(OER)的电催化性能至关重要。本研究选择了一维 NiCo-LDH(层状双氢氧化物)和 NiCo 氧化物作为模型,研究了层间结合强度对合成的一维 NiCoS@NiCo(CH3COO)x (NCS@COAC)的结构和性能的影响。研究发现,从 NiCo-LDH 和氧化镍钴中获得的硫化物表现出不同的结晶度,这反过来又使 NCS@COAC 和 P-NCS@COAC 的形态多样化。特别是 NCS 的低结晶度导致 CH3COO- 和 S2- 之间的 Kendall 效应,从而形成 NCS@COAC 的分层核壳结构,该结构由纳米棒和纳米管结构组成。纳米管的出现增加了可访问活性位点的比例,促进了 OER 的进行。此外,CH3COO- 和 S2- 之间的相互作用调节了 Co/Ni 的局部化学环境,增加了高价 Co 的密度,尤其是对于从氢氧化物中获得的 NCS@COAC。此外,核壳结构的形成还抑制了 S2- 在 OER 中的浸出,有利于保持一维核壳结构。因此,在电流密度为 20 mA cm-2 时,NCS@COAC 的过电位比 P-NCS@COAC 低 23 mV,而且稳定性极佳,测试 100 小时后仍能保持原始电流。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Enhanced Heterogeneous Interfacial Coupling of NiCoS@NiCo(CH3COO)x as Efficient and Long-term Stable Electrocatalysts for Oxygen Evolution Reaction

Enhanced Heterogeneous Interfacial Coupling of NiCoS@NiCo(CH3COO)x as Efficient and Long-term Stable Electrocatalysts for Oxygen Evolution Reaction

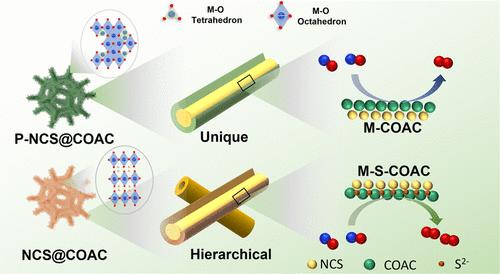

Regulating the interfacial coupling of core–shell structured electrocatalysts is critical for enhancing the electrocatalytic performance toward oxygen evolution reaction (OER). In this work, 1D NiCo-LDH (layered double hydroxide) and NiCo oxides were selected as a model to study the effect of interlamellar bonding strength on the structure and performance of the as-synthesized 1D NiCoS@NiCo(CH3COO)x (NCS@COAC). It was revealed that the sulfides obtained from NiCo-LDH and NiCo oxide exhibit different crystallinities, which in turn diversifies the morphology of NCS@COAC and P-NCS@COAC. In particular, the low crystallinity of NCS results in the Kendall effect between CH3COO and S2–, leading to the formation of a hierarchical core–shell structure of NCS@COAC that is composed of nanorod and nanotube structures. The appearance of nanotubes increases the ratio of accessible active sites, facilitating the proceeding of the OER. In addition, the interaction between CH3COO and S2– regulates the local chemical environment of Co/Ni, increasing the density of high-valent Co, especially for NCS@COAC obtained from hydroxides. Moreover, the formation of a core–shell structure also inhibits the leaching of S2– in the OER, which is beneficial for maintaining the 1D core–shell structure. As a result, NCS@COAC delivers a decreased overpotential of 23 mV lower than that of P-NCS@COAC at the current density of 20 mA cm–2 and superior stability with retention of the original current after testing for 100 h.
