Development and validation of an innovative administration system to facilitate controlled holmium-166 microsphere administration during TARE.

Background: To develop and validate a novel administration device for holmium-166 transarterial radioembolisation (TARE) with the purpose of facilitating controlled fractional microsphere administration for a more flexible and image-guided TARE procedure.

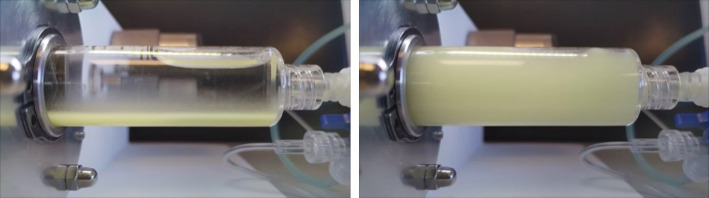

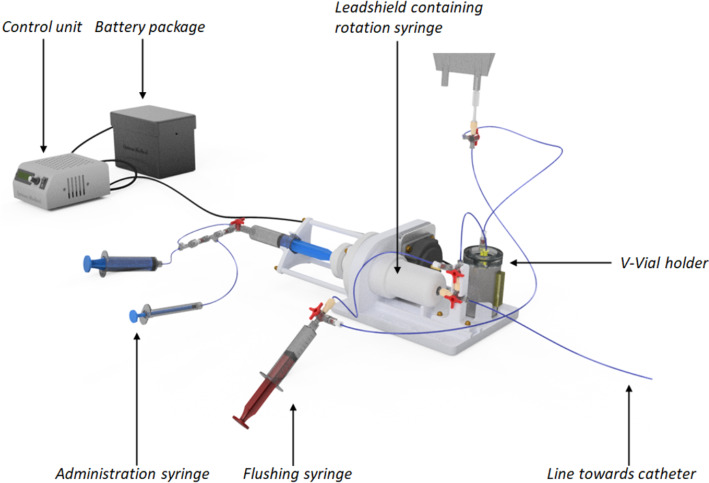

Methods: A Controlled Administration Device (CAD) was developed using MR-conditional materials. The CAD contains a rotating syringe to keep the microspheres in suspension during administration. Different rotational speeds were tested ex vivo to optimise the homogeneity of microsphere fractions administered from the device. The technical performance, accuracy, and safety was validated in three patients in a clinical TARE setting by administering a standard clinical dose in 5 fractions (identifier: NCT05183776). MRI-based dosimetry was used to validate the homogeneity of the given fractions in vivo, and serious adverse device event ((S)A(D)E) reporting was performed to assess safety of the CAD.

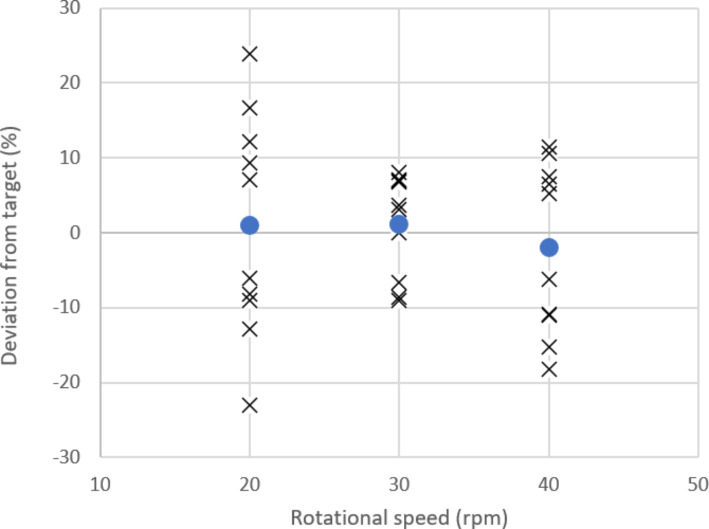

Results: A rotational speed of 30 rpm resulted in the most homogeneous microsphere fractions with a relative mean deviation of 1.1% (range: -9.1-8.0%). The first and last fraction showed the largest deviation with a mean of -26% (std. 16%) and 7% (std. 13%). respectively. In the three patient cases the homogeneity of the microsphere fractions was confirmed given that MRI-based dosimetry showed near linear increase of mean absorbed target liver dose over the given fractions with R² values of 0.98, 0.97 and 0.99. No (S)A(D)E's could be contributed to the use of the CAD.

Conclusions: The newly developed CAD facilitates safe and accurate fractional microsphere administration during TARE, and can be used for multiple applications in the current and future workflows of TARE.
