ResiDEM: Analytical Tool for Isomorphous Difference Electron Density Maps Utilizing Dynamic Residue Identification via Density Clustering

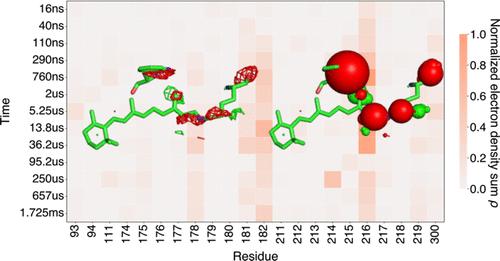

Time-resolved serial femtosecond crystallography (TR-SFX) of biological molecules captures the time-evolved dynamics of the residual motions across crystal structures, enabling the visualization of structural changes in response to chemical and physical stimuli to elucidate the relationship between the structure and function of the system under study. However, interpretations of residual motions can be complex to deconvolute because of various factors such as the system’s size, temporal and spatial complexity, and allosteric behavior away from active sites. Relying solely on electron density map visualization can also pose a challenge in differentiating between useful and irrelevant data. In order to accurately identify residues and determine their respective contributions to the reaction dynamics, new tools are needed. We developed a new tool, ResiDEM, which employs a clustering-based approach to group difference electron densities and associate them with proximal residues. It can identify and rank residues with significant motions. Network representation can be used to delineate the interrelations between the residues in motion. With these features, ResiDEM helps to interpret residual motions in TR-SFX data, identify key residues, and elucidate their roles in dynamic processes.
