催化剂结构-活性关系在提高正丁烷到顺丁烯二酸酐的选择性氧化产率中的作用

IF 4.2 3区 化学 Q2 CHEMISTRY, PHYSICAL
Muhammad Faizan , Erum Aamir , Tiong Sieh Kiong , Hua Song
{"title":"催化剂结构-活性关系在提高正丁烷到顺丁烯二酸酐的选择性氧化产率中的作用","authors":"Muhammad Faizan ,&nbsp;Erum Aamir ,&nbsp;Tiong Sieh Kiong ,&nbsp;Hua Song","doi":"10.1039/d4cy00023d","DOIUrl":null,"url":null,"abstract":"<div><p>Vanadium phosphorus oxide (VPO) catalysts are synthesized for utilization of lighter alkanes such as <em>n</em>-butane to produce maleic anhydride (MA) by a selective oxidation process. Such a process has received huge global attention because of greater selectivity, eco-friendliness and being a less-expensive process as compared to the benzene oxidation process for the production of MA. Herein, we introduced for the first time 2-D MXene Ti<sub>3</sub>C<sub>2</sub> (Mx) into VPO synthesis and prepared Ti<sub>3</sub>C<sub>2</sub>@VPO (MXene@VPO; Mx@VPO) nanocomposites <em>via</em> solvothermal and ball milling processes as a promoter and supporter at different (1–5) wt% for the evolution of <em>n</em>-butane selective oxidation. Among them, the solvothermal based promoted catalyst (5% Mx@VPO) exhibited large MA selectivity (up to 11%) as compared to the unpromoted catalyst. Simultaneously, it will decrease the CO<sub>x</sub> selectivity (CO<sub>2</sub> and CO). More importantly, the CO : CO<sub>2</sub> ratio is reduced up to 1.5 from 2.01, which is beneficial for the environment and chemical plants. From various characterization techniques such as BET, XPS, SEM, TEM, XRD, FT-IR, NH<sub>3</sub>-TPD, H<sub>2</sub>-TPR, EDS, EPR, Raman, and TG/DTA we confirmed the role of MXene as a structure directing agent and electron promoting agent in VPO catalysis.</p></div>","PeriodicalId":66,"journal":{"name":"Catalysis Science & Technology","volume":"14 17","pages":"Pages 5009-5031"},"PeriodicalIF":4.2000,"publicationDate":"2024-08-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Role of the catalyst structure–activity relationship in enhancing the selective oxidation yield of n-butane to maleic anhydride†\",\"authors\":\"Muhammad Faizan ,&nbsp;Erum Aamir ,&nbsp;Tiong Sieh Kiong ,&nbsp;Hua Song\",\"doi\":\"10.1039/d4cy00023d\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>Vanadium phosphorus oxide (VPO) catalysts are synthesized for utilization of lighter alkanes such as <em>n</em>-butane to produce maleic anhydride (MA) by a selective oxidation process. Such a process has received huge global attention because of greater selectivity, eco-friendliness and being a less-expensive process as compared to the benzene oxidation process for the production of MA. Herein, we introduced for the first time 2-D MXene Ti<sub>3</sub>C<sub>2</sub> (Mx) into VPO synthesis and prepared Ti<sub>3</sub>C<sub>2</sub>@VPO (MXene@VPO; Mx@VPO) nanocomposites <em>via</em> solvothermal and ball milling processes as a promoter and supporter at different (1–5) wt% for the evolution of <em>n</em>-butane selective oxidation. Among them, the solvothermal based promoted catalyst (5% Mx@VPO) exhibited large MA selectivity (up to 11%) as compared to the unpromoted catalyst. Simultaneously, it will decrease the CO<sub>x</sub> selectivity (CO<sub>2</sub> and CO). More importantly, the CO : CO<sub>2</sub> ratio is reduced up to 1.5 from 2.01, which is beneficial for the environment and chemical plants. From various characterization techniques such as BET, XPS, SEM, TEM, XRD, FT-IR, NH<sub>3</sub>-TPD, H<sub>2</sub>-TPR, EDS, EPR, Raman, and TG/DTA we confirmed the role of MXene as a structure directing agent and electron promoting agent in VPO catalysis.</p></div>\",\"PeriodicalId\":66,\"journal\":{\"name\":\"Catalysis Science & Technology\",\"volume\":\"14 17\",\"pages\":\"Pages 5009-5031\"},\"PeriodicalIF\":4.2000,\"publicationDate\":\"2024-08-27\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Catalysis Science & Technology\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://www.sciencedirect.com/org/science/article/pii/S2044475324004313\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Catalysis Science & Technology","FirstCategoryId":"92","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S2044475324004313","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

钒磷氧化物(VPO)催化剂的合成是为了利用正丁烷等较轻的烷烃,通过选择性氧化工艺生产马来酸酐(MA)。与生产马来酸酐的苯氧化工艺相比,这种工艺具有更高的选择性、更环保、成本更低,因此受到全球的广泛关注。在此,我们首次将二维MXene Ti3C2(Mx)引入到VPO合成中,并通过溶热法和球磨法制备了Ti3C2@VPO(MXene@VPO;Mx@VPO)纳米复合材料,作为正丁烷选择性氧化进化的促进剂和抑制剂,其比例为1-5 wt%。其中,基于溶热法的促进催化剂(5% Mx@VPO)与未促进催化剂相比,表现出较大的 MA 选择性(高达 11%)。同时,它将降低 COx 选择性(CO2 和 CO)。更重要的是,CO :CO2 比率从 2.01 降至 1.5,这对环境和化工厂都是有益的。通过 BET、XPS、SEM、TEM、XRD、FT-IR、NH3-TPD、H2-TPR、EDS、EPR、拉曼和 TG/DTA 等各种表征技术,我们证实了 MXene 在 VPO 催化中作为结构引导剂和电子促进剂的作用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Role of the catalyst structure–activity relationship in enhancing the selective oxidation yield of n-butane to maleic anhydride†

Role of the catalyst structure–activity relationship in enhancing the selective oxidation yield of n-butane to maleic anhydride†

Role of the catalyst structure–activity relationship in enhancing the selective oxidation yield of n-butane to maleic anhydride†

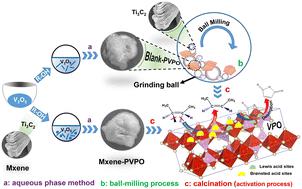

Vanadium phosphorus oxide (VPO) catalysts are synthesized for utilization of lighter alkanes such as n-butane to produce maleic anhydride (MA) by a selective oxidation process. Such a process has received huge global attention because of greater selectivity, eco-friendliness and being a less-expensive process as compared to the benzene oxidation process for the production of MA. Herein, we introduced for the first time 2-D MXene Ti3C2 (Mx) into VPO synthesis and prepared Ti3C2@VPO (MXene@VPO; Mx@VPO) nanocomposites via solvothermal and ball milling processes as a promoter and supporter at different (1–5) wt% for the evolution of n-butane selective oxidation. Among them, the solvothermal based promoted catalyst (5% Mx@VPO) exhibited large MA selectivity (up to 11%) as compared to the unpromoted catalyst. Simultaneously, it will decrease the COx selectivity (CO2 and CO). More importantly, the CO : CO2 ratio is reduced up to 1.5 from 2.01, which is beneficial for the environment and chemical plants. From various characterization techniques such as BET, XPS, SEM, TEM, XRD, FT-IR, NH3-TPD, H2-TPR, EDS, EPR, Raman, and TG/DTA we confirmed the role of MXene as a structure directing agent and electron promoting agent in VPO catalysis.
