在 ~2.8 μm 波长下工作的 Er,Pr:LuYSGG 晶体的结构、光谱和 LD 端泵浦激光器性能

IF 2.6 3区化学 Q2 CHEMISTRY, MULTIDISCIPLINARY

CrystEngComm Pub Date : 2024-05-13 DOI:10.1039/D4CE00289J

Huili Zhang, Dunlu Sun, Jianqiao Luo, Cong Quan, Yang Qiao, Yuwei Chen, Kunpeng Dong, Zhentao Wang, Hongyuan Li and Maojie Cheng

{"title":"在 ~2.8 μm 波长下工作的 Er,Pr:LuYSGG 晶体的结构、光谱和 LD 端泵浦激光器性能","authors":"Huili Zhang, Dunlu Sun, Jianqiao Luo, Cong Quan, Yang Qiao, Yuwei Chen, Kunpeng Dong, Zhentao Wang, Hongyuan Li and Maojie Cheng","doi":"10.1039/D4CE00289J","DOIUrl":null,"url":null,"abstract":"We demonstrate the structure, spectroscopy, and laser performance of an Er3+ and Pr3+ co-doped LuYSGG crystal grown by the Cz method. The XRD result shows that it belongs to the cubic system with the space group Ia<img>d. A refractive index curve in the range of 320–3000 nm is obtained by fitting the Sellmeier equation. The lifetimes of the 4I13/2 and 4I11/2 levels are 0.871 and 0.728 ms, and the ratio is reduced obviously from 3.4 to 1.2 due to the doping of deactivator Pr3+. In CW mode, a maximum output power of 1059 mW is achieved with a slope efficiency of 17.58% and laser center wavelength of ∼2.8 μm. Beam quality factors of 1.40/1.34 are achieved. The results suggest that the Er,Pr:LuYSGG crystal is a potential candidate for generating a high-power mid-infrared laser and can be applied in irradiation environments.","PeriodicalId":70,"journal":{"name":"CrystEngComm","volume":" 23","pages":" 3123-3130"},"PeriodicalIF":2.6000,"publicationDate":"2024-05-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Structure, spectroscopy and LD end-pumped laser performance of an Er,Pr:LuYSGG crystal operated at ∼2.8 μm\",\"authors\":\"Huili Zhang, Dunlu Sun, Jianqiao Luo, Cong Quan, Yang Qiao, Yuwei Chen, Kunpeng Dong, Zhentao Wang, Hongyuan Li and Maojie Cheng\",\"doi\":\"10.1039/D4CE00289J\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"We demonstrate the structure, spectroscopy, and laser performance of an Er3+ and Pr3+ co-doped LuYSGG crystal grown by the Cz method. The XRD result shows that it belongs to the cubic system with the space group Ia<img>d. A refractive index curve in the range of 320–3000 nm is obtained by fitting the Sellmeier equation. The lifetimes of the 4I13/2 and 4I11/2 levels are 0.871 and 0.728 ms, and the ratio is reduced obviously from 3.4 to 1.2 due to the doping of deactivator Pr3+. In CW mode, a maximum output power of 1059 mW is achieved with a slope efficiency of 17.58% and laser center wavelength of ∼2.8 μm. Beam quality factors of 1.40/1.34 are achieved. The results suggest that the Er,Pr:LuYSGG crystal is a potential candidate for generating a high-power mid-infrared laser and can be applied in irradiation environments.\",\"PeriodicalId\":70,\"journal\":{\"name\":\"CrystEngComm\",\"volume\":\" 23\",\"pages\":\" 3123-3130\"},\"PeriodicalIF\":2.6000,\"publicationDate\":\"2024-05-13\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"CrystEngComm\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2024/ce/d4ce00289j\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"CrystEngComm","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/ce/d4ce00289j","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

我们展示了用 Cz 法生长的 Er3+ 和 Pr3+ 共掺杂 LuYSGG 晶体的结构、光谱和激光性能。XRD 结果表明它属于立方体系，空间群为 Ia-3d。利用 Sellmeier 方程拟合得到了 320-3000 nm 范围内的折射率曲线。4I13/2 和 4I11/2 电平的寿命分别为 0.871 和 0.728 ms，由于掺入了失活剂 Pr3+，其比率从 3.4 明显降低到 1.2。在 CW 模式下，最大输出功率为 1059 mW，斜率效率为 17.58%，激光中心波长约为 2.8 μm。光束质量因子为 1.40/1.34。结果表明，Er,Pr:LuYSGG 晶体是产生高功率中红外激光的潜在候选晶体，可应用于辐照环境。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Structure, spectroscopy and LD end-pumped laser performance of an Er,Pr:LuYSGG crystal operated at ∼2.8 μm

查看原文本刊更多论文

Structure, spectroscopy and LD end-pumped laser performance of an Er,Pr:LuYSGG crystal operated at ∼2.8 μm

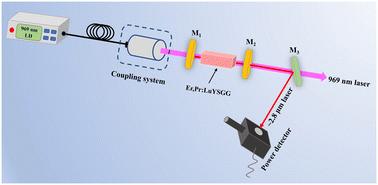

We demonstrate the structure, spectroscopy, and laser performance of an Er³⁺ and Pr³⁺ co-doped LuYSGG crystal grown by the Cz method. The XRD result shows that it belongs to the cubic system with the space group I_ad. A refractive index curve in the range of 320–3000 nm is obtained by fitting the Sellmeier equation. The lifetimes of the ⁴I_13/2 and ⁴I_11/2 levels are 0.871 and 0.728 ms, and the ratio is reduced obviously from 3.4 to 1.2 due to the doping of deactivator Pr³⁺. In CW mode, a maximum output power of 1059 mW is achieved with a slope efficiency of 17.58% and laser center wavelength of ∼2.8 μm. Beam quality factors of 1.40/1.34 are achieved. The results suggest that the Er,Pr:LuYSGG crystal is a potential candidate for generating a high-power mid-infrared laser and can be applied in irradiation environments.
