基于二氧化碳的稳定多孔金属有机框架促进二氧化碳利用

IF 15.6 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Bo Song, Yuhang Liang, Yi Zhou, Liang Zhang, He Li, Neng-Xiu Zhu, Ben Zhong Tang, Dan Zhao and Bin Liu*,
{"title":"基于二氧化碳的稳定多孔金属有机框架促进二氧化碳利用","authors":"Bo Song,&nbsp;Yuhang Liang,&nbsp;Yi Zhou,&nbsp;Liang Zhang,&nbsp;He Li,&nbsp;Neng-Xiu Zhu,&nbsp;Ben Zhong Tang,&nbsp;Dan Zhao and Bin Liu*,&nbsp;","doi":"10.1021/jacs.4c03476","DOIUrl":null,"url":null,"abstract":"<p >The transformation of carbon dioxide (CO<sub>2</sub>) into functional materials has garnered considerable worldwide interest. Metal–organic frameworks (MOFs), as a distinctive class of materials, have made great contributions to CO<sub>2</sub> capture and conversion. However, facile conversion of CO<sub>2</sub> to stable porous MOFs for CO<sub>2</sub> utilization remains unexplored. Herein, we present a facile methodology of using CO<sub>2</sub> to synthesize stable zirconium-based MOFs. Two zirconium-based MOFs CO<sub>2</sub>–Zr-DEP and CO<sub>2</sub>–Zr-DEDP with face-centered cubic topology were obtained via a sequential desilylation–carboxylation–coordination reaction. The MOFs exhibit excellent crystallinity, as verified through powder X-ray diffraction and high-resolution transmission electron microscopy analyses. They also have notable porosity with high surface area (<i>S</i><sub>BET</sub> up to 3688 m<sup>2</sup> g<sup>–1</sup>) and good CO<sub>2</sub> adsorption capacity (up to 12.5 wt %). The resulting MOFs have abundant alkyne functional moieties, confirmed through <sup>13</sup>C cross-polarization/magic angle spinning nuclear magnetic resonance and Fourier transform infrared spectra. Leveraging the catalytic prowess of Ag(I) in diverse CO<sub>2</sub>-involved reactions, we incorporated Ag(I) into zirconium-based MOFs, capitalizing on their interactions with carbon–carbon π-bonds of alkynes, thereby forming a heterogeneous catalyst. This catalyst demonstrates outstanding efficiency in catalyzing the conversion of CO<sub>2</sub> and propargylic alcohols into cyclic carbonates, achieving &gt;99% yield at room temperature and atmospheric pressure conditions. Thus, this work provides a dual CO<sub>2</sub> utilization strategy, encompassing the synthesis of CO<sub>2</sub>-based MOFs (20–24 wt % from CO<sub>2</sub>) and their subsequent application in CO<sub>2</sub> capture and conversion processes. This approach significantly enhances overall CO<sub>2</sub> utilization.</p>","PeriodicalId":49,"journal":{"name":"Journal of the American Chemical Society","volume":"146 21","pages":"14835–14843"},"PeriodicalIF":15.6000,"publicationDate":"2024-05-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"CO2-Based Stable Porous Metal–Organic Frameworks for CO2 Utilization\",\"authors\":\"Bo Song,&nbsp;Yuhang Liang,&nbsp;Yi Zhou,&nbsp;Liang Zhang,&nbsp;He Li,&nbsp;Neng-Xiu Zhu,&nbsp;Ben Zhong Tang,&nbsp;Dan Zhao and Bin Liu*,&nbsp;\",\"doi\":\"10.1021/jacs.4c03476\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The transformation of carbon dioxide (CO<sub>2</sub>) into functional materials has garnered considerable worldwide interest. Metal–organic frameworks (MOFs), as a distinctive class of materials, have made great contributions to CO<sub>2</sub> capture and conversion. However, facile conversion of CO<sub>2</sub> to stable porous MOFs for CO<sub>2</sub> utilization remains unexplored. Herein, we present a facile methodology of using CO<sub>2</sub> to synthesize stable zirconium-based MOFs. Two zirconium-based MOFs CO<sub>2</sub>–Zr-DEP and CO<sub>2</sub>–Zr-DEDP with face-centered cubic topology were obtained via a sequential desilylation–carboxylation–coordination reaction. The MOFs exhibit excellent crystallinity, as verified through powder X-ray diffraction and high-resolution transmission electron microscopy analyses. They also have notable porosity with high surface area (<i>S</i><sub>BET</sub> up to 3688 m<sup>2</sup> g<sup>–1</sup>) and good CO<sub>2</sub> adsorption capacity (up to 12.5 wt %). The resulting MOFs have abundant alkyne functional moieties, confirmed through <sup>13</sup>C cross-polarization/magic angle spinning nuclear magnetic resonance and Fourier transform infrared spectra. Leveraging the catalytic prowess of Ag(I) in diverse CO<sub>2</sub>-involved reactions, we incorporated Ag(I) into zirconium-based MOFs, capitalizing on their interactions with carbon–carbon π-bonds of alkynes, thereby forming a heterogeneous catalyst. This catalyst demonstrates outstanding efficiency in catalyzing the conversion of CO<sub>2</sub> and propargylic alcohols into cyclic carbonates, achieving &gt;99% yield at room temperature and atmospheric pressure conditions. Thus, this work provides a dual CO<sub>2</sub> utilization strategy, encompassing the synthesis of CO<sub>2</sub>-based MOFs (20–24 wt % from CO<sub>2</sub>) and their subsequent application in CO<sub>2</sub> capture and conversion processes. This approach significantly enhances overall CO<sub>2</sub> utilization.</p>\",\"PeriodicalId\":49,\"journal\":{\"name\":\"Journal of the American Chemical Society\",\"volume\":\"146 21\",\"pages\":\"14835–14843\"},\"PeriodicalIF\":15.6000,\"publicationDate\":\"2024-05-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of the American Chemical Society\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/jacs.4c03476\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of the American Chemical Society","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/jacs.4c03476","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

将二氧化碳(CO2)转化为功能材料已引起了全世界的广泛关注。金属有机框架(MOFs)作为一类独特的材料,在二氧化碳捕获和转化方面做出了巨大贡献。然而,将 CO2 便捷地转化为稳定的多孔 MOFs 以用于 CO2 利用的方法仍有待探索。在此,我们提出了一种利用二氧化碳合成稳定的锆基 MOFs 的简便方法。通过脱硅-羧化-配位反应,我们获得了两种具有面心立方拓扑结构的锆基 MOF CO2-Zr-DEP 和 CO2-Zr-DEDP。粉末 X 射线衍射和高分辨率透射电子显微镜分析证实,这些 MOFs 具有极佳的结晶性。此外,它们还具有显著的多孔性、高表面积(SBET 高达 3688 m2 g-1)和良好的二氧化碳吸附能力(高达 12.5 wt %)。13C 交叉偏振/魔角旋转核磁共振和傅立叶变换红外光谱证实,所制备的 MOFs 具有丰富的炔功能分子。利用 Ag(I) 在多种涉及二氧化碳的反应中的催化能力,我们将 Ag(I) 加入锆基 MOF 中,利用其与炔烃的碳-碳 π 键的相互作用,从而形成一种异相催化剂。这种催化剂在催化二氧化碳和丙炔醇转化为环状碳酸盐方面表现出卓越的效率,在室温和常压条件下的产率达到 99%。因此,这项工作提供了一种双重二氧化碳利用战略,包括合成二氧化碳基 MOFs(20-24 wt % 来自二氧化碳)以及随后将其应用于二氧化碳捕获和转化过程。这种方法大大提高了二氧化碳的整体利用率。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

CO2-Based Stable Porous Metal–Organic Frameworks for CO2 Utilization

CO2-Based Stable Porous Metal–Organic Frameworks for CO2 Utilization

CO2-Based Stable Porous Metal–Organic Frameworks for CO2 Utilization

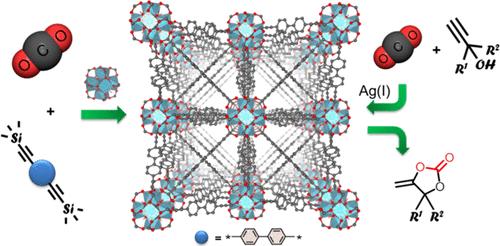

The transformation of carbon dioxide (CO2) into functional materials has garnered considerable worldwide interest. Metal–organic frameworks (MOFs), as a distinctive class of materials, have made great contributions to CO2 capture and conversion. However, facile conversion of CO2 to stable porous MOFs for CO2 utilization remains unexplored. Herein, we present a facile methodology of using CO2 to synthesize stable zirconium-based MOFs. Two zirconium-based MOFs CO2–Zr-DEP and CO2–Zr-DEDP with face-centered cubic topology were obtained via a sequential desilylation–carboxylation–coordination reaction. The MOFs exhibit excellent crystallinity, as verified through powder X-ray diffraction and high-resolution transmission electron microscopy analyses. They also have notable porosity with high surface area (SBET up to 3688 m2 g–1) and good CO2 adsorption capacity (up to 12.5 wt %). The resulting MOFs have abundant alkyne functional moieties, confirmed through 13C cross-polarization/magic angle spinning nuclear magnetic resonance and Fourier transform infrared spectra. Leveraging the catalytic prowess of Ag(I) in diverse CO2-involved reactions, we incorporated Ag(I) into zirconium-based MOFs, capitalizing on their interactions with carbon–carbon π-bonds of alkynes, thereby forming a heterogeneous catalyst. This catalyst demonstrates outstanding efficiency in catalyzing the conversion of CO2 and propargylic alcohols into cyclic carbonates, achieving >99% yield at room temperature and atmospheric pressure conditions. Thus, this work provides a dual CO2 utilization strategy, encompassing the synthesis of CO2-based MOFs (20–24 wt % from CO2) and their subsequent application in CO2 capture and conversion processes. This approach significantly enhances overall CO2 utilization.
