反溶剂增溶实现了同时钝化过氧化物太阳能电池中的浅层和深层缺陷

IF 6.4 1区 化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR
Chu Zhang, Chunying Ma, Shennan Chen and Tingli Ma
{"title":"反溶剂增溶实现了同时钝化过氧化物太阳能电池中的浅层和深层缺陷","authors":"Chu Zhang, Chunying Ma, Shennan Chen and Tingli Ma","doi":"10.1039/D3QI02231E","DOIUrl":null,"url":null,"abstract":"<p >Resolving the inherent defects at the interfaces and grain boundaries of perovskite films is crucial for achieving highly efficient and stable perovskite solar cells (PSCs). This study introduces an antisolvent solubilization (AS) approach to enhance the solubilization of the bulk organic ammonium salt 2-Thiophenemethylammonium Iodide (ThMAI), which has limited solubility in low-polarity antisolvents. The results demonstrated that the AS approach could effectively passivate both shallow and deep defects in organic–inorganic hybrid perovskites (OIHPs). Furthermore, the ThMAI prepared using the AS method could react with excess PbI<small><sub>2</sub></small> and facilitate the crystallization of the OIHPs, thereby improving light absorption, suppressing non-radiative recombination, and enhancing carrier extraction. As a result, PSCs prepared by using the AS method achieved a power conversion efficiency (PCE) of 23.69%, representing a 10% PCE improvement compared to normal devices. PSCs based on the AS method also demonstrated significantly improved heat and humidity stability.</p>","PeriodicalId":79,"journal":{"name":"Inorganic Chemistry Frontiers","volume":" 5","pages":" 1472-1478"},"PeriodicalIF":6.4000,"publicationDate":"2024-01-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Antisolvent solubilization achieves simultaneous passivation of shallow and deep defects in perovskite solar cells†\",\"authors\":\"Chu Zhang, Chunying Ma, Shennan Chen and Tingli Ma\",\"doi\":\"10.1039/D3QI02231E\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Resolving the inherent defects at the interfaces and grain boundaries of perovskite films is crucial for achieving highly efficient and stable perovskite solar cells (PSCs). This study introduces an antisolvent solubilization (AS) approach to enhance the solubilization of the bulk organic ammonium salt 2-Thiophenemethylammonium Iodide (ThMAI), which has limited solubility in low-polarity antisolvents. The results demonstrated that the AS approach could effectively passivate both shallow and deep defects in organic–inorganic hybrid perovskites (OIHPs). Furthermore, the ThMAI prepared using the AS method could react with excess PbI<small><sub>2</sub></small> and facilitate the crystallization of the OIHPs, thereby improving light absorption, suppressing non-radiative recombination, and enhancing carrier extraction. As a result, PSCs prepared by using the AS method achieved a power conversion efficiency (PCE) of 23.69%, representing a 10% PCE improvement compared to normal devices. PSCs based on the AS method also demonstrated significantly improved heat and humidity stability.</p>\",\"PeriodicalId\":79,\"journal\":{\"name\":\"Inorganic Chemistry Frontiers\",\"volume\":\" 5\",\"pages\":\" 1472-1478\"},\"PeriodicalIF\":6.4000,\"publicationDate\":\"2024-01-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Inorganic Chemistry Frontiers\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2024/qi/d3qi02231e\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry Frontiers","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2024/qi/d3qi02231e","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

解决包晶体薄膜界面和晶界的固有缺陷对于实现高效稳定的包晶体太阳能电池(PSCs)至关重要。本研究引入了一种反溶剂增溶(AS)方法,以提高块状有机铵盐 2-噻吩甲基碘化铵(ThMAI)的增溶,这种铵盐在低极性反溶剂中的溶解度有限。研究结果表明,AS 方法可以有效地钝化有机-无机混合包晶石(OIHPs)中的浅层和深层缺陷。此外,使用 AS 方法制备的 ThMAI 可以与过量的 PbI2 发生反应,促进 OIHP 的结晶,从而改善光吸收、抑制非辐射重组和提高载流子萃取。因此,使用 AS 法制备的 PSCs 实现了 23.69% 的功率转换效率 (PCE),与普通器件相比,PCE 提高了 10%。基于 AS 方法制备的 PSC 还显著提高了热稳定性和湿稳定性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Antisolvent solubilization achieves simultaneous passivation of shallow and deep defects in perovskite solar cells†

Antisolvent solubilization achieves simultaneous passivation of shallow and deep defects in perovskite solar cells†

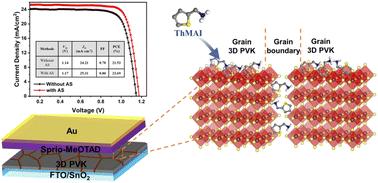

Resolving the inherent defects at the interfaces and grain boundaries of perovskite films is crucial for achieving highly efficient and stable perovskite solar cells (PSCs). This study introduces an antisolvent solubilization (AS) approach to enhance the solubilization of the bulk organic ammonium salt 2-Thiophenemethylammonium Iodide (ThMAI), which has limited solubility in low-polarity antisolvents. The results demonstrated that the AS approach could effectively passivate both shallow and deep defects in organic–inorganic hybrid perovskites (OIHPs). Furthermore, the ThMAI prepared using the AS method could react with excess PbI2 and facilitate the crystallization of the OIHPs, thereby improving light absorption, suppressing non-radiative recombination, and enhancing carrier extraction. As a result, PSCs prepared by using the AS method achieved a power conversion efficiency (PCE) of 23.69%, representing a 10% PCE improvement compared to normal devices. PSCs based on the AS method also demonstrated significantly improved heat and humidity stability.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Inorganic Chemistry Frontiers
Inorganic Chemistry Frontiers CHEMISTRY, INORGANIC & NUCLEAR-
CiteScore
10.40
自引率
7.10%
发文量
587
审稿时长
1.2 months
期刊介绍: The international, high quality journal for interdisciplinary research between inorganic chemistry and related subjects
×
