Grain-Boundary-Rich Copper for Efficient Solar-Driven Electrochemical CO2 Reduction to Ethylene and Ethanol

IF 14.4 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Zhiqiang Chen, Tuo Wang, Bin Liu, Dongfang Cheng, Congling Hu, Gong Zhang, Wenjin Zhu, Huaiyuan Wang, Zhi-Jian Zhao, Jinlong Gong*
{"title":"Grain-Boundary-Rich Copper for Efficient Solar-Driven Electrochemical CO2 Reduction to Ethylene and Ethanol","authors":"Zhiqiang Chen,&nbsp;Tuo Wang,&nbsp;Bin Liu,&nbsp;Dongfang Cheng,&nbsp;Congling Hu,&nbsp;Gong Zhang,&nbsp;Wenjin Zhu,&nbsp;Huaiyuan Wang,&nbsp;Zhi-Jian Zhao,&nbsp;Jinlong Gong*","doi":"10.1021/jacs.0c00971","DOIUrl":null,"url":null,"abstract":"<p >The grain boundary in copper-based electrocatalysts has been demonstrated to improve the selectivity of solar-driven electrochemical CO<sub>2</sub> reduction toward multicarbon products. However, the approach to form grain boundaries in copper is still limited. This paper describes a controllable grain growth of copper electrodeposition via poly(vinylpyrrolidone) used as an additive. A grain-boundary-rich metallic copper could be obtained to convert CO<sub>2</sub> into ethylene and ethanol with a high selectivity of 70% over a wide potential range. In situ attenuated total reflection surface-enhanced infrared absorption spectroscopy unveils that the existence of grain boundaries enhances the adsorption of the key intermediate (*CO) on the copper surface to boost the further CO<sub>2</sub> reduction. When coupling with a commercially available Si solar cell, the device achieves a remarkable solar-to-C2-products conversion efficiency of 3.88% at a large current density of 52 mA·cm<sup>–2</sup>. This low-cost and efficient device is promising for large-scale application of solar-driven CO<sub>2</sub> reduction.</p>","PeriodicalId":49,"journal":{"name":"Journal of the American Chemical Society","volume":"142 15","pages":"6878–6883"},"PeriodicalIF":14.4000,"publicationDate":"2020-03-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://sci-hub-pdf.com/10.1021/jacs.0c00971","citationCount":"186","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of the American Chemical Society","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/jacs.0c00971","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 186

Abstract

The grain boundary in copper-based electrocatalysts has been demonstrated to improve the selectivity of solar-driven electrochemical CO2 reduction toward multicarbon products. However, the approach to form grain boundaries in copper is still limited. This paper describes a controllable grain growth of copper electrodeposition via poly(vinylpyrrolidone) used as an additive. A grain-boundary-rich metallic copper could be obtained to convert CO2 into ethylene and ethanol with a high selectivity of 70% over a wide potential range. In situ attenuated total reflection surface-enhanced infrared absorption spectroscopy unveils that the existence of grain boundaries enhances the adsorption of the key intermediate (*CO) on the copper surface to boost the further CO2 reduction. When coupling with a commercially available Si solar cell, the device achieves a remarkable solar-to-C2-products conversion efficiency of 3.88% at a large current density of 52 mA·cm–2. This low-cost and efficient device is promising for large-scale application of solar-driven CO2 reduction.

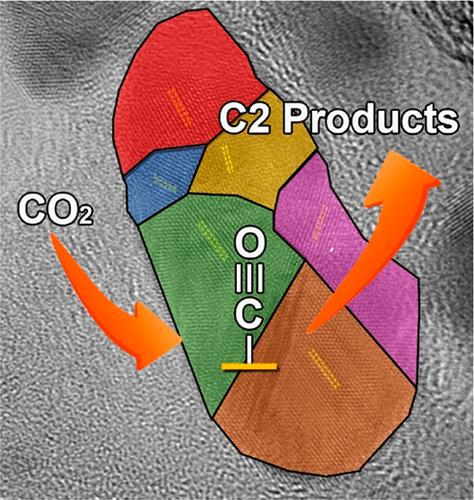

Abstract Image

富晶界铜用于高效太阳能驱动的电化学CO2还原为乙烯和乙醇
铜基电催化剂的晶界已经被证明可以提高太阳能驱动的电化学二氧化碳还原对多碳产物的选择性。然而,在铜中形成晶界的方法仍然有限。本文介绍了一种以聚乙烯吡咯烷酮为添加剂的可控晶粒生长铜电沉积方法。在较宽的电位范围内,获得了一种富晶界的金属铜,可将CO2转化为乙烯和乙醇,选择性高达70%。原位衰减全反射表面增强红外吸收光谱揭示了晶界的存在增强了关键中间体(*CO)在铜表面的吸附,从而促进了CO2的进一步还原。当与市售硅太阳能电池耦合时,该器件在52 mA·cm-2的大电流密度下实现了3.88%的太阳能- c2产品转换效率。这种低成本、高效的装置有望大规模应用于太阳能驱动的二氧化碳减排。
