CBCT Assessment of Ethmoid Roof Variations through Keros, Gera, and TMS Classifications.

Abstract

Background: This study is designed to assess the variations of the ethmoid roof through the Keros, Gera, and Thailand-Malaysia-Singapore (TMS) classifications by means of Cone-Beam Computed Tomography (CBCT).

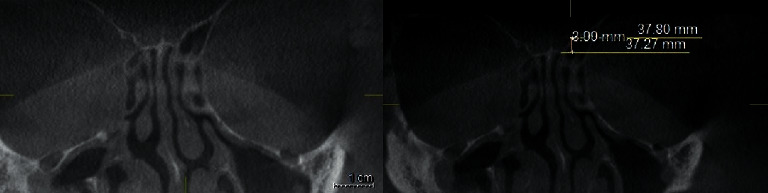

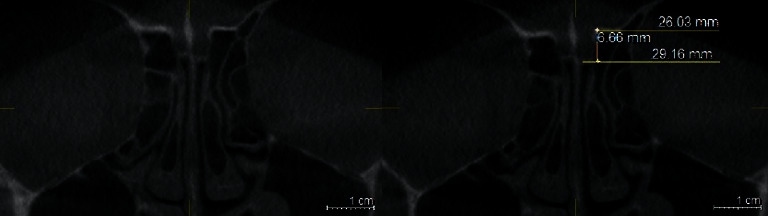

Materials and methods: 372 CBCT scans were reviewed. The depth of the olfactory fossa (OF) was defined by the height of the lateral lamella (LL). The degree of the angle formed by the LL and the continuation of the horizontal plane passing through the cribriform plate was calculated. The risk of injury to the skull base was assessed by TMS classification.

Results: The distribution of Keros types 1, 2, and 3 was 20.43%, 66.26%, and 13.31%, respectively. No significant difference was seen in the Keros classification among males and females, and asymmetry in the depth of the cribriform plate was seen in 33.3% of patients. 29.57% of the cases had type I, 61.42% had type II, and 9.01% had type III of Gera classification. 33.9% of the patients had asymmetry in the Gera classification. There was not significant difference in the Gera classification among males and females. 95.43%, 4.17%, and 0.40% of patients were of types 1, 2, and 3 of TMS classification, respectively.

Conclusion: The most prevalent variations of the ethmoid roof were Keros type II, Gera type II, and TMS type 1. Although the prevalence of the dangerous types (Keros type 3, Gera type III, and TMS type 3) was low, preoperative assessment is essential in reducing surgical complications. CBCT is beneficial in evaluating these variations due to its low radiation dose.
