Cervical Cancer Prediction by Merging Features of Different Colposcopic Images and Using Ensemble Classifier.

IF 1.1 Q4 ENGINEERING, BIOMEDICAL
Journal of Medical Signals & Sensors Pub Date : 2021-05-24 eCollection Date: 2021-04-01 DOI:10.4103/jmss.JMSS_16_20
Elham Nikookar, Ebrahim Naderi, Ali Rahnavard
{"title":"Cervical Cancer Prediction by Merging Features of Different Colposcopic Images and Using Ensemble Classifier.","authors":"Elham Nikookar,&nbsp;Ebrahim Naderi,&nbsp;Ali Rahnavard","doi":"10.4103/jmss.JMSS_16_20","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>Cervical cancer is a significant cause of cancer mortality in women, particularly in low-income countries. In regular cervical screening methods, such as colposcopy, an image is taken from the cervix of a patient. The particular image can be used by computer-aided diagnosis (CAD) systems that are trained using artificial intelligence algorithms to predict the possibility of cervical cancer. Artificial intelligence models had been highlighted in a number of cervical cancer studies. However, there are a limited number of studies that investigate the simultaneous use of three colposcopic screening modalities including Greenlight, Hinselmann, and Schiller.</p><p><strong>Methods: </strong>We propose a cervical cancer predictor model which incorporates the result of different classification algorithms and ensemble classifiers. Our approach merges features of different colposcopic images of a patient. The feature vector of each image includes semantic medical features, subjective judgments, and a consensus. The class label of each sample is calculated using an aggregation function on expert judgments and consensuses.</p><p><strong>Results: </strong>We investigated different aggregation strategies to find the best formula for aggregation function and then we evaluated our method using the quality assessment of digital colposcopies dataset, and our approach performance with 96% of sensitivity and 94% of specificity values yields a significant improvement in the field.</p><p><strong>Conclusion: </strong>Our model can be used as a supportive clinical decision-making strategy by giving more reliable information to the clinical decision makers. Our proposed model also is more applicable in cervical cancer CAD systems compared to the available methods.</p>","PeriodicalId":37680,"journal":{"name":"Journal of Medical Signals & Sensors","volume":"11 2","pages":"67-78"},"PeriodicalIF":1.1000,"publicationDate":"2021-05-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://ftp.ncbi.nlm.nih.gov/pub/pmc/oa_pdf/12/5d/JMSS-11-67.PMC8253312.pdf","citationCount":"4","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Medical Signals & Sensors","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.4103/jmss.JMSS_16_20","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2021/4/1 0:00:00","PubModel":"eCollection","JCR":"Q4","JCRName":"ENGINEERING, BIOMEDICAL","Score":null,"Total":0}
引用次数: 4

Abstract

Background: Cervical cancer is a significant cause of cancer mortality in women, particularly in low-income countries. In regular cervical screening methods, such as colposcopy, an image is taken from the cervix of a patient. The particular image can be used by computer-aided diagnosis (CAD) systems that are trained using artificial intelligence algorithms to predict the possibility of cervical cancer. Artificial intelligence models had been highlighted in a number of cervical cancer studies. However, there are a limited number of studies that investigate the simultaneous use of three colposcopic screening modalities including Greenlight, Hinselmann, and Schiller.

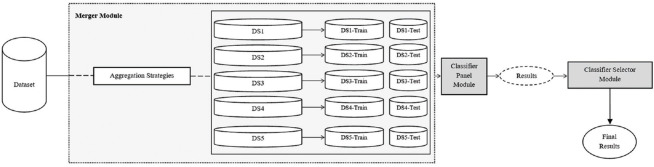

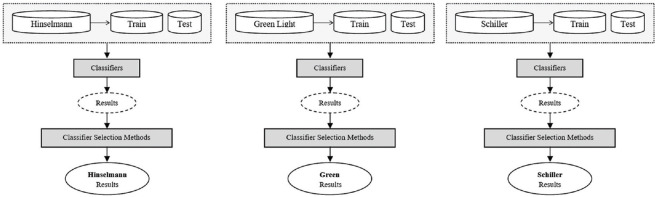

Methods: We propose a cervical cancer predictor model which incorporates the result of different classification algorithms and ensemble classifiers. Our approach merges features of different colposcopic images of a patient. The feature vector of each image includes semantic medical features, subjective judgments, and a consensus. The class label of each sample is calculated using an aggregation function on expert judgments and consensuses.

Results: We investigated different aggregation strategies to find the best formula for aggregation function and then we evaluated our method using the quality assessment of digital colposcopies dataset, and our approach performance with 96% of sensitivity and 94% of specificity values yields a significant improvement in the field.

Conclusion: Our model can be used as a supportive clinical decision-making strategy by giving more reliable information to the clinical decision makers. Our proposed model also is more applicable in cervical cancer CAD systems compared to the available methods.

Abstract Image

Abstract Image

Abstract Image

融合不同阴道镜图像特征及集成分类器预测宫颈癌。
背景:宫颈癌是妇女癌症死亡的一个重要原因,特别是在低收入国家。在常规的子宫颈检查方法中,如阴道镜检查,从患者的子宫颈拍摄图像。计算机辅助诊断(CAD)系统可以使用特定的图像,该系统使用人工智能算法进行训练,以预测宫颈癌的可能性。人工智能模型在一些宫颈癌研究中得到了强调。然而,调查同时使用三种阴道镜筛查方式(包括Greenlight、Hinselmann和Schiller)的研究数量有限。方法:提出了一种结合不同分类算法和集成分类器结果的宫颈癌预测模型。我们的方法融合了患者不同阴道镜图像的特征。每张图像的特征向量包括语义医学特征、主观判断和共识。使用专家判断和共识的聚合函数计算每个样本的类别标签。结果:我们研究了不同的聚合策略,以找到聚合函数的最佳公式,然后使用数字阴道镜数据集的质量评估对我们的方法进行了评估,我们的方法具有96%的灵敏度和94%的特异性值,在该领域取得了显著的进步。结论:该模型可作为临床决策的辅助策略,为临床决策者提供更可靠的信息。与现有方法相比,我们提出的模型也更适用于宫颈癌CAD系统。
