Structural Design and Performance Optimization of High-Flow Multi-Hole Nozzle Ejectors

IF 2.4 3区工程技术 Q3 MECHANICS

Flow, Turbulence and Combustion Pub Date : 2026-03-30 DOI:10.1007/s10494-026-00743-1

Huali Zhang, Lili Jiao, Xuewen Zhang, Xiang Li, Peiyong Ni, Zhimin Xu

{"title":"Structural Design and Performance Optimization of High-Flow Multi-Hole Nozzle Ejectors","authors":"Huali Zhang, Lili Jiao, Xuewen Zhang, Xiang Li, Peiyong Ni, Zhimin Xu","doi":"10.1007/s10494-026-00743-1","DOIUrl":null,"url":null,"abstract":"<div>\n \n As an efficient and stable fluid delivery device, the ejector plays a critical role in various gas supply systems. However, existing ejector designs often fail to meet performance requirements under all operating conditions. This study focuses on optimizing the ejector structure for applications involving high flow rates and limited installation space, thereby expanding its applicability. The key geometric dimensions of the ejector were determined using the Sokolov method. A three-dimensional fluid simulation model was developed and validated through experimental testing. Under various operating conditions, the effects of Nozzle Exit Position (NXP), mixing chamber diameter (Dm), mixing chamber length (Lm), and Flow-Distributing Net curvature (K) on ejector performance were analyzed. The optimal structural parameters that meet the design requirements were identified. The results show that when the primary flow pressure is 350 kPa, the optimal design parameters for the ejector are NXP = 15 mm, Dm = 60 mm, Lm = 60 mm, and K = 0. These values yield the best overall performance. This research provides valuable technical support for the application of ejectors in gas fuel supply systems.\n </div>","PeriodicalId":559,"journal":{"name":"Flow, Turbulence and Combustion","volume":"116 3","pages":""},"PeriodicalIF":2.4000,"publicationDate":"2026-03-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Flow, Turbulence and Combustion","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1007/s10494-026-00743-1","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"MECHANICS","Score":null,"Total":0}

引用次数: 0

Abstract

As an efficient and stable fluid delivery device, the ejector plays a critical role in various gas supply systems. However, existing ejector designs often fail to meet performance requirements under all operating conditions. This study focuses on optimizing the ejector structure for applications involving high flow rates and limited installation space, thereby expanding its applicability. The key geometric dimensions of the ejector were determined using the Sokolov method. A three-dimensional fluid simulation model was developed and validated through experimental testing. Under various operating conditions, the effects of Nozzle Exit Position (NXP), mixing chamber diameter (D_m), mixing chamber length (L_m), and Flow-Distributing Net curvature (K) on ejector performance were analyzed. The optimal structural parameters that meet the design requirements were identified. The results show that when the primary flow pressure is 350 kPa, the optimal design parameters for the ejector are NXP = 15 mm, D_m = 60 mm, L_m = 60 mm, and K = 0. These values yield the best overall performance. This research provides valuable technical support for the application of ejectors in gas fuel supply systems.

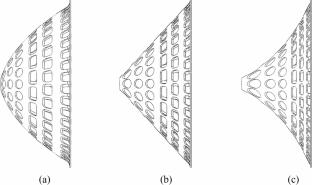

Abstract Image

查看原文本刊更多论文

大流量多孔喷管喷射器结构设计与性能优化

喷射器作为一种高效、稳定的流体输送装置，在各种供气系统中起着至关重要的作用。然而，现有的喷射器设计往往不能满足所有操作条件下的性能要求。本研究的重点是优化喷射器结构，以适应大流量和有限安装空间的应用，从而扩大其适用性。采用Sokolov法确定了喷射器的关键几何尺寸。建立了三维流体仿真模型，并通过实验验证了该模型的有效性。在不同工况下，分析了喷嘴出口位置（NXP）、混合室直径（Dm）、混合室长度（Lm）和配流净曲率(K)对喷射器性能的影响。确定了满足设计要求的最优结构参数。结果表明，当一次流压力为350 kPa时，喷射器的最佳设计参数为NXP = 15 mm, Dm = 60 mm, Lm = 60 mm, K = 0。这些值产生最佳的整体性能。该研究为喷射器在燃气供应系统中的应用提供了有价值的技术支持。
