Constructing Symmetric All-Organic Proton Battery via Scalable Flux Synthesis of Vinylene-Linked Covalent Organic Frameworks

IF 15.6 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Fengdong Wang, , , Qingxue Ma, , , Shaochun Wu, , , Yi Yang, , , Xiyuan Wang, , , Yao Chen, , , Peng Cheng, , and , Zhenjie Zhang*,
{"title":"Constructing Symmetric All-Organic Proton Battery via Scalable Flux Synthesis of Vinylene-Linked Covalent Organic Frameworks","authors":"Fengdong Wang,&nbsp;, ,&nbsp;Qingxue Ma,&nbsp;, ,&nbsp;Shaochun Wu,&nbsp;, ,&nbsp;Yi Yang,&nbsp;, ,&nbsp;Xiyuan Wang,&nbsp;, ,&nbsp;Yao Chen,&nbsp;, ,&nbsp;Peng Cheng,&nbsp;, and ,&nbsp;Zhenjie Zhang*,&nbsp;","doi":"10.1021/jacs.5c11360","DOIUrl":null,"url":null,"abstract":"<p >The design and assembly of symmetric all-organic batteries, eliminating the need for distinct cathode/anode materials while maintaining comparable energy storage performance, has been a highly sought-after objective but has barely been achieved with both high capacity and long-term stability. Herein, we design and synthesize two pyrazino[2,3-<i>g</i>]quinoxaline core-based vinylene-linked covalent organic frameworks (COFs) via the flux synthesis method, featuring two-step redox reactions due to the distinct chemical environments of adjacent C═N groups, to fabricate a symmetric all-organic proton battery, which was confirmed by the mechanism study. The assembled COF-based all-organic battery exhibits excellent performance, with good specific capacity (147 mAh g<sup>–1</sup> at 0.1 A g<sup>–1</sup>) and maximum energy density (87 Wh/kg) with over 5000 cycles at high current density, among the best of the reported all-organic proton batteries. The flux synthesis method facilitates the gram-scale production of COFs, enabling their successful assembly into functional pouch cells. As a result, the assembled pouch cell delivers a reversible maximum capacity of 92 mAh g<sup>–1</sup> at 0.1 A g<sup>–1</sup>, corresponding to a total capacity of 0.92 Ah, approaching the theoretical design capacity. This work inspires the design of all-organic proton batteries and promotes practical application of COFs in the future.</p>","PeriodicalId":49,"journal":{"name":"Journal of the American Chemical Society","volume":"147 40","pages":"36547–36556"},"PeriodicalIF":15.6000,"publicationDate":"2025-09-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of the American Chemical Society","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/jacs.5c11360","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The design and assembly of symmetric all-organic batteries, eliminating the need for distinct cathode/anode materials while maintaining comparable energy storage performance, has been a highly sought-after objective but has barely been achieved with both high capacity and long-term stability. Herein, we design and synthesize two pyrazino[2,3-g]quinoxaline core-based vinylene-linked covalent organic frameworks (COFs) via the flux synthesis method, featuring two-step redox reactions due to the distinct chemical environments of adjacent C═N groups, to fabricate a symmetric all-organic proton battery, which was confirmed by the mechanism study. The assembled COF-based all-organic battery exhibits excellent performance, with good specific capacity (147 mAh g–1 at 0.1 A g–1) and maximum energy density (87 Wh/kg) with over 5000 cycles at high current density, among the best of the reported all-organic proton batteries. The flux synthesis method facilitates the gram-scale production of COFs, enabling their successful assembly into functional pouch cells. As a result, the assembled pouch cell delivers a reversible maximum capacity of 92 mAh g–1 at 0.1 A g–1, corresponding to a total capacity of 0.92 Ah, approaching the theoretical design capacity. This work inspires the design of all-organic proton batteries and promotes practical application of COFs in the future.

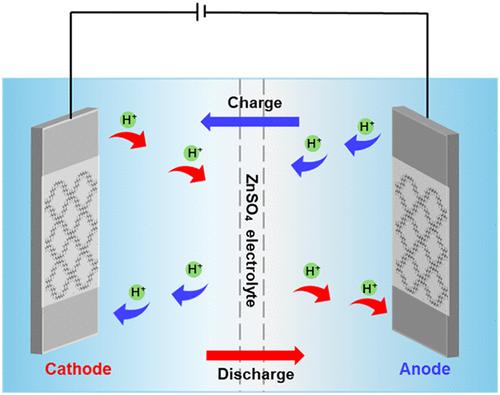

Abstract Image

用可扩展通量合成乙烯链共价有机骨架构建对称全有机质子电池。
对称全有机电池的设计和组装,消除了对不同阴极/阳极材料的需求,同时保持相当的能量存储性能,一直是一个备受追捧的目标,但几乎没有实现高容量和长期稳定性。本文采用通量合成方法设计并合成了两个吡嗪[2,3-g]喹诺啉核心基乙烯连接共价有机框架(COFs),由于相邻C = N基团的化学环境不同,具有两步氧化还原反应,制备了对称的全有机质子电池,并通过机理研究证实了这一点。组装的cof基全有机电池表现出优异的性能,具有良好的比容量(0.1 A g-1时147 mAh g-1)和最大能量密度(87 Wh/kg),在高电流密度下循环超过5000次,是目前报道的全有机质子电池中最好的。通量合成方法促进了COFs的克级生产,使其能够成功组装成功能袋细胞。因此,组装的袋状电池在0.1 a g-1时提供了92 mAh g-1的可逆最大容量,对应于0.92 Ah的总容量,接近理论设计容量。这项工作对全有机质子电池的设计具有启发意义,并促进了COFs在未来的实际应用。
