Structure and Mechanical Properties of Thick Vacuum TiC Condensates Obtained by Electron Beam Evaporation

IF 1.2 4区材料科学 Q4 MATERIALS SCIENCE, MULTIDISCIPLINARY

Journal of Superhard Materials Pub Date : 2025-07-20 DOI:10.3103/S1063457625030025

V. G. Grechanyuk, O. V. Matsenko, A. V. Kozyrev, І. M. Grechanyuk, V. O. Shapovalov

引用次数: 0

Abstract

This study investigates the feasibility of producing thick condensed TiC-based materials through high-rate electron-beam evaporation–condensation of graphite and titanium in vacuum. The research determines the dependences of density, porosity, and microhardness of both as-deposited and annealed condensates, subjected to a temperature of 1000°C, on the substrate temperature. The analysis of mechanical properties as a function of carbon content in TiC condensates demonstrates that the flexural strength reaches its maximum at a carbon concentration of 12–14 wt %, while microhardness peaks at 18–20 wt %.

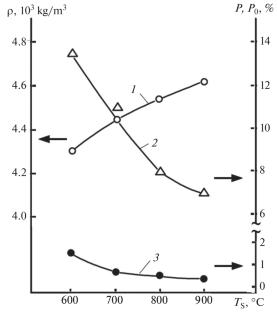

Abstract Image

查看原文本刊更多论文

电子束蒸发制备厚真空TiC凝聚体的结构和力学性能

研究了石墨和钛在真空中高速电子束蒸发冷凝制备厚凝tic基材料的可行性。该研究确定了沉积态和退火态冷凝物的密度、孔隙率和显微硬度对基体温度的依赖性，温度为1000℃。力学性能随TiC凝聚物含碳量的变化分析表明，在碳浓度为12-14 wt %时，弯曲强度达到最大值，而显微硬度在18-20 wt %时达到峰值。
