Study the Radiation Effect on the Photovoltaic Properties of Silicon Heterojunction Solar Cells

Abstract

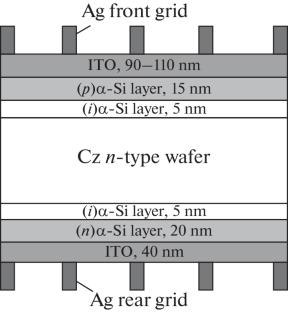

In this work, influence of electron irradiation on the photovoltaic properties of n-type silicon heterojunction solar cells has been investigated. It has been shown that when irradiated with electrons with a fluence of 5 × 10¹⁴ cm^–2, a significant decrease in the quantum efficiency occurs at wavelengths of more than 600 nm, leading to a decrease in the short-circuit current from 33.1 to 22 mA/cm² and the open-circuit voltage from 0.68 to 0.53 V, and at a fluence of 1 × 10¹⁵ cm^–2 up to 18.25 mA/cm² and 0.51 V, respectively. Also, from the load current-voltage characteristics, the values of the surface recombination velocity are ~16 cm/s before irradiation, ~500 cm/s at 5 × 10¹⁴ cm^–2 and 580 cm/s at 1 × 10¹⁵ cm^–2 have been calculated. Using the admittance spectroscopy, a defect with an activation energy of 0.18 eV and capture cross section of σ_n = 5 × 10^–15 cm² was detected in irradiated structures, which may probably be responsible for this behavior of characteristics, its concentration increases with increasing fluence.
