{"title":"trans-Bis[2-(pyrimidin-2-yl)ethynyl]bis(triphenylphosphine)palladium","authors":"Eric Bosch","doi":"10.1107/S2414314625006364","DOIUrl":null,"url":null,"abstract":"<div><div>The the title compound, isolated after a Sonogashira coupling reaction, crystallizes in the monoclinic space group <em>C</em>2/<em>c</em>.</div></div><div><div>The title palladium complex, [Pd(C<sub>6</sub>H<sub>3</sub>N<sub>2</sub>)<sub>2</sub>(C<sub>18</sub>H<sub>15</sub>P)<sub>2</sub>], was isolated as an impurity that co-eluted with the organic product of a palladium-catalyzed Sonogashira coupling. It crystallizes in the monoclinic space group <em>C</em>2/<em>c</em> with one half of the complex in the asymmetric unit. The palladium atom (site symmetry <blockquote><div><figure><img></figure></div></blockquote>) has a square-planar geometry with <em>trans</em> phosphine ligands. The P—Pd—C angle is 95.19 (9)°.<blockquote><div><span><figure><span><img><ol><li><span><span>Download: <span>Download high-res image (287KB)</span></span></span></li><li><span><span>Download: <span>Download full-size image</span></span></span></li></ol></span></figure></span></div></blockquote></div></div>","PeriodicalId":94324,"journal":{"name":"IUCrData","volume":"10 8","pages":""},"PeriodicalIF":0.0000,"publicationDate":"2025-08-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"IUCrData","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S2414314625000781","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"","JCRName":"","Score":null,"Total":0}
引用次数: 0
Abstract
The the title compound, isolated after a Sonogashira coupling reaction, crystallizes in the monoclinic space group C2/c.

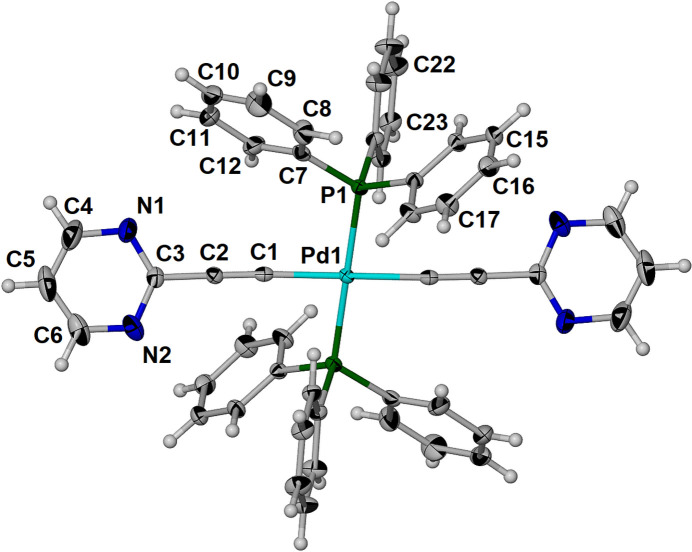

The title palladium complex, [Pd(C6H3N2)2(C18H15P)2], was isolated as an impurity that co-eluted with the organic product of a palladium-catalyzed Sonogashira coupling. It crystallizes in the monoclinic space group C2/c with one half of the complex in the asymmetric unit. The palladium atom (site symmetry
) has a square-planar geometry with trans phosphine ligands. The P—Pd—C angle is 95.19 (9)°.
