A novel method to simulate radiographs of 3D printed objects

IF 2.2 4区医学 Q3 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING

Journal of Applied Clinical Medical Physics Pub Date : 2025-08-03 DOI:10.1002/acm2.70159

Maxwell C. Campbell, Steven I. Pollmann, Jaques S. Milner, Emily A. Lalone, David W. Holdsworth

{"title":"A novel method to simulate radiographs of 3D printed objects","authors":"Maxwell C. Campbell, Steven I. Pollmann, Jaques S. Milner, Emily A. Lalone, David W. Holdsworth","doi":"10.1002/acm2.70159","DOIUrl":null,"url":null,"abstract":"<div>\n \n \n <section>\n \n <h3> Background</h3>\n \n <p>3D printing has a number of applications within medicine and healthcare. In applications involving radiography, the internal infill structure and external geometry of a 3D printed part can produce undesirable artifacts, limiting the full potential of 3D printing as a manufacturing technology. While the mechanical performance of a 3D printed part can be easily simulated, it is difficult to simulate the radiographic artifact produced.</p>\n </section>\n \n <section>\n \n <h3> Purpose</h3>\n \n <p>The purpose of this work was to develop a tool that allows users to simulate the radiographic artifact produced by a 3D printed object.</p>\n </section>\n \n <section>\n \n <h3> Methods</h3>\n \n <p>Three regular hexagons of identical geometry were sliced and 3D printed using polylactic acid (PLA) filament on a fused deposition modeling (FDM) 3D printer with varying infill patterns: rectilinear grid, cubic, and gyroid. The hexagons were then radiographed using clinical-standard scanning protocols. The captured radiographs were compared to simulated radiographs generated using the G-Code developed when the objects were sliced. The physical and simulated virtual radiographs were compared to one another, and the simulated angle of least and greatest artifact was noted.</p>\n </section>\n \n <section>\n \n <h3> Results</h3>\n \n <p>Strong visual agreement was found between the physically captured and simulated virtual radiographs. The projection angles that produced the least amount of artifact were 22.5°, 22.5°, and 12.25° for grid, cubic, and gyroid infills, respectively. The projection angles that produced the greatest amount of artifact were 0°, 45°, and 45° for grid, cubic, and gyroid infills, respectively.</p>\n </section>\n \n <section>\n \n <h3> Conclusions</h3>\n \n <p>This work provides designers of 3D printed components with a new way to evaluate a design's radiographic performance. Previously, designers would have to physically print and radiograph a part to determine the artifact produced. This work outlines the development of a tool that simulates the radiograph of a 3D printed part from multiple different projections, saving designers time to iterate to their final design.</p>\n </section>\n </div>","PeriodicalId":14989,"journal":{"name":"Journal of Applied Clinical Medical Physics","volume":"26 8","pages":""},"PeriodicalIF":2.2000,"publicationDate":"2025-08-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://onlinelibrary.wiley.com/doi/epdf/10.1002/acm2.70159","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Applied Clinical Medical Physics","FirstCategoryId":"3","ListUrlMain":"https://aapm.onlinelibrary.wiley.com/doi/10.1002/acm2.70159","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Background

3D printing has a number of applications within medicine and healthcare. In applications involving radiography, the internal infill structure and external geometry of a 3D printed part can produce undesirable artifacts, limiting the full potential of 3D printing as a manufacturing technology. While the mechanical performance of a 3D printed part can be easily simulated, it is difficult to simulate the radiographic artifact produced.

Purpose

The purpose of this work was to develop a tool that allows users to simulate the radiographic artifact produced by a 3D printed object.

Methods

Three regular hexagons of identical geometry were sliced and 3D printed using polylactic acid (PLA) filament on a fused deposition modeling (FDM) 3D printer with varying infill patterns: rectilinear grid, cubic, and gyroid. The hexagons were then radiographed using clinical-standard scanning protocols. The captured radiographs were compared to simulated radiographs generated using the G-Code developed when the objects were sliced. The physical and simulated virtual radiographs were compared to one another, and the simulated angle of least and greatest artifact was noted.

Results

Strong visual agreement was found between the physically captured and simulated virtual radiographs. The projection angles that produced the least amount of artifact were 22.5°, 22.5°, and 12.25° for grid, cubic, and gyroid infills, respectively. The projection angles that produced the greatest amount of artifact were 0°, 45°, and 45° for grid, cubic, and gyroid infills, respectively.

Conclusions

This work provides designers of 3D printed components with a new way to evaluate a design's radiographic performance. Previously, designers would have to physically print and radiograph a part to determine the artifact produced. This work outlines the development of a tool that simulates the radiograph of a 3D printed part from multiple different projections, saving designers time to iterate to their final design.

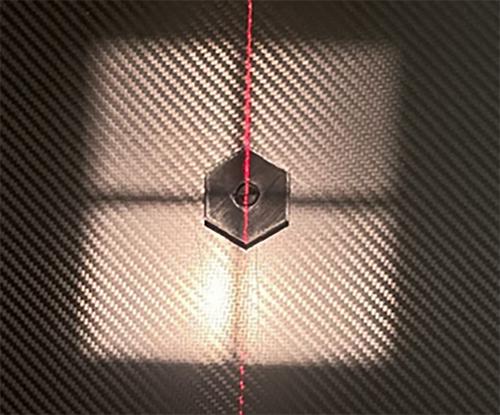

Abstract Image
