GenECG: a synthetic image-based ECG dataset to augment artificial intelligence-enhanced algorithm development.

Abstract

Objectives: An image-based ECG dataset incorporating visual imperfections common to paper-based ECGs, which are typically scanned or photographed into electronic health records, could facilitate clinically useful artificial intelligence (AI)-ECG algorithm development. This study aimed to create a high-fidelity, synthetic image-based ECG dataset.

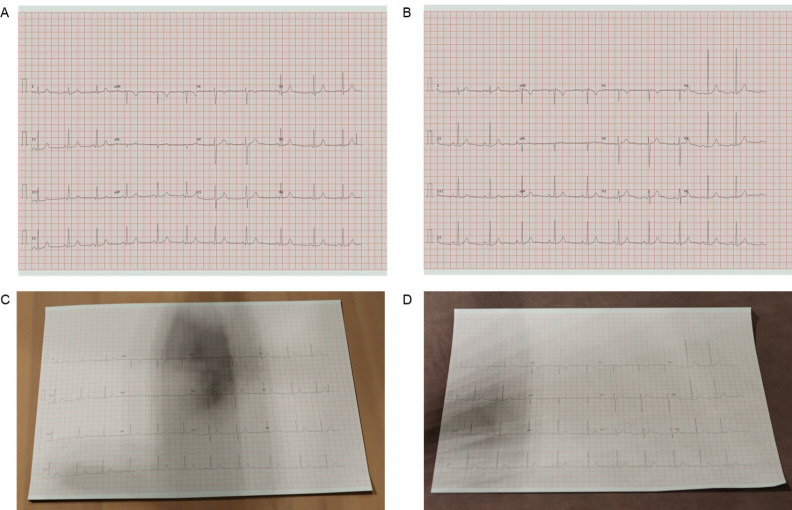

Methods: ECG images were recreated from the PTB-XL database, a signal-based dataset and image manipulation techniques were applied to mimic imperfections associated with ECGs in real-world settings. Clinical Turing tests were conducted to evaluate the fidelity of the synthetic images, and the performance of current AI-ECG algorithms was assessed using synthetic images containing visual imperfections.

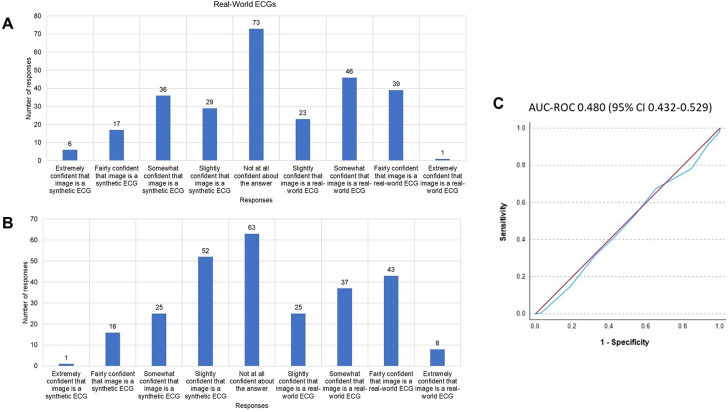

Results: GenECG, an image-based dataset containing 21 799 ECGs with visual imperfections encountered in routine clinical care paired with imperfection-free images, was created. Turing tests confirmed the realism of the images: expert observer accuracy of discrimination between real-world and synthetic ECGs fell from 63.9% (95% CI 58.0% to 69.8%) to 53.3% (95% CI 48.6% to 58.1%) over three rounds of testing, indicating that observers could not distinguish between synthetic and real ECGs. The performance of pre-existing algorithms on synthetic (area under the curve (AUC) 0.592, 95% CI 0.421 to 0.763) and real-world (AUC 0.647, 95% CI 0.520 to 0.774) ECG images containing imperfections was limited. Algorithm fine-tuning with GenECG data improved real-world ECG classification accuracy (AUC 0.821, 95% CI 0.730 to 0.913) demonstrating its potential to augment image-based algorithm development.

Discussion/conclusion: GenECG is the first synthetic image-based ECG dataset to pass a clinical Turing test. The dataset will enable image-based AI-ECG algorithm development, ensuring utility in low resource areas, prehospital settings and hospital environments where signal data are unavailable.
