Investigation of the structural properties and corrosion behavior of few-layered graphene reinforced Al-Zn matrix P/M composites

IF 3.3 3区化学 Q2 CHEMISTRY, INORGANIC & NUCLEAR

Solid State Sciences Pub Date : 2025-05-22 DOI:10.1016/j.solidstatesciences.2025.107980

Gökçe Borand , Berk Şenyurt , Duygu Ağaoğulları , Deniz Uzunsoy , Nazlı Akçamlı

{"title":"Investigation of the structural properties and corrosion behavior of few-layered graphene reinforced Al-Zn matrix P/M composites","authors":"Gökçe Borand , Berk Şenyurt , Duygu Ağaoğulları , Deniz Uzunsoy , Nazlı Akçamlı","doi":"10.1016/j.solidstatesciences.2025.107980","DOIUrl":null,"url":null,"abstract":"<div><div>A powder metallurgical production route was employed to produce Al-7.5 wt% Zn matrix composites reinforced with few-layered graphene (FLG). The in-house synthesized FLG by the electric arc discharge (EAD) method was incorporated into the Al-7.5Zn matrix through mechanical alloying (MA) in varying amounts (0, 0.5, 1.0, and 2.0 wt%). The mechanically alloyed (MAed) powders were consolidated by uniaxial pressing, and they were subjected to pressureless sintering at 635 °C for 2 h. The effects of FLG contents (0, 0.5, 1, and 2 wt%) and MA duration (0, 2, 4, and 8 h) were investigated regarding the microstructural, mechanical, tribological, and corrosion properties of bulk composites. The hardness values of 4 h MAed FLG/Al-7.5Zn composites having graphene in amounts of 0, 0.5, 1, and 2 wt% were determined as 77, 89, 107, and 119 HV, respectively. Compared to Al-7.5Zn alloy, 2 wt% FLG addition significantly increased the hardness of 4 h MAed Al-7.5Zn composites by approximately 54 %. In line with the hardness results, the addition of FLG notably and gradually enhanced the wear resistance of the composites. The Al-7.5Zn matrix displayed an ultimate compressive strength (σ<sub>ucs</sub>) of 180 MPa, which significantly rose to 287 MPa for the Al-7.5Zn-1FLG composite, indicating a 1.6-times enhancement. Moreover, the addition of this amount of graphene did not degrade the corrosion performance of the Al-Zn matrix; in fact, it resulted in a slight improvement in the corrosion resistance of the composites.</div></div>","PeriodicalId":432,"journal":{"name":"Solid State Sciences","volume":"167 ","pages":"Article 107980"},"PeriodicalIF":3.3000,"publicationDate":"2025-05-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Solid State Sciences","FirstCategoryId":"92","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S129325582500158X","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}

引用次数: 0

Abstract

A powder metallurgical production route was employed to produce Al-7.5 wt% Zn matrix composites reinforced with few-layered graphene (FLG). The in-house synthesized FLG by the electric arc discharge (EAD) method was incorporated into the Al-7.5Zn matrix through mechanical alloying (MA) in varying amounts (0, 0.5, 1.0, and 2.0 wt%). The mechanically alloyed (MAed) powders were consolidated by uniaxial pressing, and they were subjected to pressureless sintering at 635 °C for 2 h. The effects of FLG contents (0, 0.5, 1, and 2 wt%) and MA duration (0, 2, 4, and 8 h) were investigated regarding the microstructural, mechanical, tribological, and corrosion properties of bulk composites. The hardness values of 4 h MAed FLG/Al-7.5Zn composites having graphene in amounts of 0, 0.5, 1, and 2 wt% were determined as 77, 89, 107, and 119 HV, respectively. Compared to Al-7.5Zn alloy, 2 wt% FLG addition significantly increased the hardness of 4 h MAed Al-7.5Zn composites by approximately 54 %. In line with the hardness results, the addition of FLG notably and gradually enhanced the wear resistance of the composites. The Al-7.5Zn matrix displayed an ultimate compressive strength (σ_ucs) of 180 MPa, which significantly rose to 287 MPa for the Al-7.5Zn-1FLG composite, indicating a 1.6-times enhancement. Moreover, the addition of this amount of graphene did not degrade the corrosion performance of the Al-Zn matrix; in fact, it resulted in a slight improvement in the corrosion resistance of the composites.

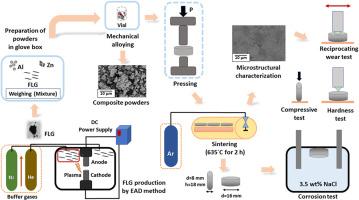

Abstract Image

查看原文本刊更多论文

石墨烯增强Al-Zn基P/M复合材料的结构性能和腐蚀行为研究

采用粉末冶金工艺制备了Al-7.5 wt% Zn基少层石墨烯增强复合材料。利用电弧放电（EAD）方法合成的FLG通过机械合金化（MA）以不同的量（0、0.5、1.0和2.0 wt%）掺入Al-7.5Zn基体中。机械合金（MAed）粉末通过单轴压实，在635°C下进行无压烧结2小时。研究了FLG含量（0、0.5、1和2 wt%）和MA持续时间（0、2、4和8 h）对块体复合材料显微组织、力学、摩擦学和腐蚀性能的影响。石墨烯含量为0、0.5、1和2 wt%的FLG/Al-7.5Zn复合材料在4 h MAed后的硬度值分别为77、89、107和119 HV。与Al-7.5Zn合金相比，添加2 wt% FLG可显著提高4h MAed Al-7.5Zn复合材料的硬度约54%。与硬度结果一致，FLG的加入显著且逐渐增强了复合材料的耐磨性。Al-7.5Zn- 1flg复合材料的极限抗压强度（σucs）为180 MPa，而Al-7.5Zn- 1flg复合材料的极限抗压强度达到287 MPa，提高1.6倍。此外，加入一定量的石墨烯并没有降低Al-Zn基体的腐蚀性能；事实上，它导致复合材料的耐腐蚀性略有改善。
